Direct Duct Fan

Direct Duct Fan

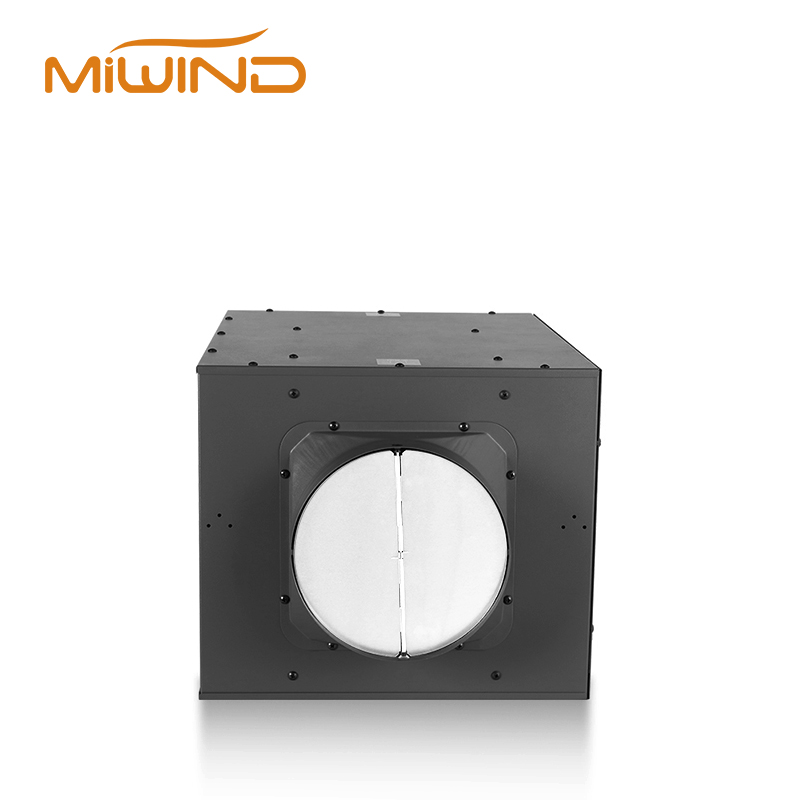

All-metal or high-strength ABS housing, sturdy and durable, resistant to deformation and sagging

Model Direct Duct Fan

Core Parameters

Duct DiametersΦ100 / Φ125 / Φ150 / Φ200 / Φ250 / Φ315 mm Air Volume Range120 – 1900 m³/h (depending on model) Motor Power22 – 260 W (depending on model) Noise Level20 – 65 dB(A) (depending on model)

Key Features

All-metal or high-strength ABS housing, sturdy and durable, resistant to deformation and sagging Pure copper motor with high-quality ball bearings for low noise and stable airflow Compact and simple structure for easy installation and maintenance Multi-speed control (Hi/Low) for flexible adaptation to different ventilation needs

Applications

Home rooms

Home rooms

Office ventilation

Office ventilation

Small retail shops

Small retail shops

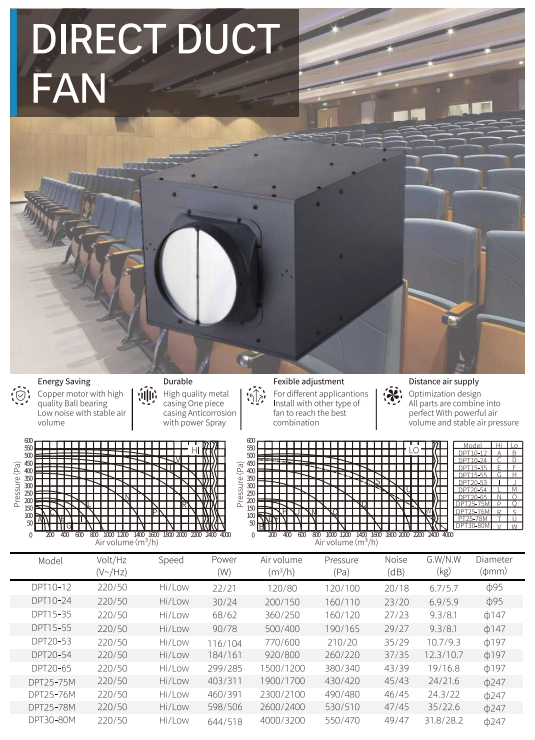

Technical Parameters

Model Volt / Hz (V~/Hz) Speed Power (W) Air Volume (m³/h) Pressure (Pa) Noise (dB) G.W / N.W (kg) Diameter (mm)
DPT10-12220/50Hi/Low22/21120/80120/10020/186.7/5.7Φ95
DPT10-24220/50Hi/Low30/24200/150160/11023/206.9/5.9Φ95
DPT15-35220/50Hi/Low68/62360/250160/12027/239.3/8.1Φ147
DPT15-55220/50Hi/Low90/78500/400190/16529/279.3/8.1Φ147
DPT20-53220/50Hi/Low116/104770/600210/2035/2910.7/9.3Φ197
DPT20-54220/50Hi/Low184/161920/800260/22037/3512.3/10.7Φ197
DPT20-65220/50Hi/Low299/2851500/1200380/34043/3919/16.8Φ197
DPT25-75M220/50Hi/Low403/3111900/1700430/42045/4324/21.6Φ247
DPT25-76M220/50Hi/Low460/3912300/2100490/48046/4524.3/22Φ247
DPT25-78M220/50Hi/Low598/5062600/2400530/51047/4535/22.6Φ247
DPT30-80M220/50Hi/Low644/5184000/3200550/47049/4731.8/28.2Φ247
