Silent Ventilation Fan

Name: Silent Ventilation Fan
SKU: MIWIND-SILENT-VENTILATION-FAN

Pure copper motor with high-quality ball bearings for low noise and stable airflow

Model Silent Ventilation Fan

Core Parameters

Duct DiameterΦ100 / Φ150 / Φ200 / Φ250 mm Air Volume Range150 – 2100 m³/h (depending on model) Motor Power29 – 280 W (depending on model) Noise Level20 – 56 dB(A) (depending on model)

Key Features

Pure copper motor with high-quality ball bearings for low noise and stable airflow All-metal one-piece housing with powder coating for rust and corrosion resistance, resistant to deformation Optimized air duct design for long-distance air delivery and stable pressure Multi-speed control, can be combined with other fan types for flexible adaptation to different scenarios

Applications

Home rooms

Office corners

Reception areas

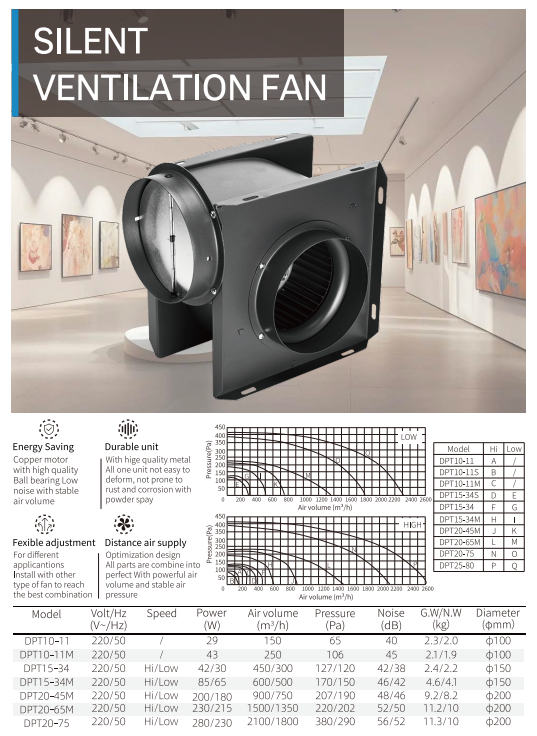

Technical Parameters

Model	Volt / Hz (V~/Hz)	Speed	Power (W)	Air Volume (m³/h)	Pressure (Pa)	Noise (dB)	G.W / N.W (kg)	Diameter (mm)
DPT10-1	220/50	/	29	150	65	40	2.3/2.0	Φ100
DPT10-11M	220/50	/	43	250	106	45	2.1/1.9	Φ100
DPT15-34	220/50	Hi/Low	42/30	450/300	127/120	42/38	2.4/2.2	Φ150
DPT15-34M	220/50	Hi/Low	85/65	600/500	170/150	46/42	4.6/4.1	Φ150
DPT20-45M	220/50	Hi/Low	200/180	900/750	207/190	48/46	9.2/8.2	Φ200
DPT20-65M	220/50	Hi/Low	230/215	1500/1350	220/202	52/50	11.2/10	Φ200
DPT20-75	220/50	Hi/Low	280/230	2100/1800	380/290	56/52	11.3/10	Φ200
