Ultra-Thin Silence Fan
Ultra-thin body design (thickness only 126-251mm) greatly saves installation space
Model Ultra-Thin Silence Fan
Core Parameters
Duct DiameterΦ95 / Φ147 / Φ197 mm
Air Volume Range230 – 1200 m³/h (depending on model)
Motor Power52 – 135 W (depending on model)
Noise Level25 – 45 dB(A) (depending on model)
Key Features
Ultra-thin body design (thickness only 126-251mm) greatly saves installation space
Pure copper motor with high-quality bearings for quiet operation, minimum noise 25 dB(A)
All-metal one-piece housing, rust-proof and corrosion-resistant, sturdy and durable
Two-speed control, flexible installation for ceiling, wall and other applications
Request a Quote
Applications
Office corners
Small retail shops

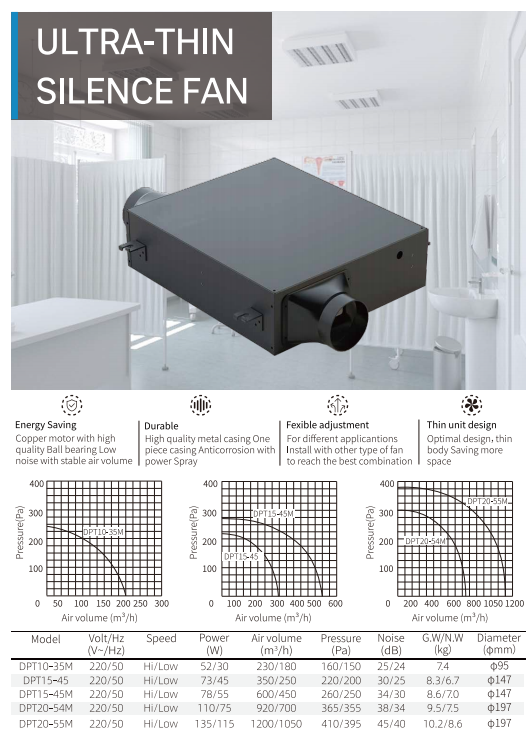

Technical Parameters
| Model | Volt/Hz (V~/Hz) | Speed | Power (W) | Air Volume (m³/h) | Pressure (Pa) | Noise (dB) | G.W/N.W (kg) | Diameter (Φmm) |
|---|---|---|---|---|---|---|---|---|
| DPT10-35M | 220/50 | Hi/Low | 52/30 | 230/180 | 160/150 | 25/24 | 7.4 | Φ95 |
| DPT15-45 | 220/50 | Hi/Low | 73/45 | 350/250 | 220/200 | 30/25 | 8.3/6.7 | Φ147 |
| DPT15-45M | 220/50 | Hi/Low | 78/55 | 600/450 | 260/250 | 34/30 | 8.6/7.0 | Φ147 |
| DPT20-54M | 220/50 | Hi/Low | 110/75 | 920/700 | 365/355 | 38/34 | 9.5/7.5 | Φ197 |
| DPT20-55M | 220/50 | Hi/Low | 135/115 | 1200/1050 | 410/395 | 45/40 | 10.2/8.6 | Φ197 |
