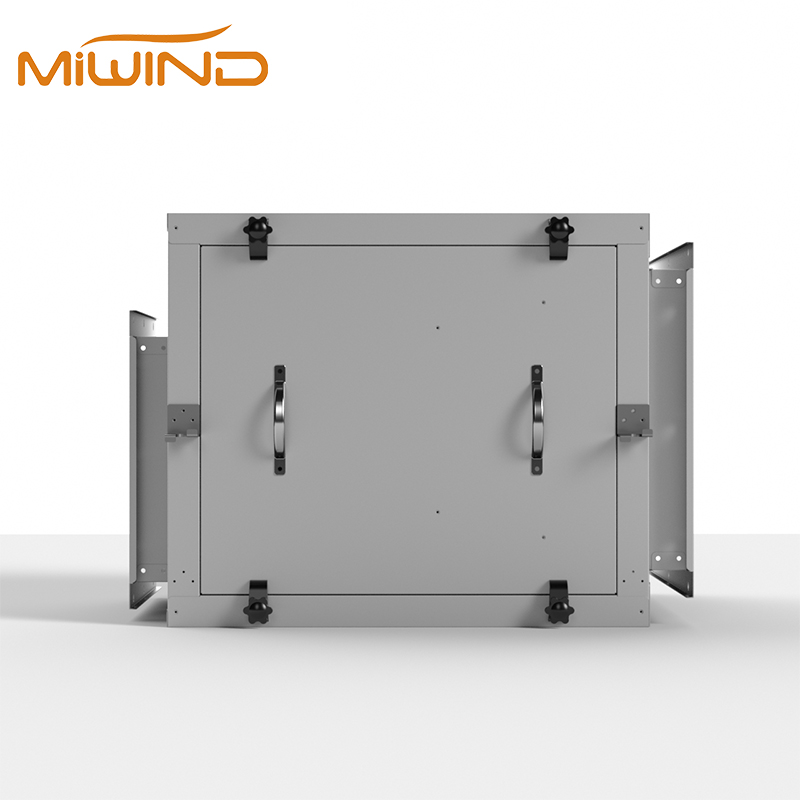

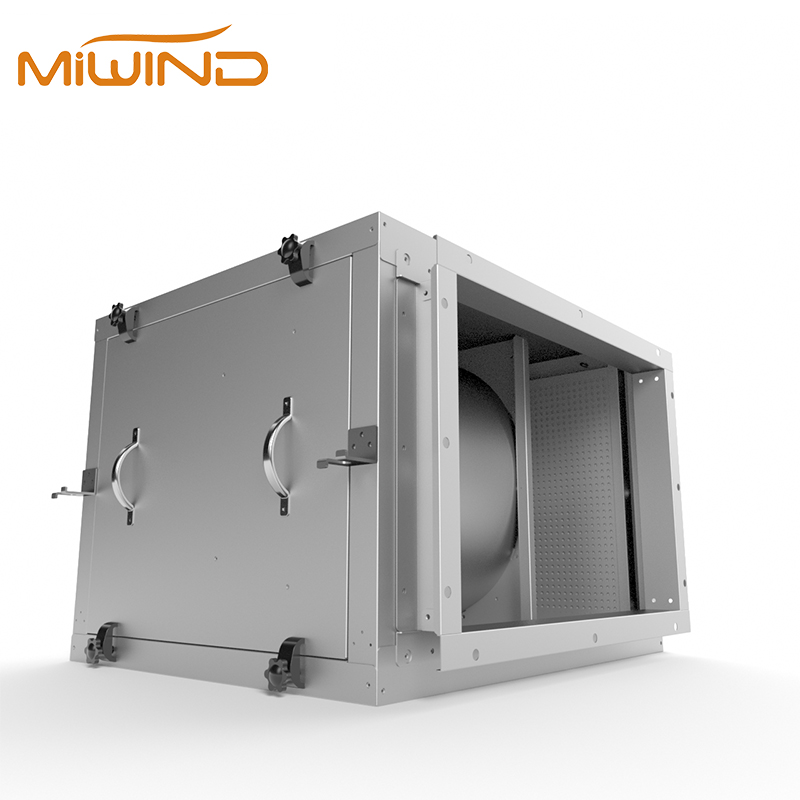

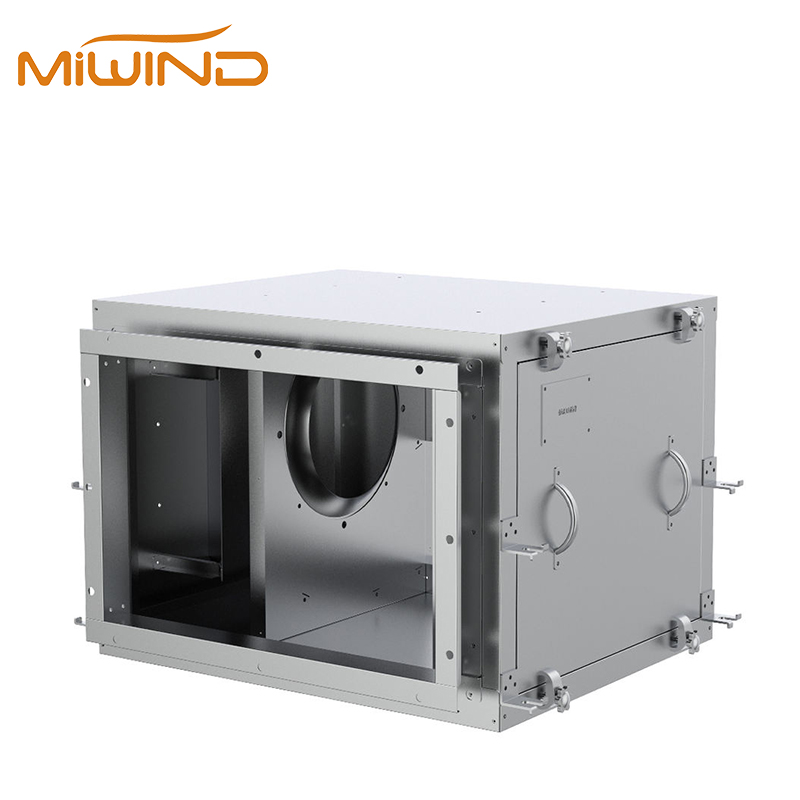

Air Cabinet Fan Series

Name: Air Cabinet Fan Series
SKU: MIWIND-AIR-CABINET-FAN-SERIES

Archimedes spiral air duct optimization for smoother airflow and more stable pressure

Model Air Cabinet Fan Series

Core Parameters

Air Volume Range2000 – 25000 m³/h (depending on model) Static Pressure Range400 – 740 Pa Motor Power780 – 7856 W (depending on model) Power Supply Options220V/50Hz or 380V/50Hz

Key Features

Archimedes spiral air duct optimization for smoother airflow and more stable pressure All-metal housing with nano-coating for rust and corrosion resistance, suitable for long-term continuous operation Pure copper motor with double ball bearings, IP54 protection rating for extended durability Tool-free access port for easy maintenance and filter replacement

Applications

Electrical cabinets

Factory

HVAC equipment rooms

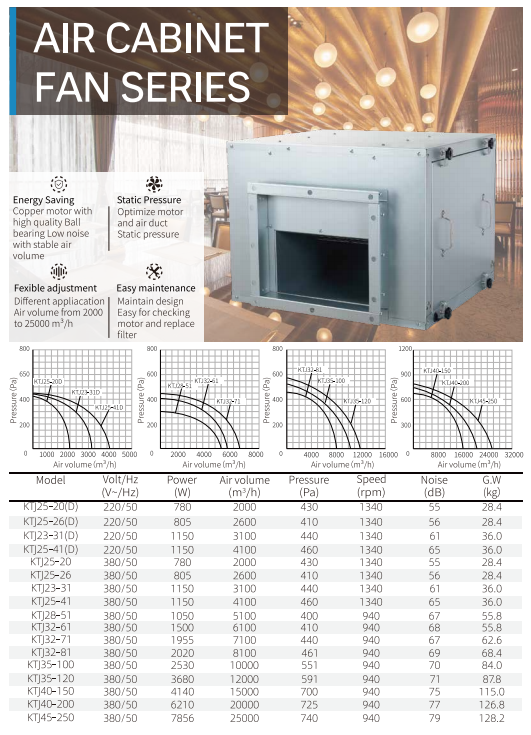

Technical Parameters

Model	Volt/Hz (V~/Hz)	Power (W)	Air Volume (m³/h)	Pressure (Pa)	Speed (rpm)	Noise (dB)	G.W (kg)
KTJ25-20(D)	220/50	780	2000	430	1340	55	28.4
KTJ25-26(D)	220/50	805	2600	410	1340	56	28.4
KTJ23-31(D)	220/50	1150	3100	440	1340	61	36.0
KTJ25-41(D)	220/50	1150	4100	460	1340	65	36.0
KTJ25-20	380/50	780	2000	430	1340	55	28.4
KTJ25-26	380/50	805	2600	410	1340	56	28.4
KTJ23-31	380/50	1150	3100	440	1340	61	36.0
KTJ25-41	380/50	1150	4100	460	1340	65	36.0
KTJ28-51	380/50	1050	5100	400	940	67	55.8
KTJ32-61	380/50	1500	6100	410	940	68	55.8
KTJ32-71	380/50	1955	7100	440	940	67	62.6
KTJ32-81	380/50	2020	8100	461	940	69	68.4
KTJ35-100	380/50	2530	10000	551	940	70	84.0
KTJ35-120	380/50	3680	12000	591	940	71	87.6
KTJ40-150	380/50	4140	15000	700	940	75	115.0
KTJ40-200	380/50	6210	20000	725	940	77	126.8
KTJ45-250	380/50	7856	25000	740	940	79	126.2
