Purified Duct Fan
Built-in multi-layer filtration system (primary + activated carbon + HEPA) effectively removes PM2.5, odors and harmful substances
Model Purified Duct Fan
Core Parameters
Duct DiameterΦ100 / Φ150 / Φ200 / Φ250 mm (based on similar models in catalog)
Air Volume Range160 – 920 m³/h (referencing DPT series purified models)
Motor Power30 – 160 W (depending on model)
Noise Level24 – 45 dB(A) (depending on model)
Key Features

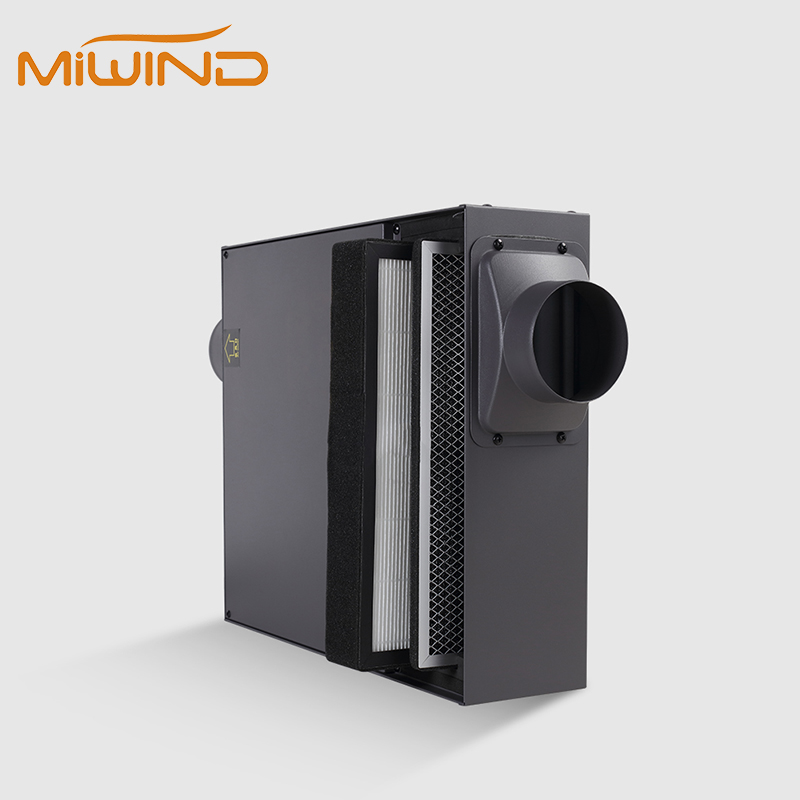

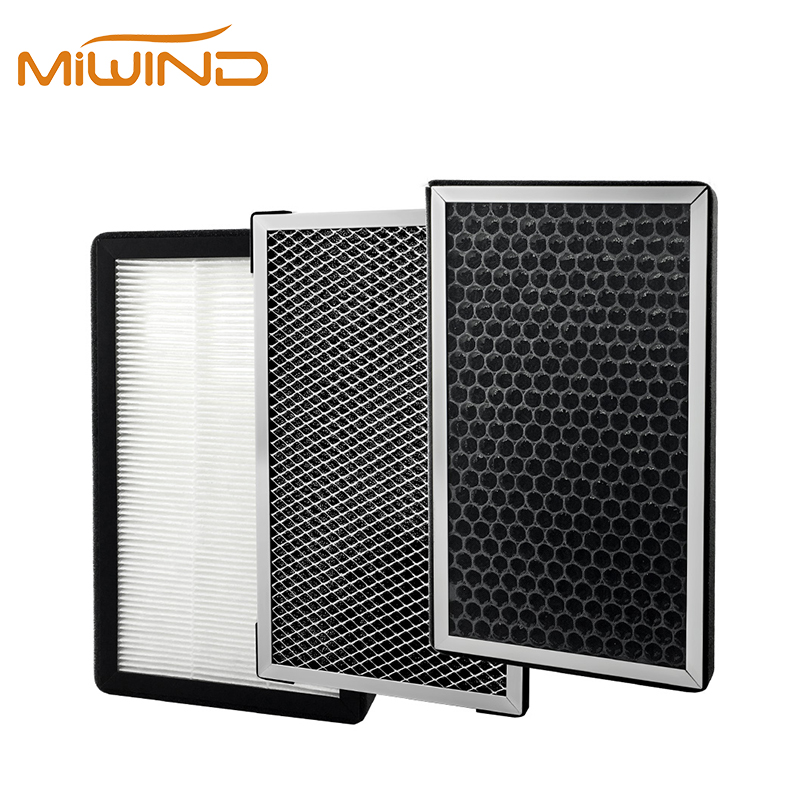

Built-in multi-layer filtration system (primary + activated carbon + HEPA) effectively removes PM2.5, odors and harmful substances

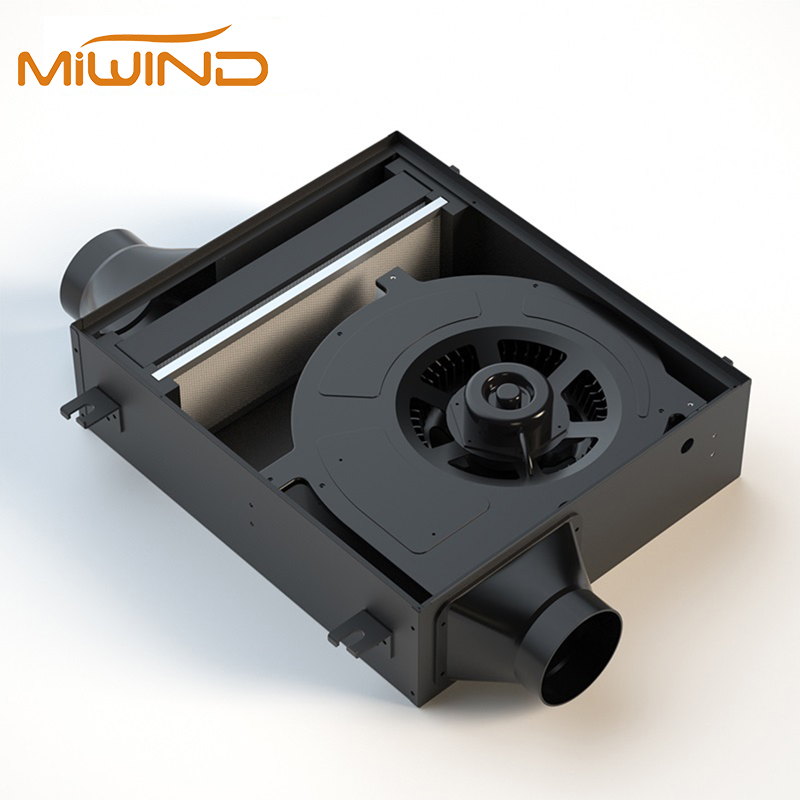

Pure copper motor with high-quality ball bearings for quiet, stable operation and long service life

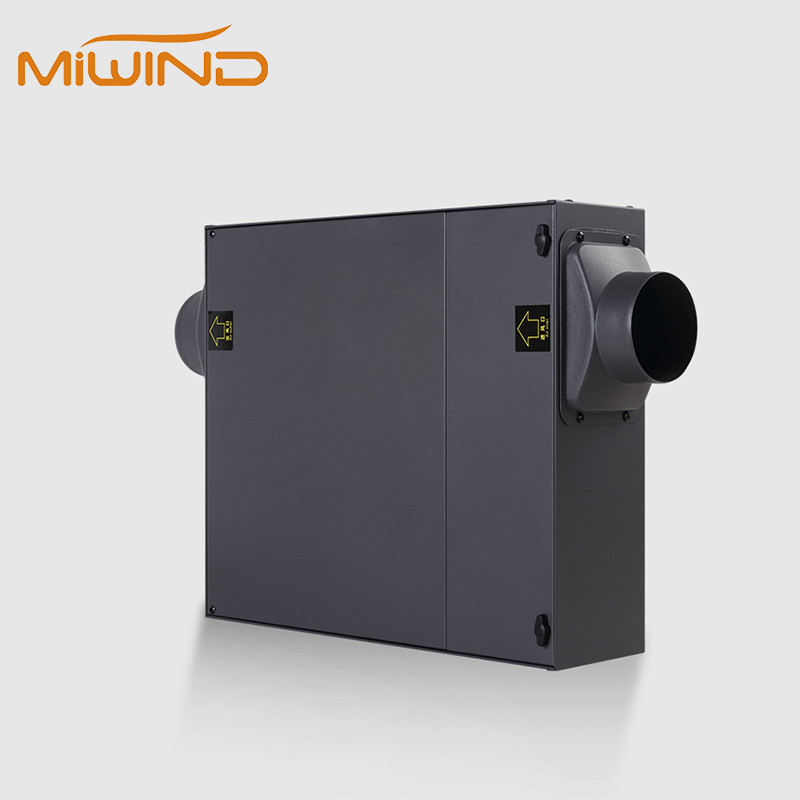

Ultra-thin body design (as thin as 125mm) saves installation space
Tool-free disassembly for easy motor inspection and filter replacement
Request a Quote
Applications
Office ventilation
Clean Room

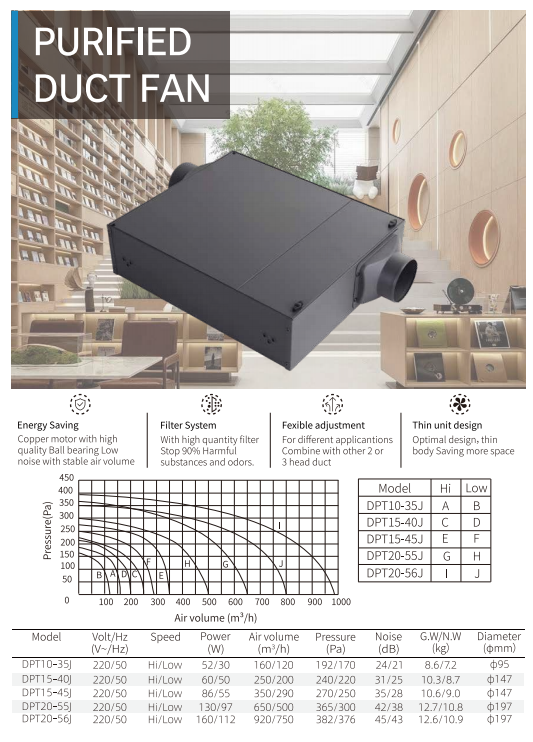

Technical Parameters
| Model | Volt / Hz (V~/Hz) | Speed | Power (W) | Air Volume (m³/h) | Pressure (Pa) | Noise (dB) | G.W / N.W (kg) | Diameter (mm) |
|---|---|---|---|---|---|---|---|---|
| DPT10-35J | 220/50 | Hi/Low | 52/30 | 160/120 | 192/170 | 24/21 | 8.6/7.2 | Φ95 |
| DPT15-40J | 220/50 | Hi/Low | 60/50 | 250/200 | 240/220 | 31/25 | 10.3/8.7 | Φ147 |
| DPT15-45J | 220/50 | Hi/Low | 86/55 | 350/290 | 270/250 | 35/28 | 10.6/9.0 | Φ147 |
| DPT20-55J | 220/50 | Hi/Low | 130/97 | 650/500 | 365/300 | 42/38 | 12.7/10.8 | Φ197 |
| DPT20-56J | 220/50 | Hi/Low | 160/112 | 920/750 | 382/376 | 45/43 | 12.6/10.9 | Φ197 |
