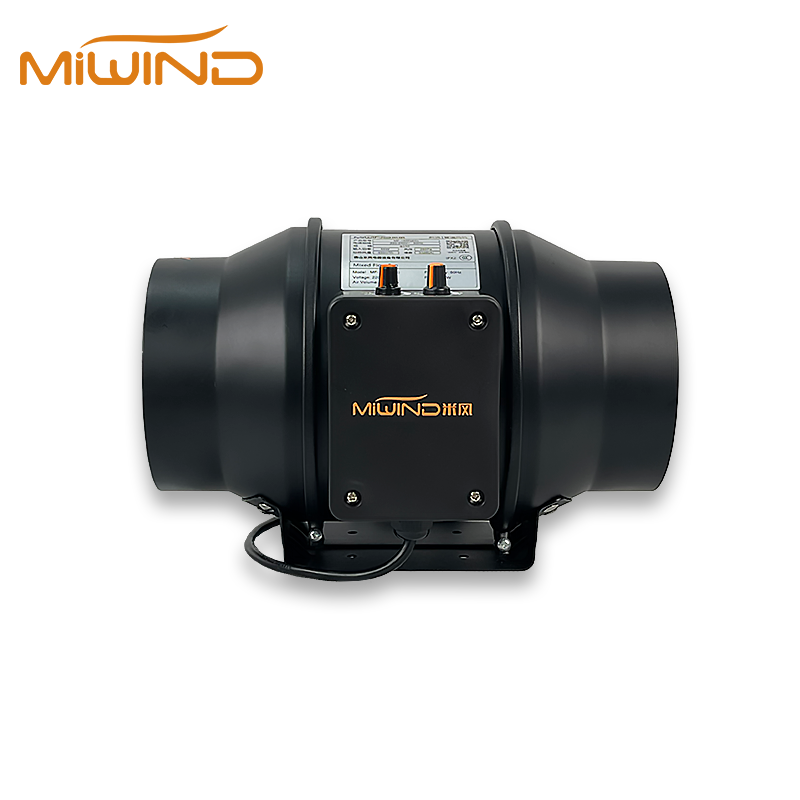

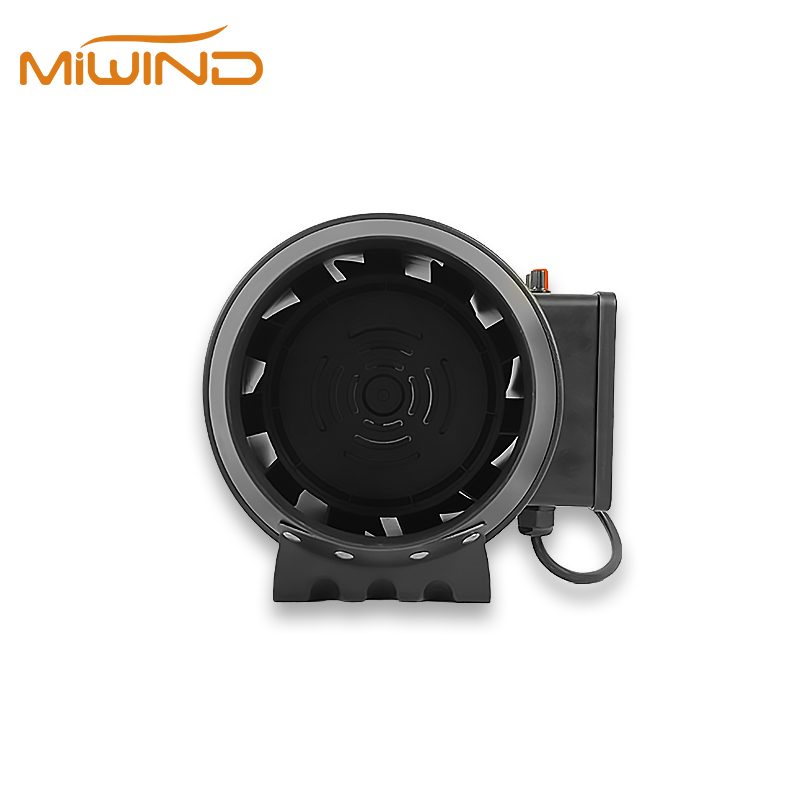

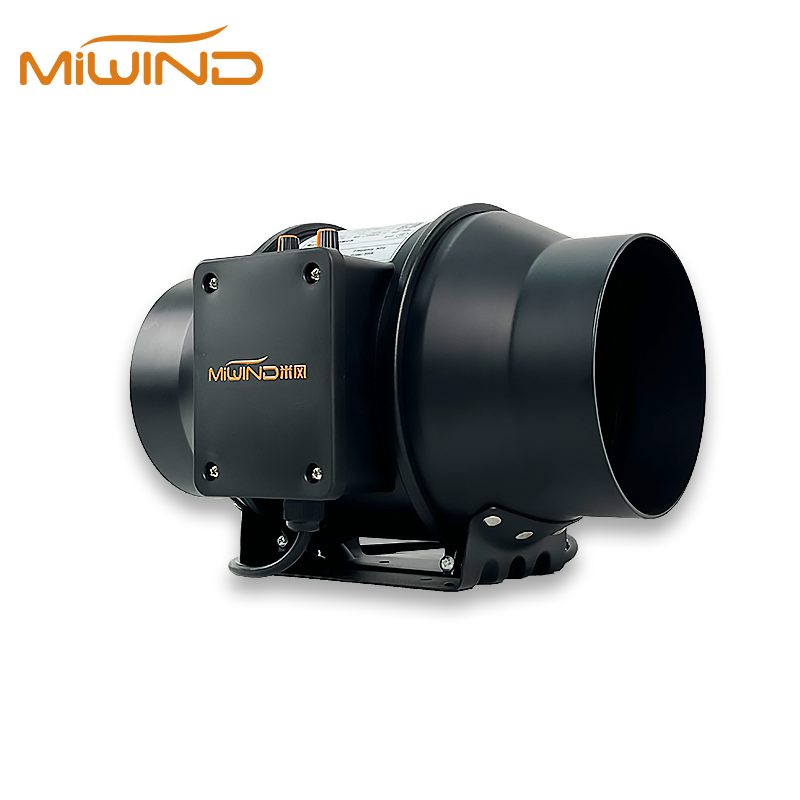

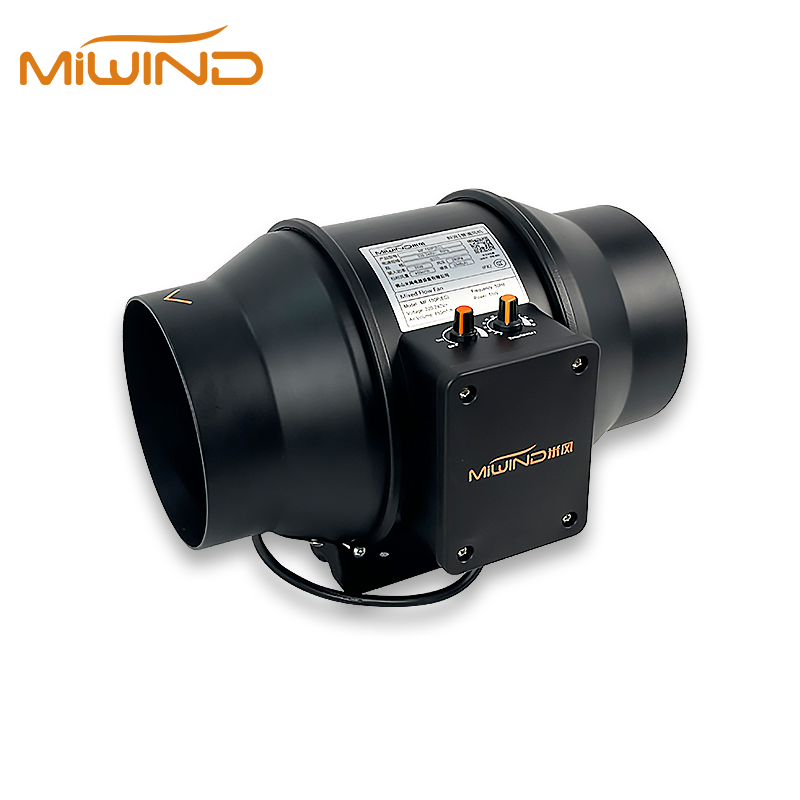

EC Inline Duct Fan
EC brushless DC motor for energy savings up to 50% compared to traditional AC motors
Model EC Inline Duct Fan
Core Parameters
Duct DiametersΦ100 / Φ150 / Φ200 mm
Air Volume Range240 – 540 m³/h (depending on model)
Motor Power37 – 50 W
Noise Level32 – 36 dB(A)
Key Features
EC brushless DC motor for energy savings up to 50% compared to traditional AC motors
Mixed-flow impeller design delivers high static pressure and large airflow
Supports PWM precise speed control with ten adjustable speeds and temperature/humidity monitoring
ABS waterproof and moisture-proof housing with IP protection rating, suitable for humid environments
Request a Quote
Applications
Commercial buildings
Office ventilation

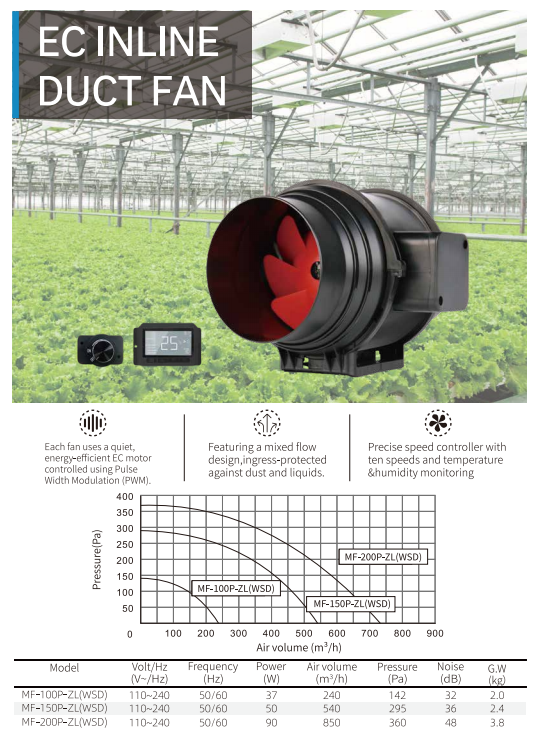

Technical Parameters
| Model | Volt/Hz (V~/Hz) | Frequency (Hz) | Power (W) | Air Volume (m³/h) | Pressure (Pa) | Noise (dB) | G.W (kg) |
|---|---|---|---|---|---|---|---|
| MF-100P-ZL(WSD) | 110~240 | 50/60 | 37 | 240 | 142 | 32 | 2.0 |
| MF-150P-ZL(WSD) | 110~240 | 50/60 | 50 | 540 | 295 | 36 | 2.4 |
| MF-200P-ZL(WSD) | 110~240 | 50/60 | 90 | 850 | 360 | 48 | 3.8 |
