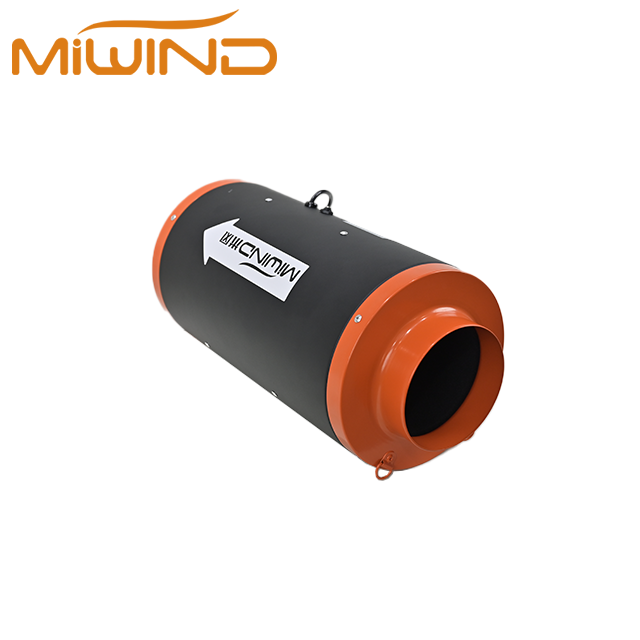

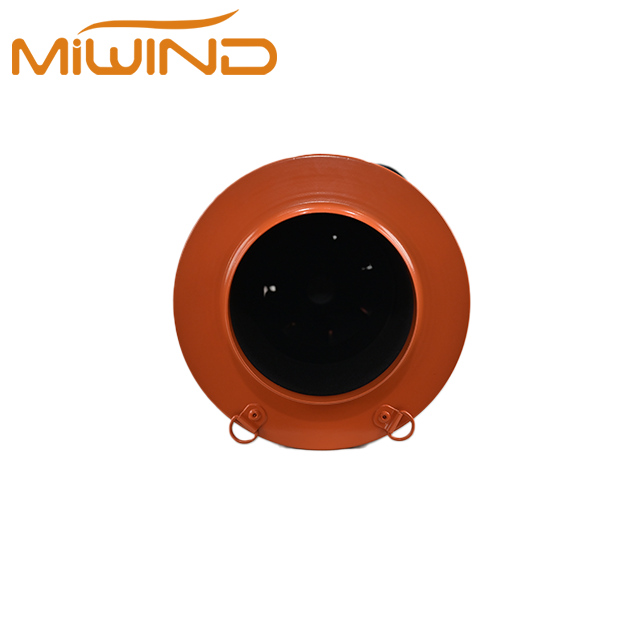

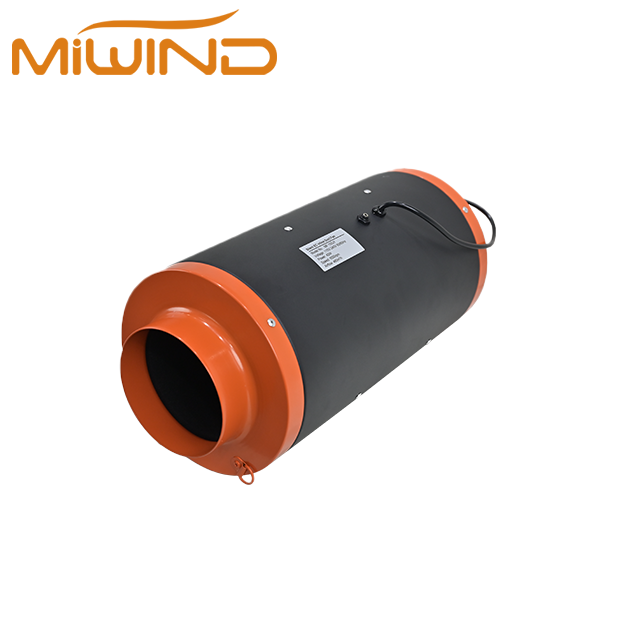

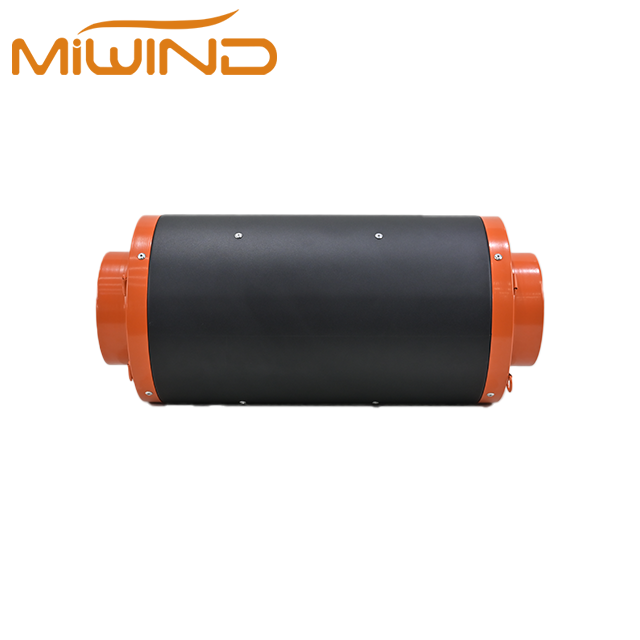

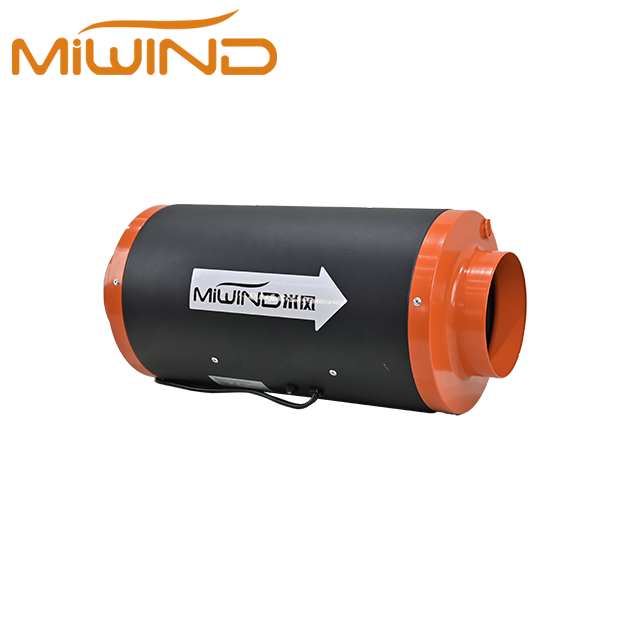

Silent Booster Mixed-Flow Inline Fans

Silent Booster Mixed-Flow Inline Fans

EC brushless motor (select models) for energy savings and stepless speed control

Model Silent Booster Mixed-Flow Inline Fans

Core Parameters

Duct DiameterΦ150 / Φ200 / Φ250 / Φ315 mm Air Volume Range480 – 2600 m³/h (depending on model) Motor Power42 – 350 W (depending on model) Noise Level41 – 72 dB(A) (depending on model)

Key Features

EC brushless motor (select models) for energy savings and stepless speed control Mixed-flow impeller design combines high airflow with high static pressure, ideal for long-duct applications Metal casing, rugged and durable, with IP45 water and dust protection Built-in sound insulation for low noise operation, suitable for noise-sensitive environments

Applications

Office ventilation

Office ventilation

Hotel back-of-house

Hotel back-of-house

HVAC duct systems

HVAC duct systems

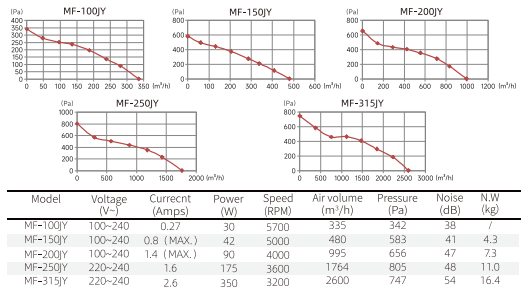

Technical Parameters

ModelVoltage (V~)Current (Amps)Power (W)Speed (RPM)Air Volume (m³/h)Pressure (Pa)Noise (dB)N.W (kg)
MF-100JY100~2400.730570033534238-
MF-150JY100~2400.8 (MAX.)425000480583414.3
MF-200Y100~2401.4 (MAX.)904000995656477.3
MF-250Y220~2401.6175360017648054811.0
MF-315JY220~2402.6350320026007475416.4

Support Documents

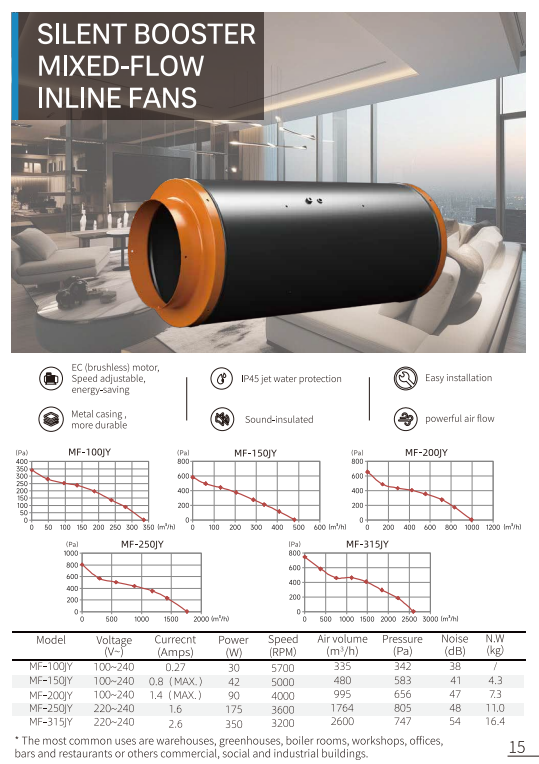

Fan catalogue and silent-series references for low-noise mixed-flow duct projects.

Solution pages for quiet environments, HVAC ducts and small commercial ventilation.
