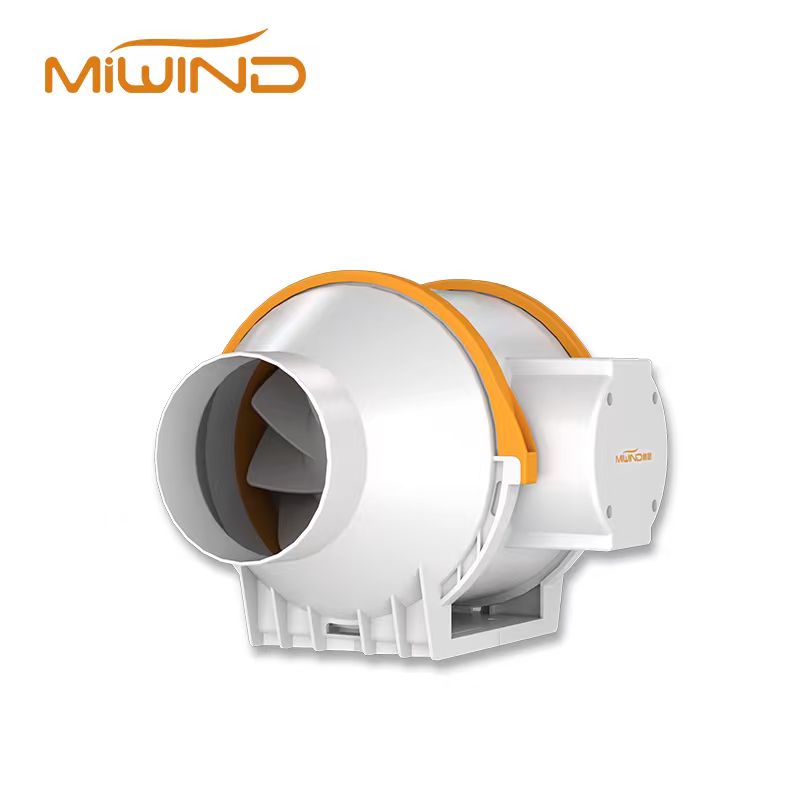

Mixed Flow Fan

Mixed Flow Fan

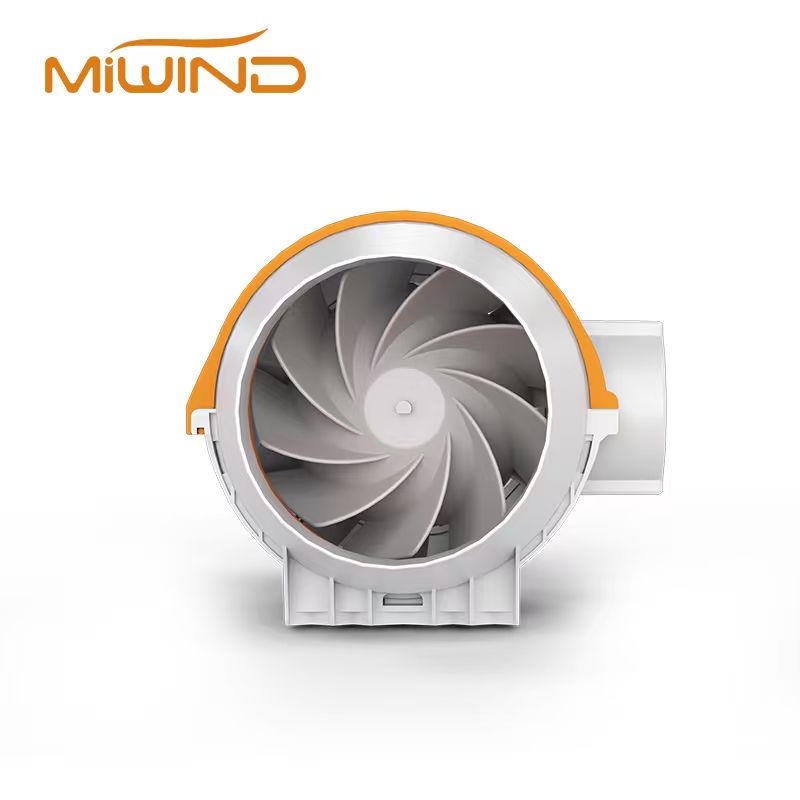

Mixed-flow impeller design combines high airflow and high static pressure, ideal for long-duct ventilation

Model Mixed Flow Fan

Core Parameters

Duct DiametersΦ100 / Φ150 / Φ200 mm Air Volume Range210 – 840 m³/h (depending on model) Static Pressure Range230 – 350 Pa Noise Level31 – 35 dB(A)

Key Features

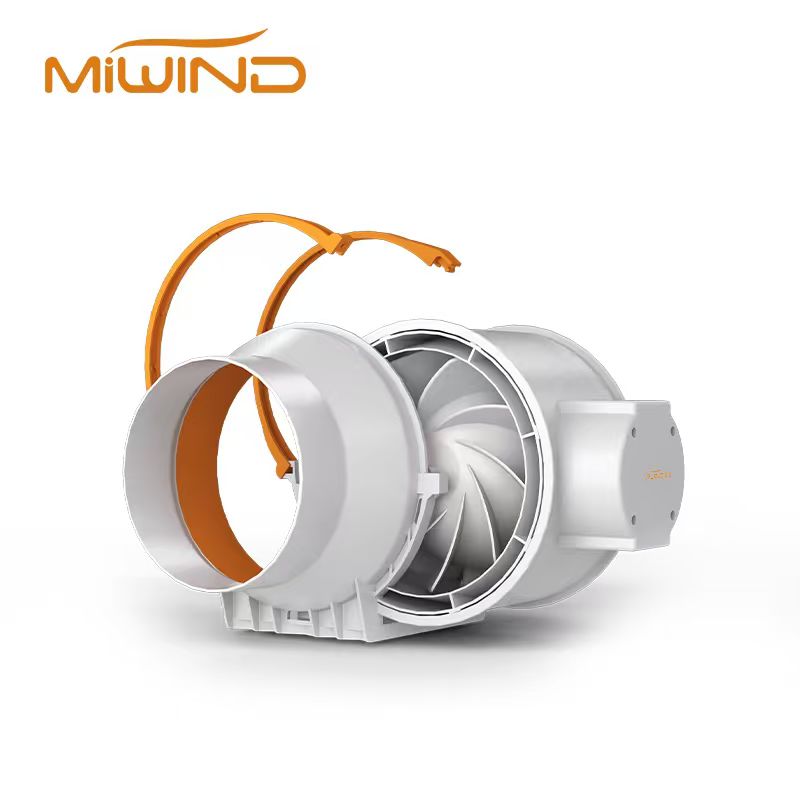

Mixed-flow impeller design combines high airflow and high static pressure, ideal for long-duct ventilation Pure copper motor with high-quality bearings for quiet operation, noise as low as 31 dB(A) Compact cylindrical body for flexible installation, compatible with existing duct systems Two-speed control (Hi/Low) for different ventilation requirements

Applications

HVAC duct systems

HVAC duct systems

Industrial ventilation

Industrial ventilation

Commercial buildings

Commercial buildings

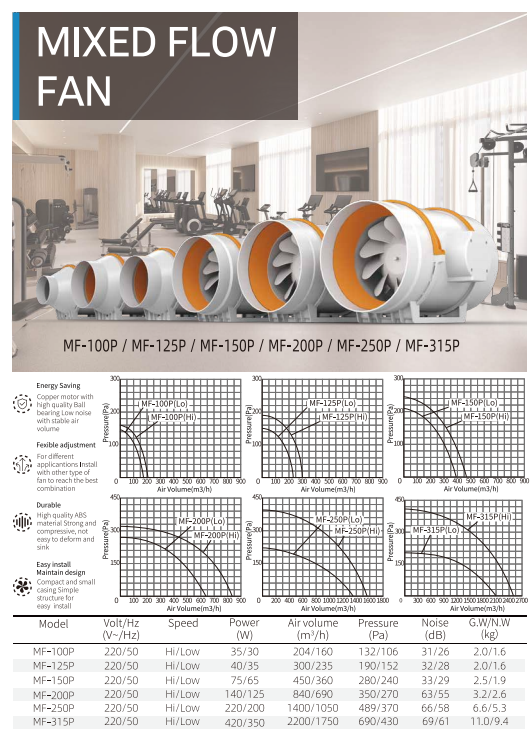

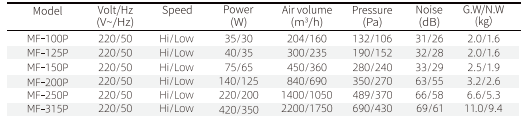

Technical Parameters

ModelVolt/Hz (V~/Hz)SpeedPower (W)Air Volume (m³/h)Pressure (Pa)Noise (dB)G.W/N.W (kg)
MF-100P220/50Hi/Low35/30204/160132/10631/262.0/1.6
MF-125P220/50Hi/Low40/35300/235190/15232/282.0/1.6
MF-150P220/50Hi/Low75/65450/360280/24033/292.5/1.9
MF-200P220/50Hi/Low140/125840/690350/27063/553.2/2.6
MF-250P220/50Hi/Low220/2001400/1050489/37066/586.6/5.3
MF-315P220/50Hi/Low420/3502200/1750690/43069/6111.0/9.4

Support Documents

Fan catalogue and ventilation references for mixed-flow duct projects.

Solution pages for industrial ventilation, HVAC duct systems and commercial buildings.
