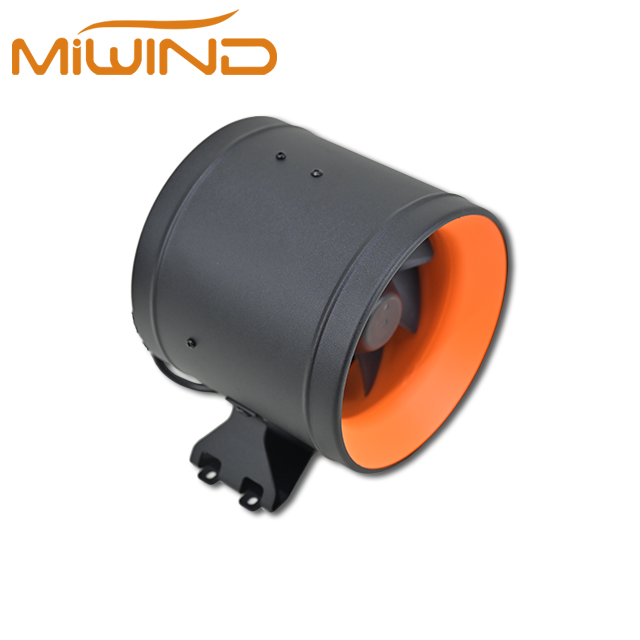

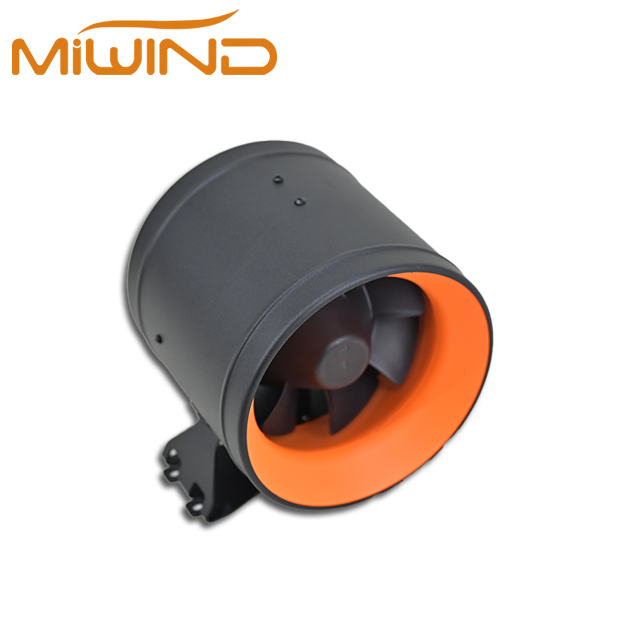

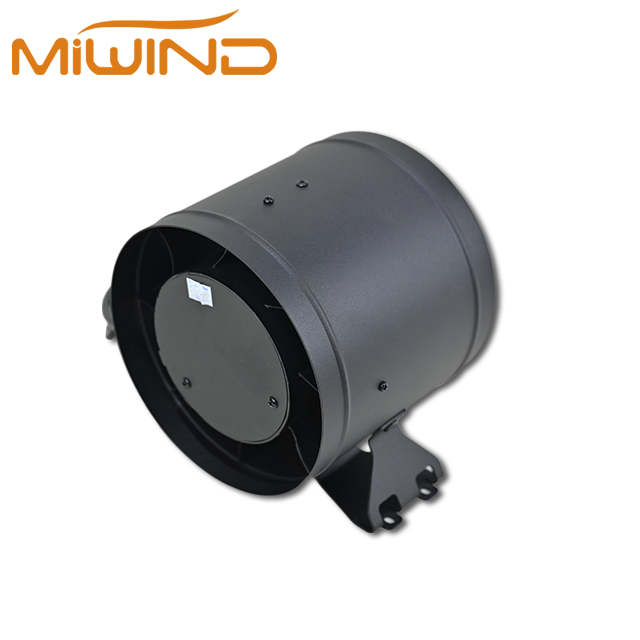

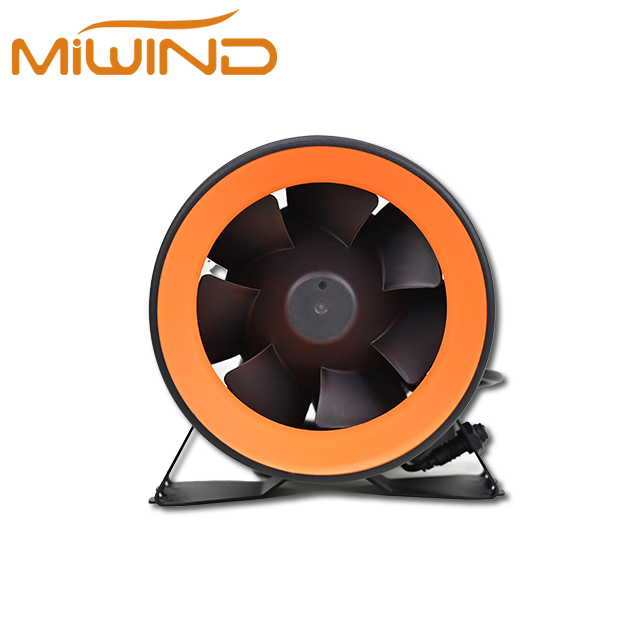

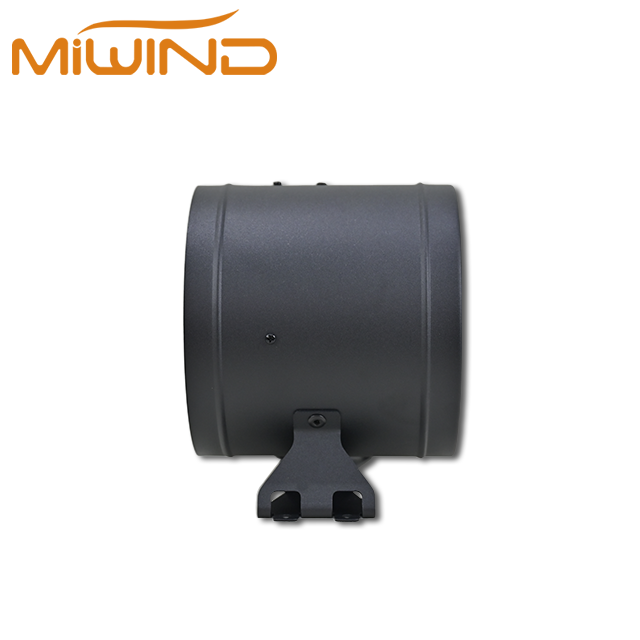

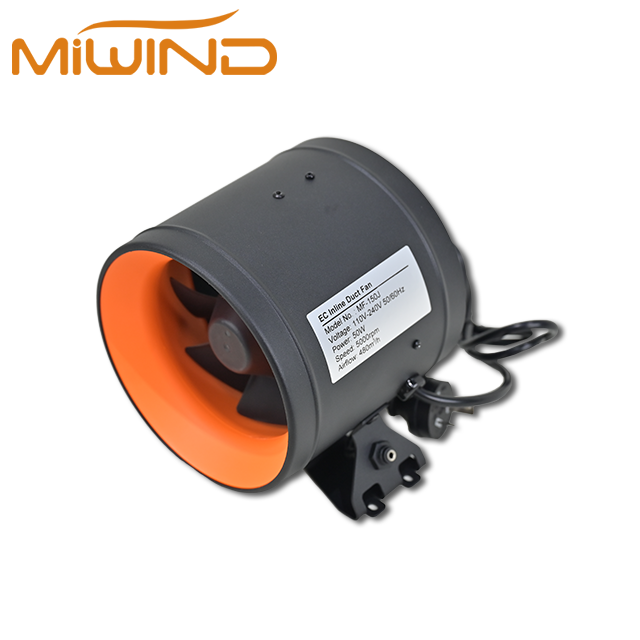

Booster Mixed-Flow Inline Fans
Mixed-flow impeller design combines high airflow of axial fans with high static pressure of centrifugal fans, ideal for long-duct applications
Model Booster Mixed-Flow Inline Fans
Core Parameters
Air Volume Range480 – 2600 m³/h (depending on model)
Static Pressure Range583 – 805 Pa
Motor Power50 – 350 W (depending on model)
Noise Level57 – 72 dB(A)
Key Features
Mixed-flow impeller design combines high airflow of axial fans with high static pressure of centrifugal fans, ideal for long-duct applications
Pure copper motor with high-quality ball bearings for stable operation and long service life
All-metal housing, rugged and durable for industrial environments
Suitable for warehouses, greenhouses, boiler rooms, workshops, offices, restaurants and other commercial/industrial buildings
Request a Quote
Applications
Factory fresh air systems
Commercial buildings

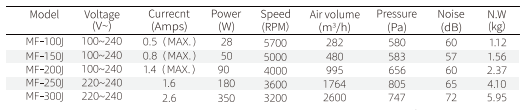

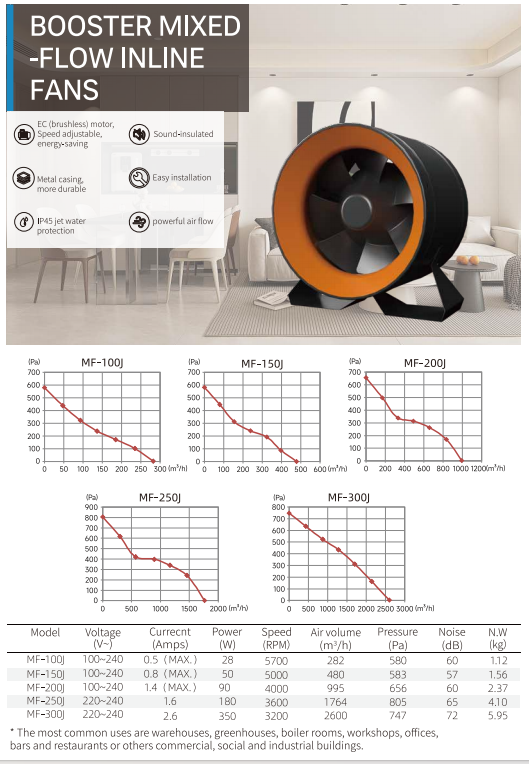

Technical Parameters
| Model | Voltage (V~) | Current (Amps) | Power (W) | Speed (RPM) | Air Volume (m³/h) | Pressure (Pa) | Noise (dB) | N.W (kg) |
|---|---|---|---|---|---|---|---|---|
| MF-100J | 100~240 | 0.5 (MAX.) | 28 | 5700 | 282 | 580 | 60 | 1.12 |
| MF-150J | 100~240 | 0.8 (MAX.) | 50 | 5000 | 480 | 583 | 57 | 1.56 |
| MF-200J | 100~240 | 1.4 (MAX.) | 90 | 4000 | 995 | 656 | 60 | 2.37 |
| MF-250J | 220~240 | 1.6 | 180 | 3600 | 1764 | 805 | 65 | 4.10 |
| MF-300J | 220~240 | 2.6 | 350 | 3200 | 2600 | 747 | 72 | 5.95 |
Support Documents
Fan catalogue and selection references for mixed-flow inline booster projects.
Application Solutions

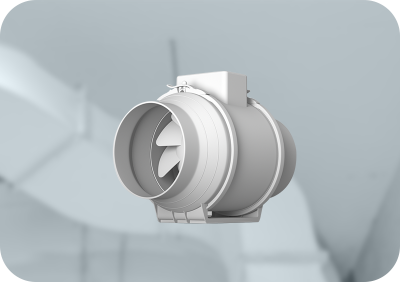

Solution pages for HVAC duct systems, commercial buildings and factory fresh-air projects.
