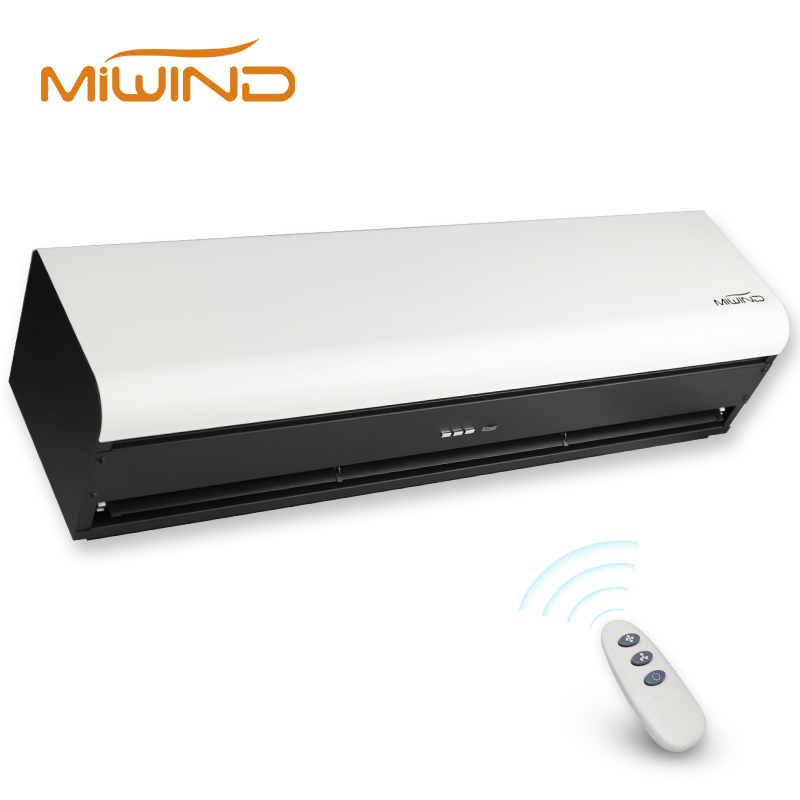

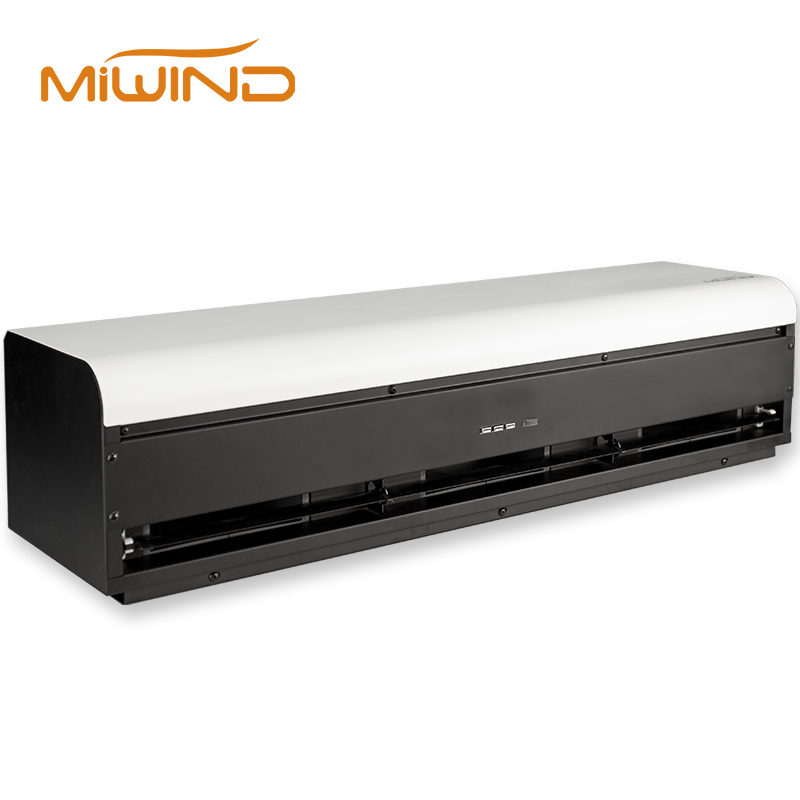

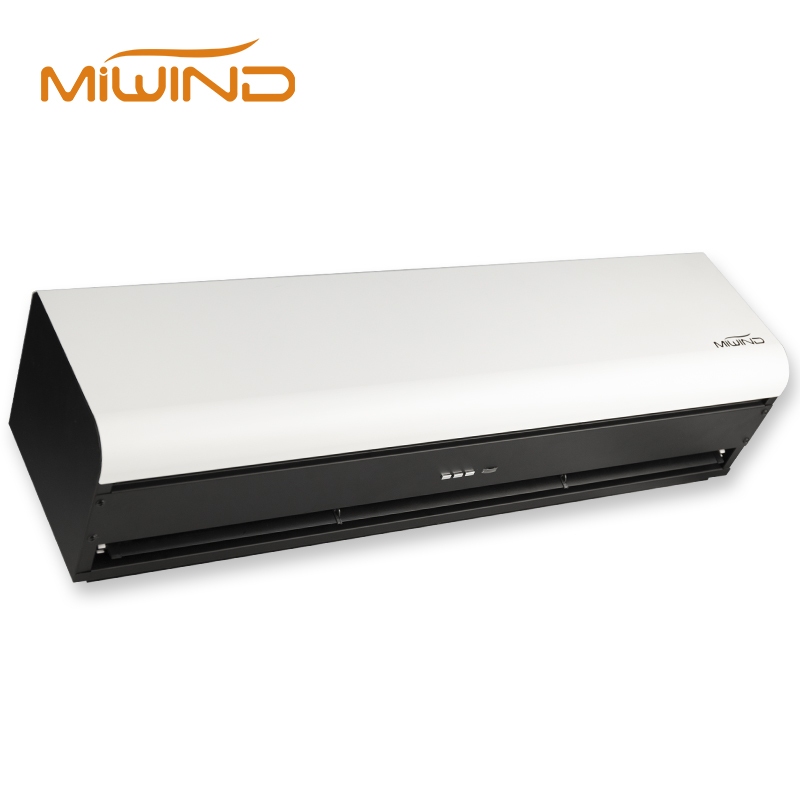

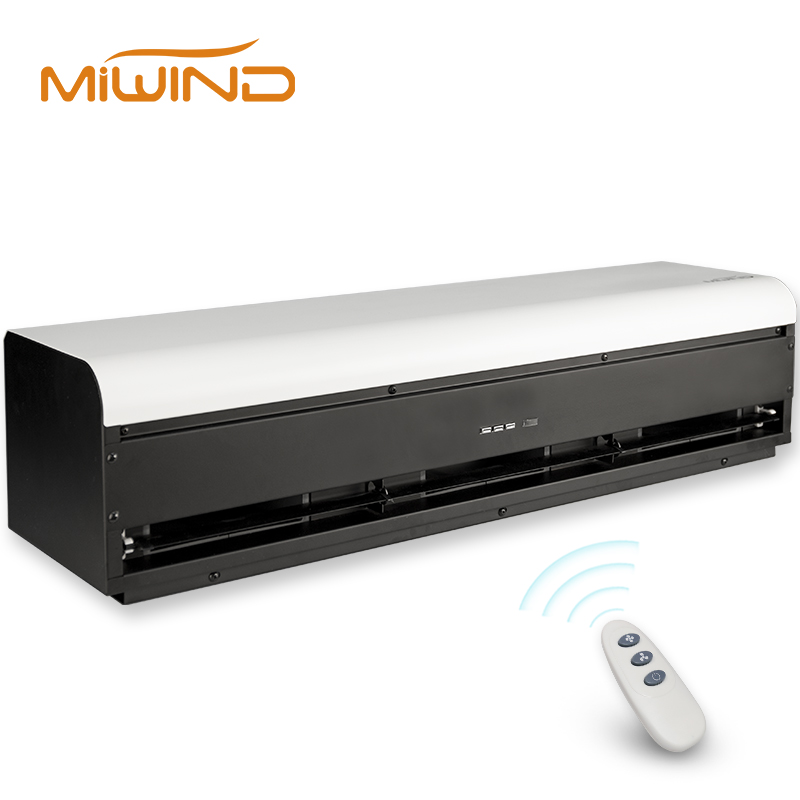

Centrifugal E Series Air Curtain
Centrifugal turbo design delivers higher air velocity and static pressure than cross-flow models, suitable for door heights up to 4-5 meters
Model E
Core Parameters
Air Velocity17 / 14 m/s (High/Low) or 21 / 18 m/s (depending on model)
Installation Height3.5 – 4.0 m or 4.0 – 5.0 m (depending on model)
Motor Power345 – 1036 W (depending on length and model)
Available Lengths900 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Centrifugal turbo design delivers higher air velocity and static pressure than cross-flow models, suitable for door heights up to 4-5 meters
All-metal housing made of galvanized steel sheet with powder coating for corrosion resistance – stronger and more fire-safe than ABS plastic used by competitors
Pure copper motor with ball bearings ensures stable operation and low noise (as low as 50 dB(A)), ideal for quiet environments like shopping malls and showrooms
3-year motor warranty, 1-year comprehensive warranty; includes installation manual, video guide, and all necessary fasteners – no extra parts needed
Request a Quote
Applications
Warehouse doors
Industrial doors

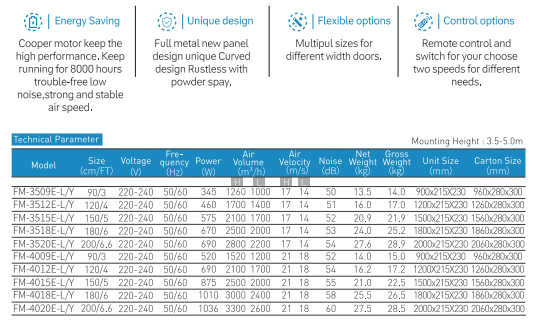

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-3509F-L/Y | 220-240 | 50/60 | 345 | 1260 | 1000 | 17 | 14 | 50 | 13.5 | 14.0 | 900x225x230 | 960x290x300 | 3.5-4.0 |
| FM-3512F-L/Y | 220-240 | 50/60 | 460 | 1700 | 1400 | 17 | 14 | 51 | 16.0 | 17.0 | 1200x225x230 | 1260x290x300 | 3.5-4.0 |
| FM-3515F-L/Y | 220-240 | 50/60 | 575 | 2100 | 1700 | 17 | 14 | 52 | 20.9 | 21.9 | 1500x225x230 | 1560x290x300 | 3.5-4.0 |
| FM-3518F-L/Y | 220-240 | 50/60 | 670 | 2500 | 2000 | 17 | 14 | 53 | 24.0 | 25.2 | 1800x225x230 | 1860x290x300 | 3.5-4.0 |
| FM-3520F-L/Y | 220-240 | 50/60 | 690 | 2800 | 2200 | 17 | 14 | 54 | 27.6 | 28.9 | 2000x225x230 | 2060x290x300 | 3.5-4.0 |
| FM-4009F-L/Y | 220-240 | 50/60 | 520 | 1520 | 1200 | 20 | 18 | 52 | 14.0 | 15.0 | 900x225x230 | 960x290x300 | 4.0-5.0 |
| FM-4012F-L/Y | 220-240 | 50/60 | 690 | 2100 | 1700 | 20 | 18 | 54 | 16.2 | 17.2 | 1200x225x230 | 1260x290x300 | 4.0-5.0 |
| FM-4015F-L/Y | 220-240 | 50/60 | 875 | 2500 | 2000 | 20 | 18 | 55 | 21.0 | 22.5 | 1500x225x230 | 1560x290x300 | 4.0-5.0 |
| FM-4018F-L/Y | 220-240 | 50/60 | 1010 | 3000 | 2400 | 20 | 18 | 58 | 25.5 | 26.5 | 1800x225x230 | 1860x290x300 | 4.0-5.0 |
| FM-4020F-L/Y | 220-240 | 50/60 | 1036 | 3300 | 2600 | 20 | 18 | 60 | 27.5 | 28.5 | 2000x225x230 | 2060x290x300 | 4.0-5.0 |
