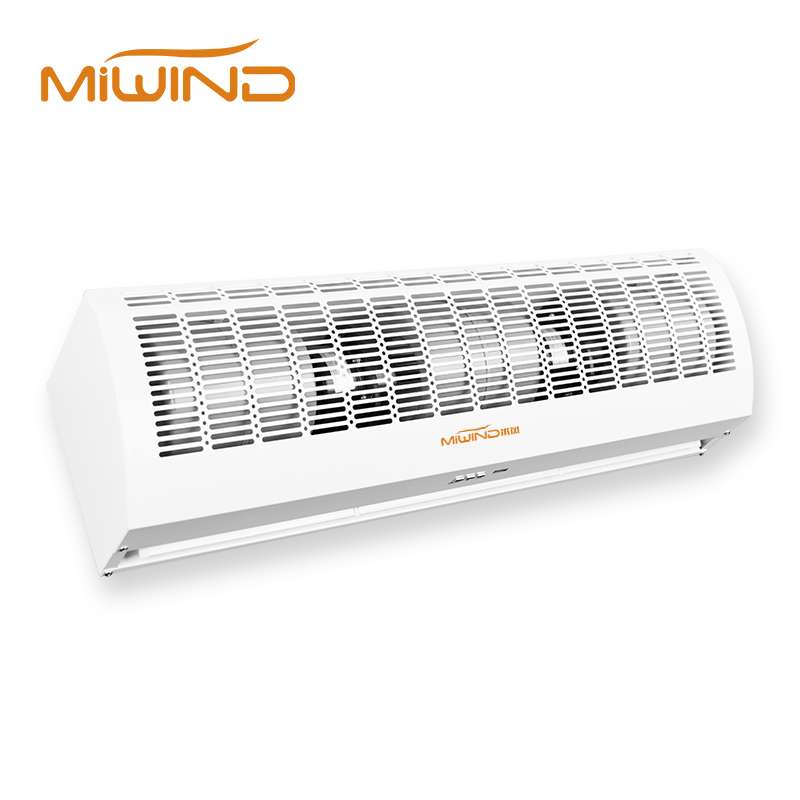

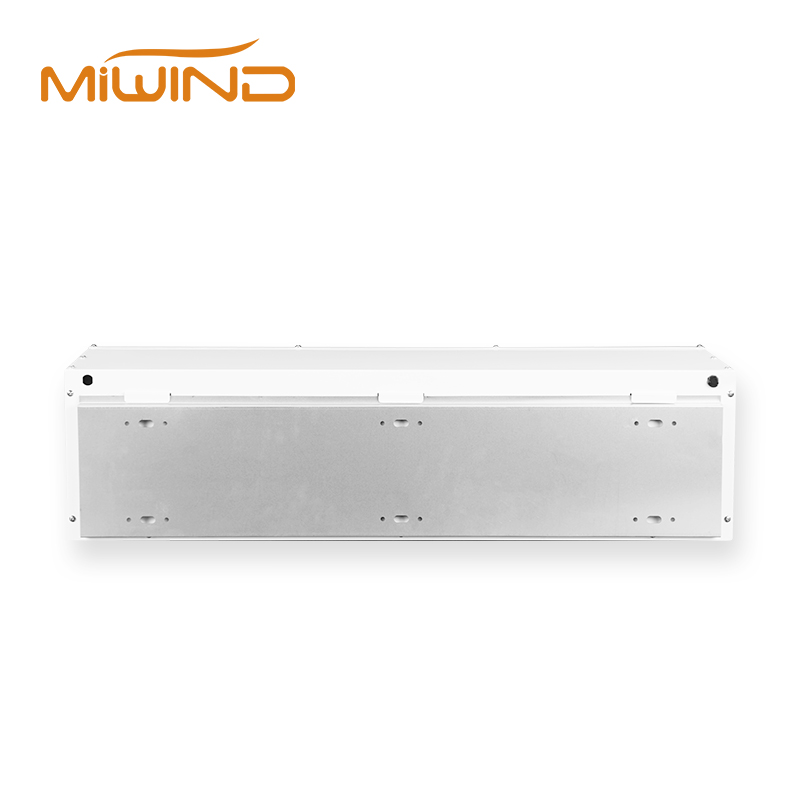

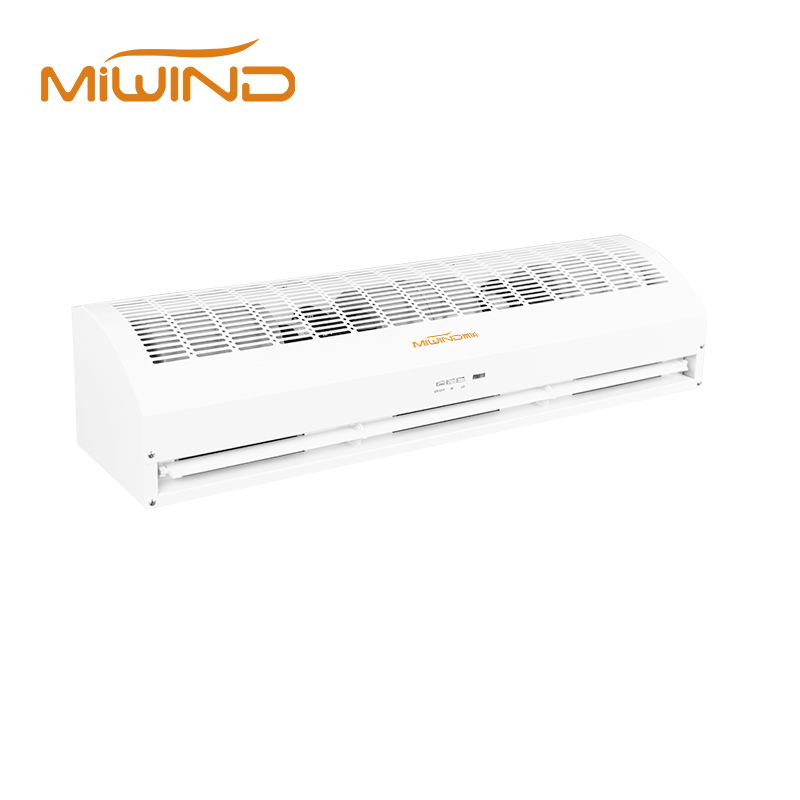

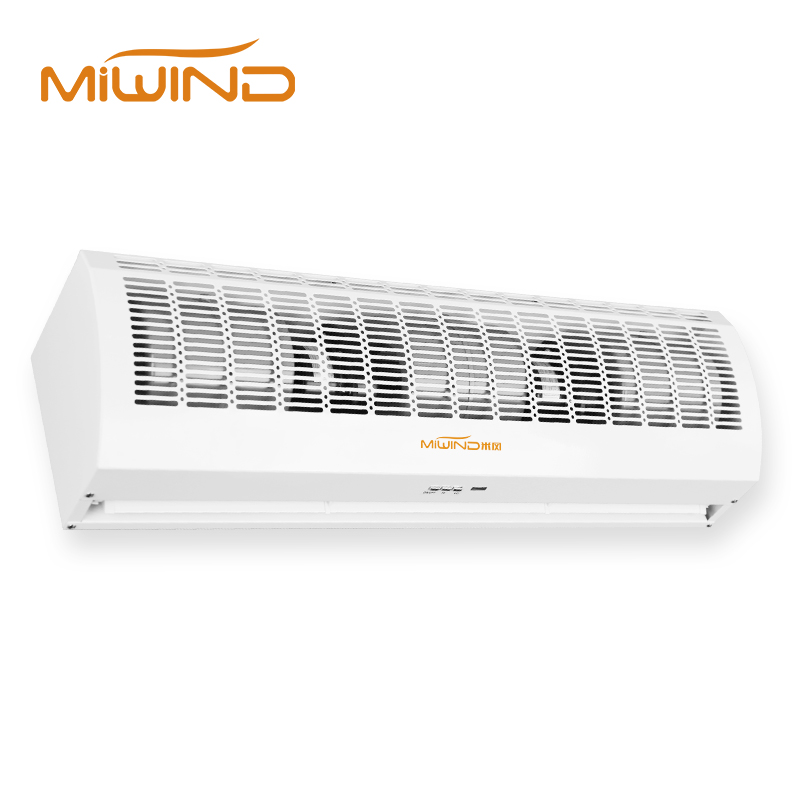

X5 Centrifugal Air Curtain Horizontal Intake

X5 Centrifugal Air Curtain Horizontal Intake

Horizontal intake design for standard above-door installation, airflow projects forward across the opening; optional air filter improves outgoing air cleanliness

Model X5 Horizontal Intake

Core Parameters

Air Velocity17 / 14 m/s (High/Low) or 21 / 18 m/s (depending on model) Installation Height3.5 – 4.0 m or 4.0 – 5.0 m (depending on model) Motor Power345 – 1036 W (depending on length and model) Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm

Key Features

Horizontal intake design for standard above-door installation, airflow projects forward across the opening; optional air filter improves outgoing air cleanliness Dual centrifugal motors deliver velocity up to 21 m/s, creating a strong barrier against outdoor dust, insects and temperature difference Galvanized steel housing (stainless steel optional), rust and corrosion proof; pure copper motor with ball bearings for quiet operation 3-year motor warranty, 1-year comprehensive warranty; full accessories, video and manual included for self-installation

Applications

Commercial entrances

Commercial entrances

Shopping malls

Shopping malls

Office entrances

Office entrances

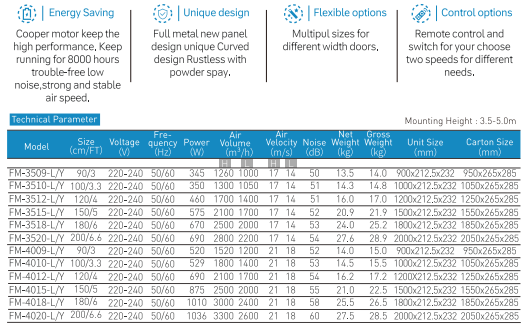

Technical Parameters

ModelVoltage (V)Frequency (Hz)Power (W)Air Volume H (m³/h)Air Volume L (m³/h)Air Velocity H (m/s)Air Velocity L (m/s)Noise (dB)Net Weight (kg)Gross Weight (kg)Unit Size (mm)Carton Size (mm)Mounting Height (m)
FM-3509S-L/Y(X5)220-24050/603451260100017145013.514.0900x214x233950x265x2853.5-4.0
FM-3510S-L/Y(X5)220-24050/603501300105017145114.314.81000x214x2331050x265x2853.5-4.0
FM-3512S-L/Y(X5)220-24050/604601700140017145116.017.01200x214x2331250x265x2853.5-4.0
FM-3515S-L/Y(X5)220-24050/605752100170017145220.921.91500x214x2331550x265x2853.5-4.0
FM-3518S-L/Y(X5)220-24050/606702500200017145324.025.21800x214x2331850x265x2853.5-4.0
FM-3520S-L/Y(X5)220-24050/606902800220017145427.628.92000x214x2332050x265x2853.5-4.0
FM-4009S-L/Y(X5)220-24050/605201520120021185214.015.0900x214x233950x265x2854.0-5.0
FM-4010S-L/Y(X5)220-24050/605291800140021185314.515.51000x214x2331050x265x2854.0-5.0
FM-4012S-L/Y(X5)220-24050/606902100170021185416.217.21200x214x2331250x265x2854.0-5.0
FM-4015S-L/Y(X5)220-24050/608752500200021185521.022.51500x214x2331550x265x2854.0-5.0
FM-4018S-L/Y(X5)220-24050/6010103000240021185825.526.51800x214x2331850x265x2854.0-5.0
FM-4020S-L/Y(X5)220-24050/6010363300260021186027.528.52000x214x2332050x265x2854.0-5.0

Support Documents

Air curtain catalogue and installation references for horizontal-intake X5 projects.

Solution pages for commercial, office and mall entrance conditions.
