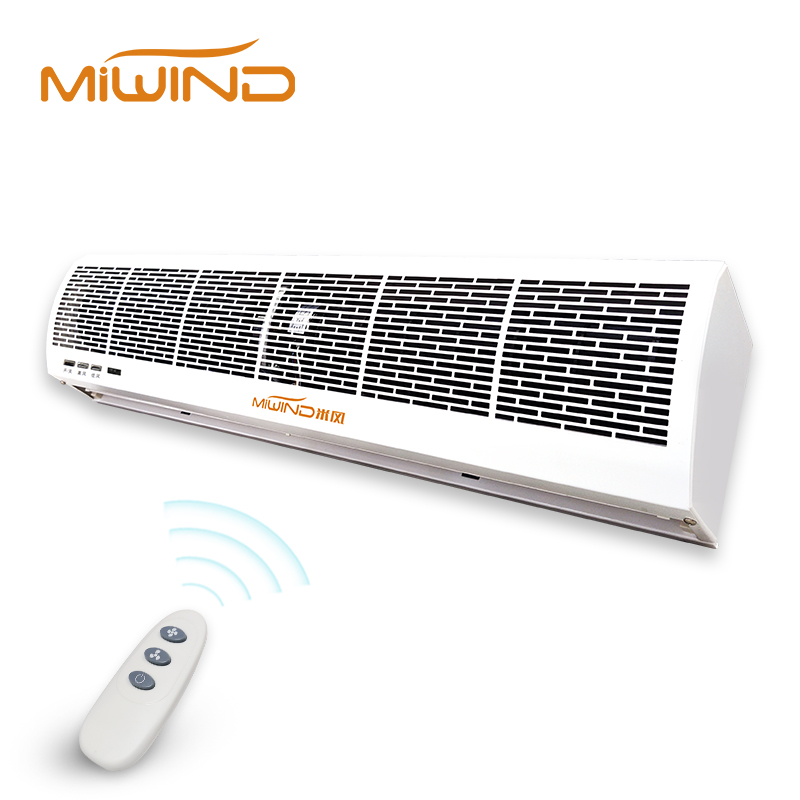

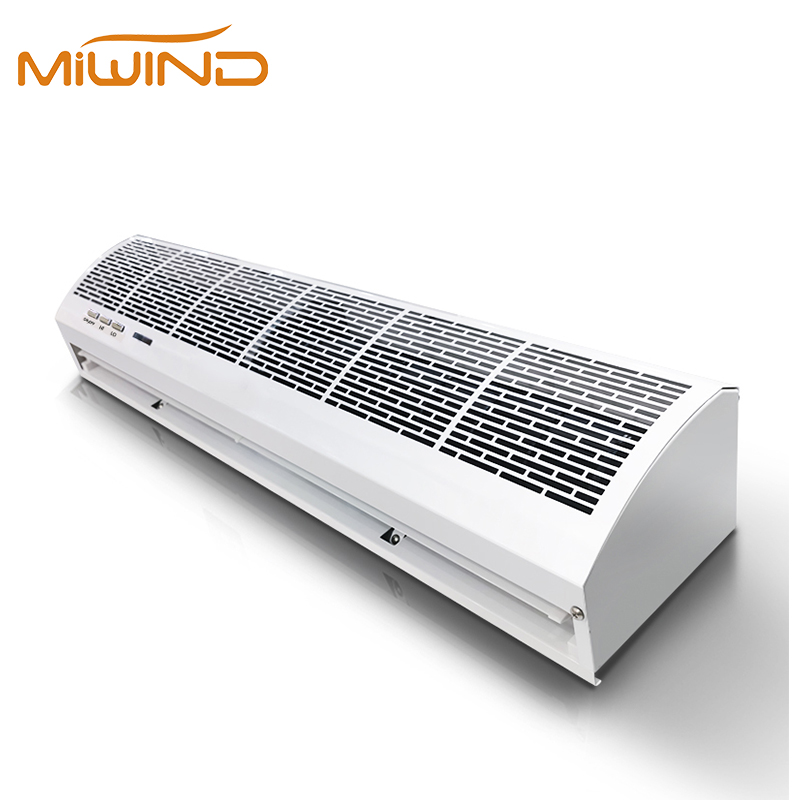

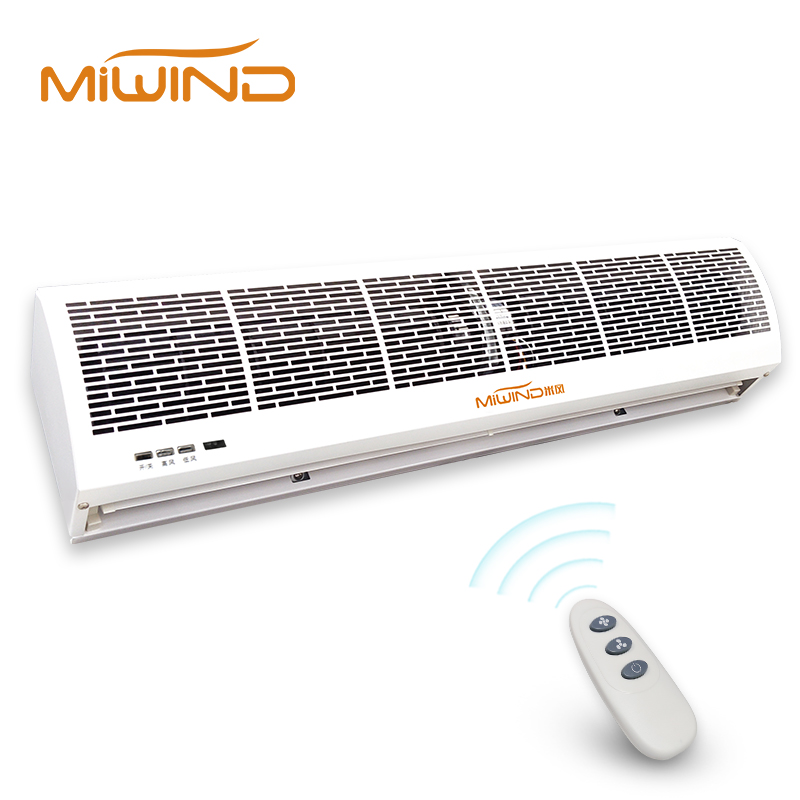

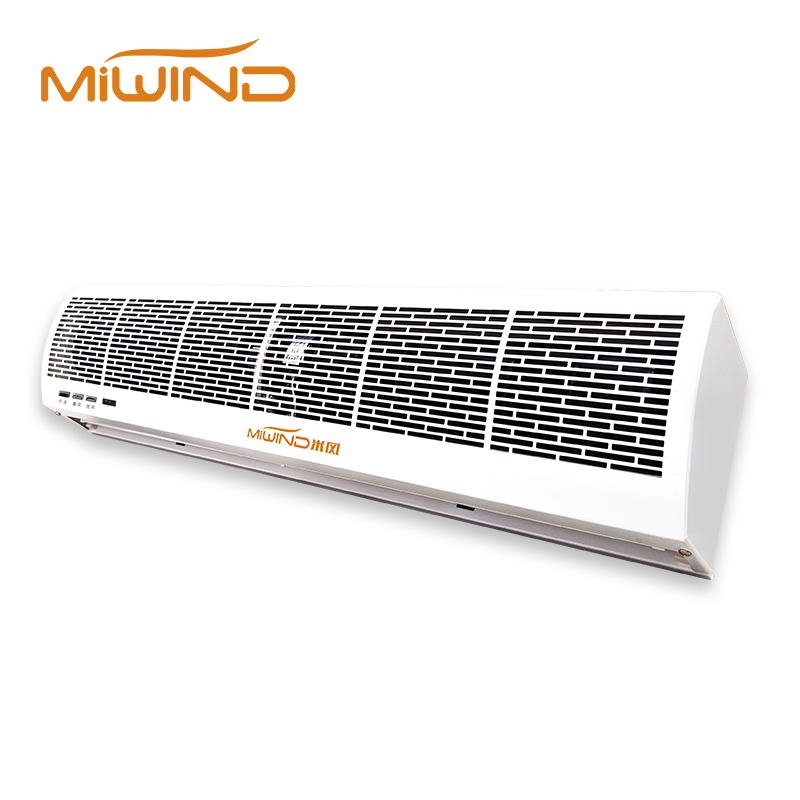

S Series Air Curtain
Slimmer all-metal architectural look with electrostatically painted finish—well suited for offices, showrooms, hotels and retail where appearance counts
Model S Series
Core Parameters
Air Velocity11 / 9 m/s (High / Low)
Installation Height2.0 – 2.5 m (also commonly specified 2.5–3.0 m range depending on model selected)
Motor Power134 – 298 W (by model length)
Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Key Features

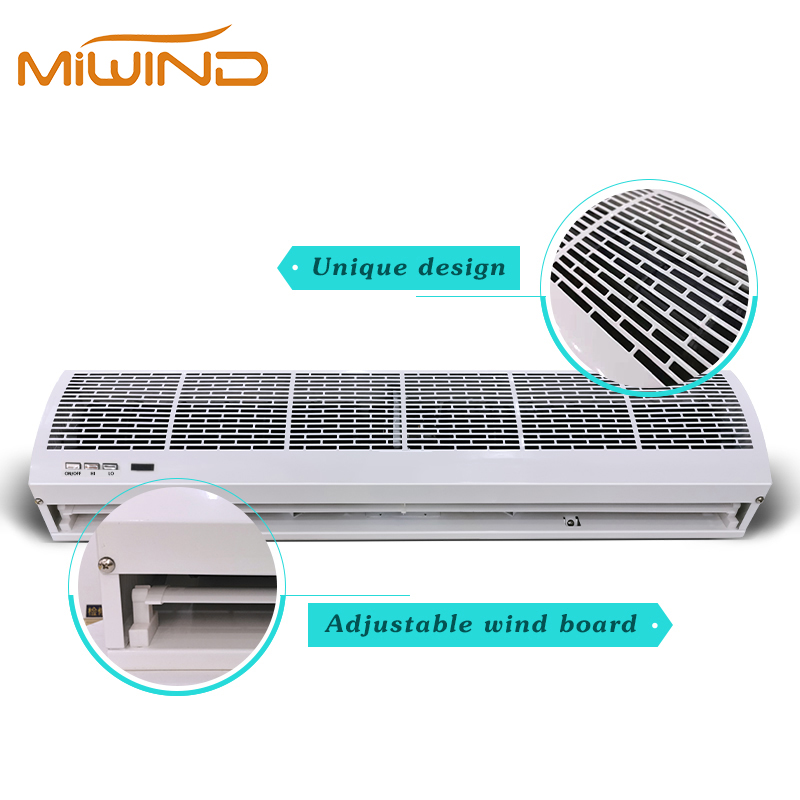

Slimmer all-metal architectural look with electrostatically painted finish—well suited for offices, showrooms, hotels and retail where appearance counts

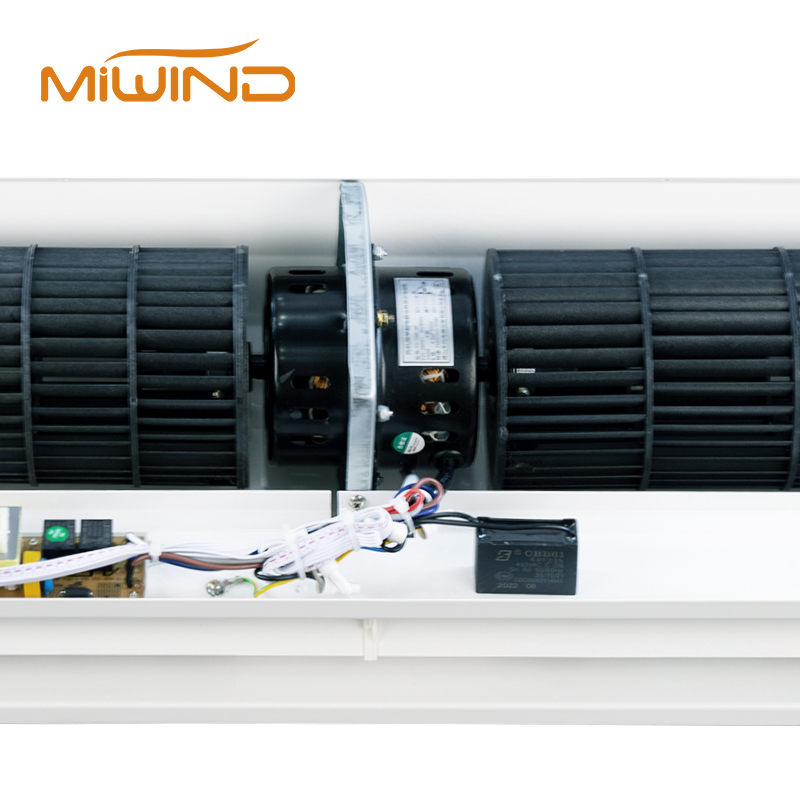

Copper-wire motor delivers quiet, stable airflow so the air curtain does not disrupt customer experience or workplace concentration
Compact design balances performance and space efficiency—ideal for installations with limited overhead clearance
Multiple length choices enable precise matching to door dimensions for optimal energy savings and barrier effectiveness
Request a Quote
Applications
Showroom
Hotel lobbies

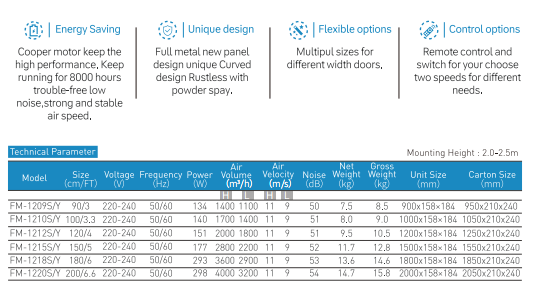

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-1209S | 220-240 | 50/60 | 134 | 1400 | 1100 | 11 | 9 | 50 | 7.5 | 8.5 | 900x158x184 | 950x210x240 | 2.5-3.0 |
| FM-1210S | 220-240 | 50/60 | 140 | 1700 | 1400 | 11 | 9 | 51 | 8.0 | 9.0 | 1000x158x184 | 1050x210x240 | 2.5-3.0 |
| FM-1212S | 220-240 | 50/60 | 151 | 2000 | 1800 | 11 | 9 | 51 | 9.5 | 10.5 | 1200x158x184 | 1250x210x240 | 2.5-3.0 |
| FM-1215S | 220-240 | 50/60 | 177 | 2800 | 2200 | 11 | 9 | 52 | 11.7 | 12.8 | 1500x158x184 | 1550x210x240 | 2.5-3.0 |
| FM-1218S | 220-240 | 50/60 | 293 | 3600 | 2900 | 11 | 9 | 53 | 13.6 | 14.6 | 1800x158x184 | 1850x210x240 | 2.5-3.0 |
| FM-1220S | 220-240 | 50/60 | 298 | 4000 | 3200 | 11 | 9 | 54 | 14.7 | 15.8 | 2000x158x184 | 2050x210x240 | 2.5-3.0 |
Support Documents
Air curtain catalogue and installation references for appearance-sensitive entrance projects.
