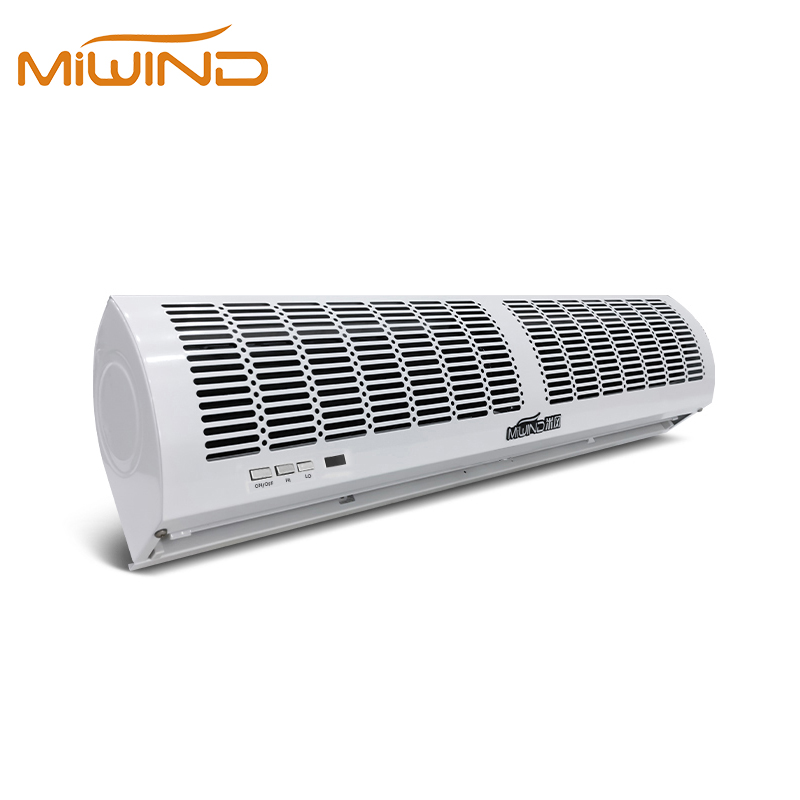

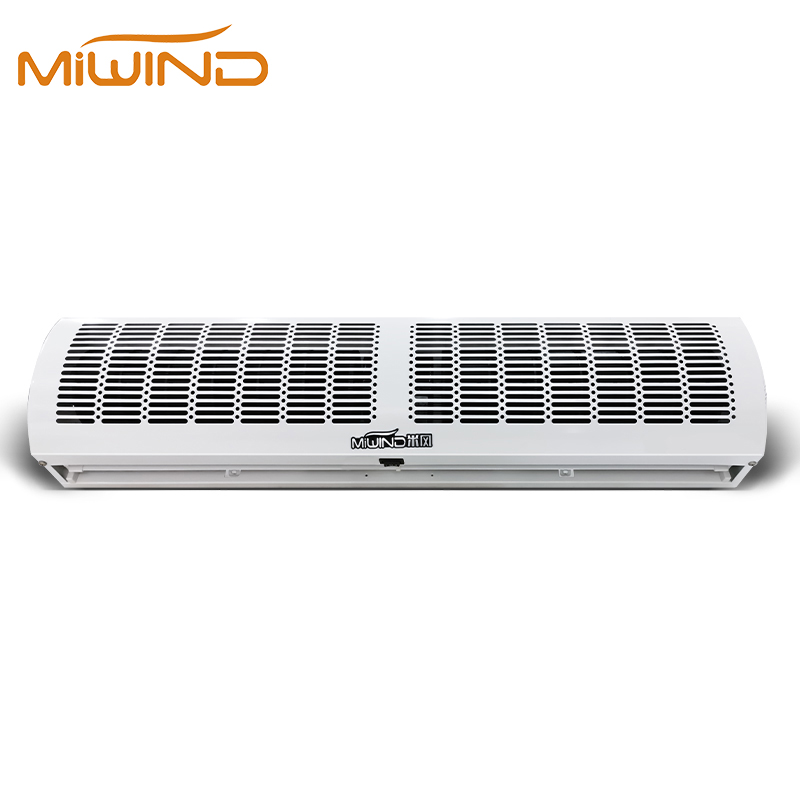

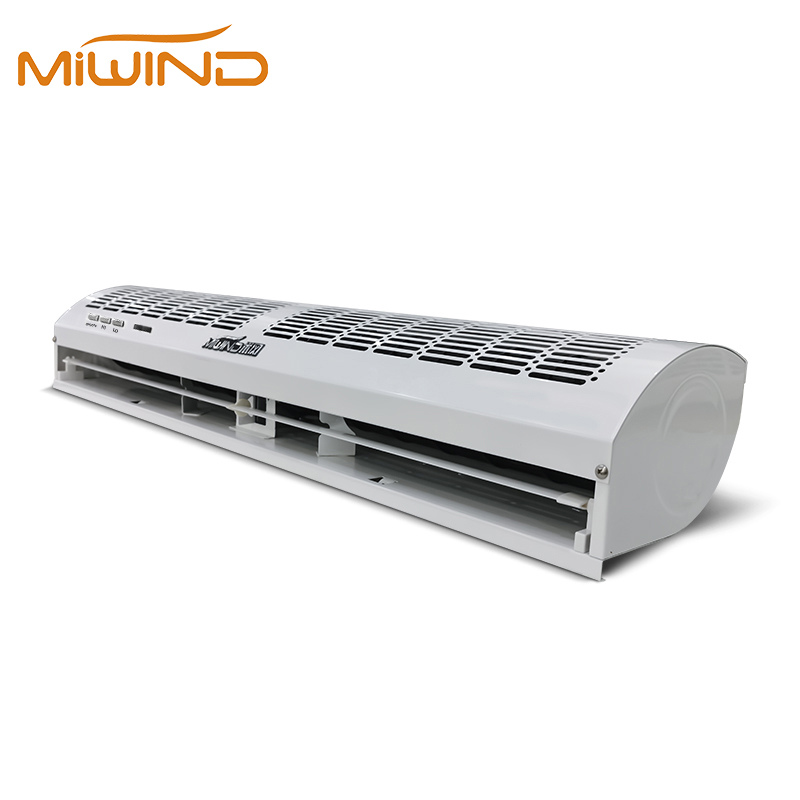

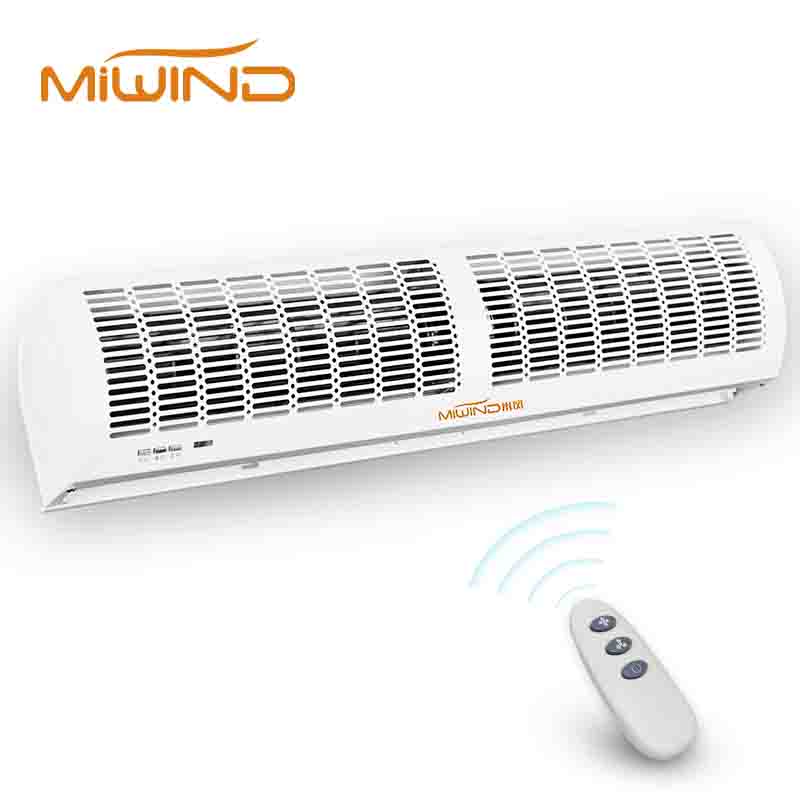

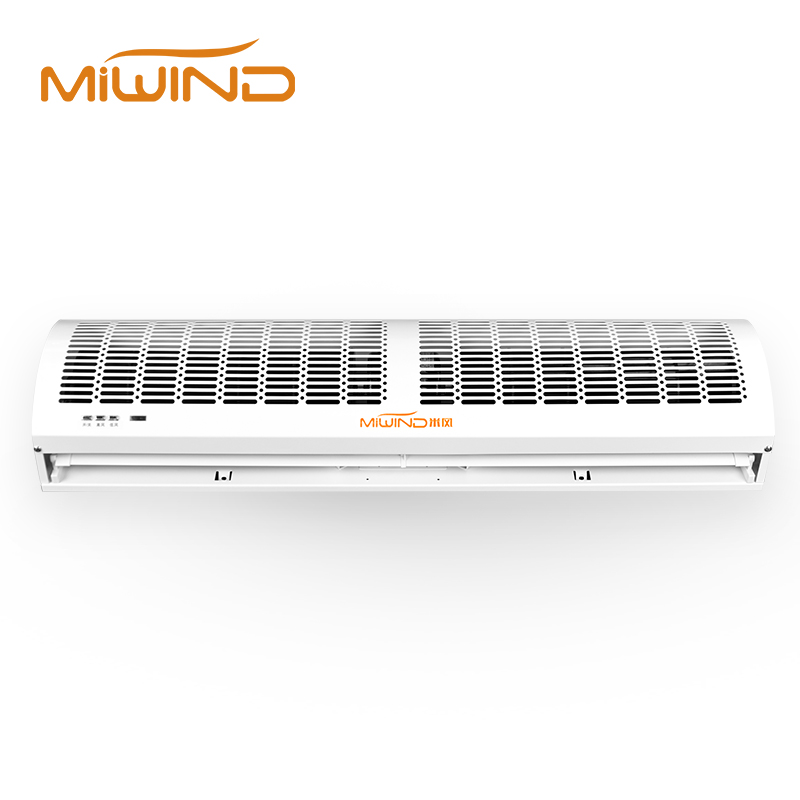

Q Series Air Curtain
Compact, cost-effective air curtain solution for smaller shop doors, side entrances, service counters and budget-sensitive projects
Model Q Series
Core Parameters
Air Velocity11 / 9 m/s (High / Low)
Installation Height2.0 – 2.5 m
Motor Power95 – 298 W (by model length)
Available Lengths600 / 900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Compact, cost-effective air curtain solution for smaller shop doors, side entrances, service counters and budget-sensitive projects

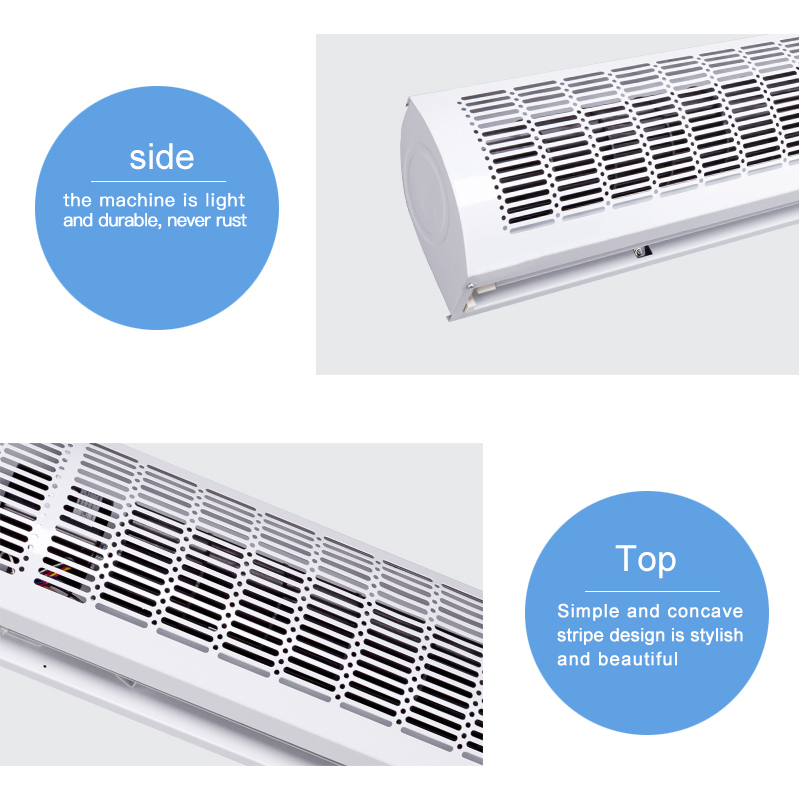

Lightweight yet durable metal build keeps installation simple while still forming an effective thermal/particulate barrier

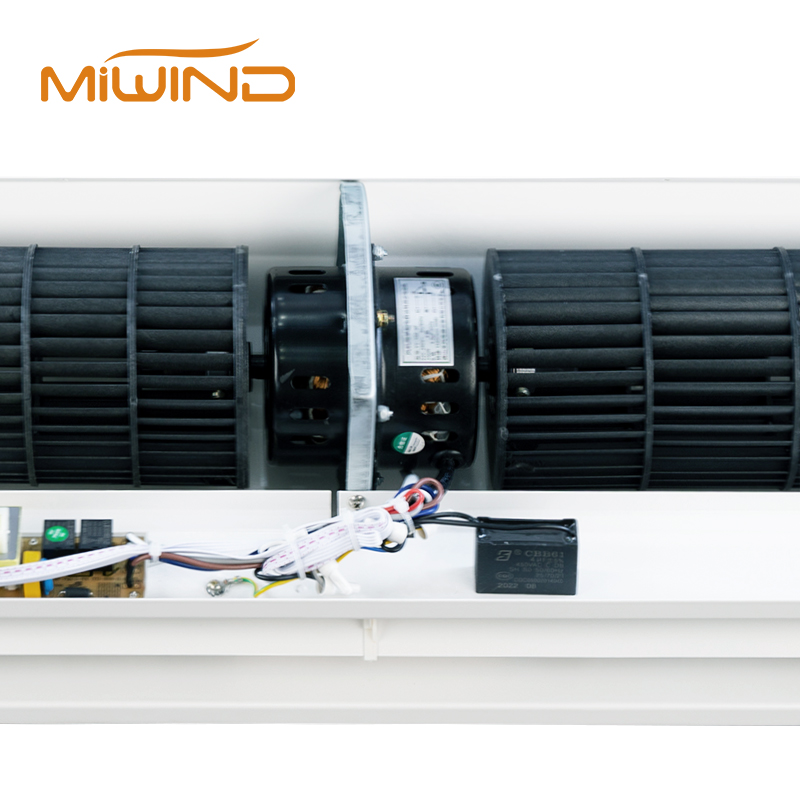

Copper-wire motor provides reliable day-to-day operation with controlled noise levels for customer-facing spaces
Multiple length options make it flexible for retrofits where door width doesn't require heavy industrial spec
Request a Quote
Applications
Convenience stores
Service Entrance

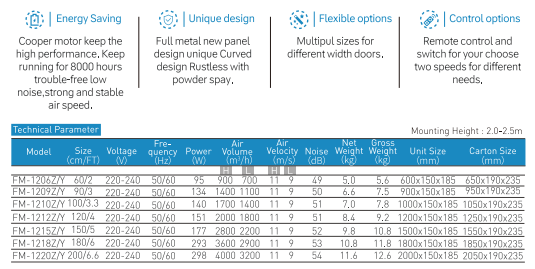

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-1206Z | 220-240 | 50/60 | 95 | 900 | 700 | 11 | 9 | 49 | 5.0 | 5.6 | 600x150x185 | 650x190x235 | 2.5-3.0 |
| FM-1209Z | 220-240 | 50/60 | 134 | 1400 | 1100 | 11 | 9 | 50 | 6.6 | 7.5 | 900x150x185 | 950x190x235 | 2.5-3.0 |
| FM-1210Z | 220-240 | 50/60 | 140 | 1700 | 1400 | 11 | 9 | 51 | 7.0 | 7.8 | 1000x150x185 | 1050x190x235 | 2.5-3.0 |
| FM-1212Z | 220-240 | 50/60 | 151 | 2000 | 1800 | 11 | 9 | 51 | 8.4 | 9.2 | 1200x150x185 | 1250x190x235 | 2.5-3.0 |
| FM-1215Z | 220-240 | 50/60 | 177 | 2800 | 2200 | 11 | 9 | 52 | 9.8 | 10.8 | 1500x150x185 | 1550x190x235 | 2.5-3.0 |
| FM-1218Z | 220-240 | 50/60 | 293 | 3600 | 2900 | 11 | 9 | 53 | 10.8 | 11.8 | 1800x150x185 | 1850x190x235 | 2.5-3.0 |
| FM-1220Z | 220-240 | 50/60 | 298 | 4000 | 3200 | 11 | 9 | 54 | 11.6 | 12.6 | 2000x150x185 | 2050x190x235 | 2.5-3.0 |
Support Documents
Air curtain catalogue and selection references for compact entrance projects.
