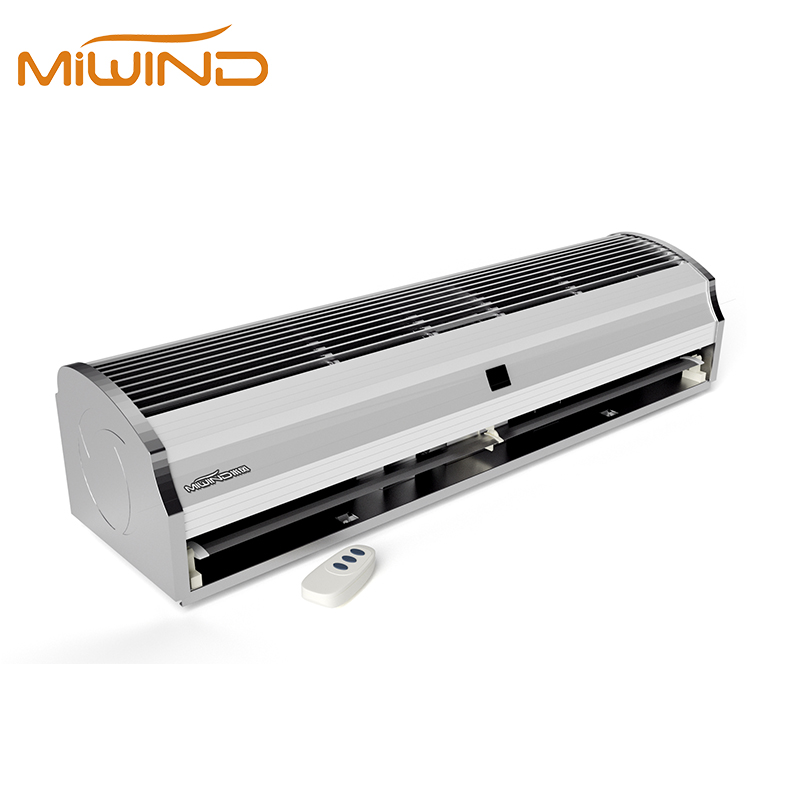

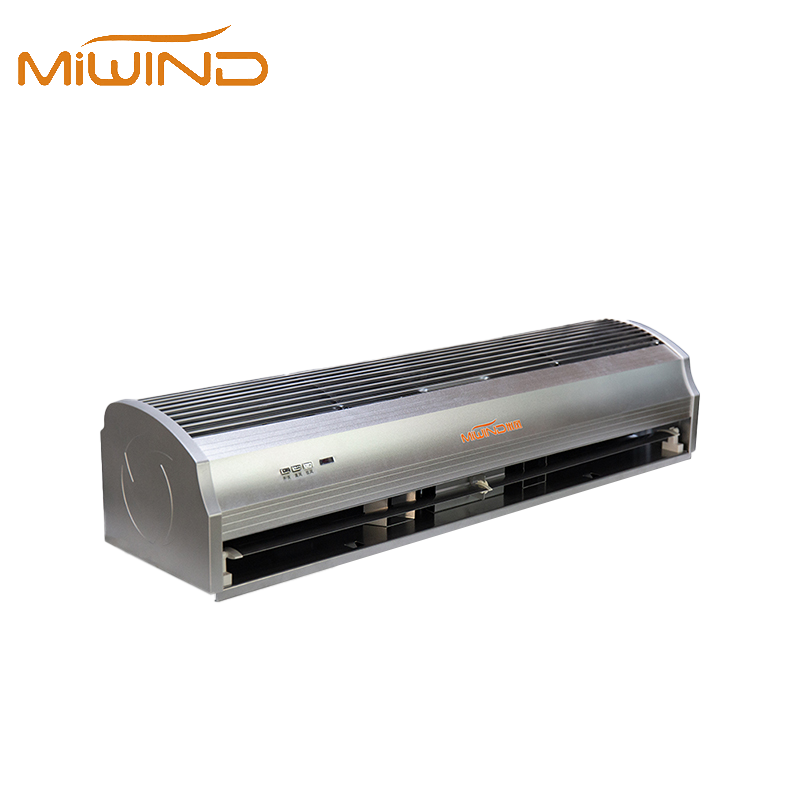

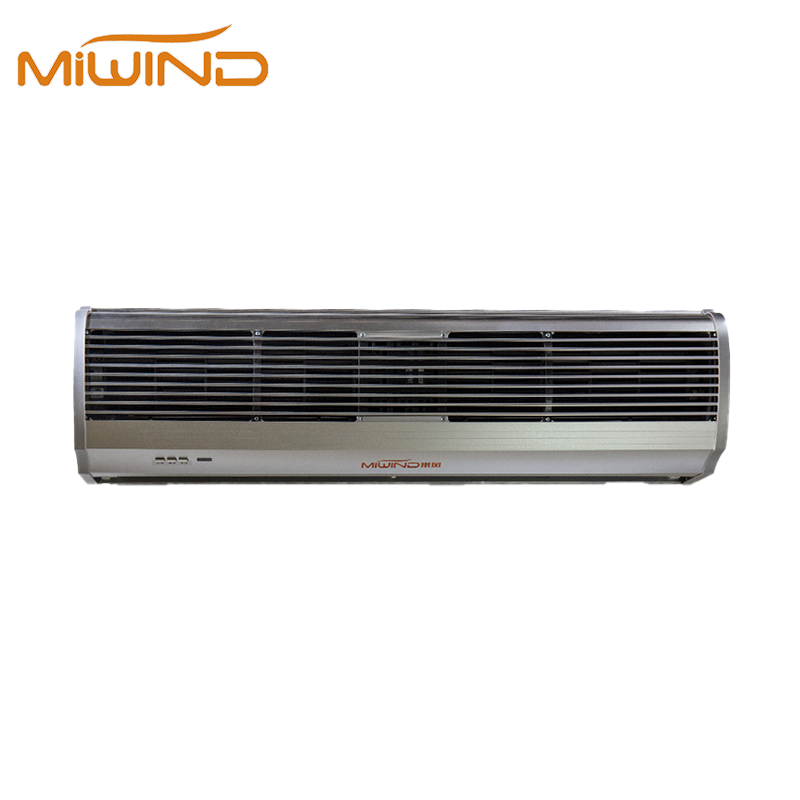

Cross Flow A5 Series Air Curtain
Commercial-grade invisible air door that isolates indoor conditioned air from outdoor dust, insects and temperature loss
Model A5 Cross Flow
Core Parameters
Air Velocity11 / 9 m/s (High / Low)
Installation Height2.5 – 3.0 m
Motor Power140 – 245 W (by model length)
Available Lengths900 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Commercial-grade invisible air door that isolates indoor conditioned air from outdoor dust, insects and temperature loss

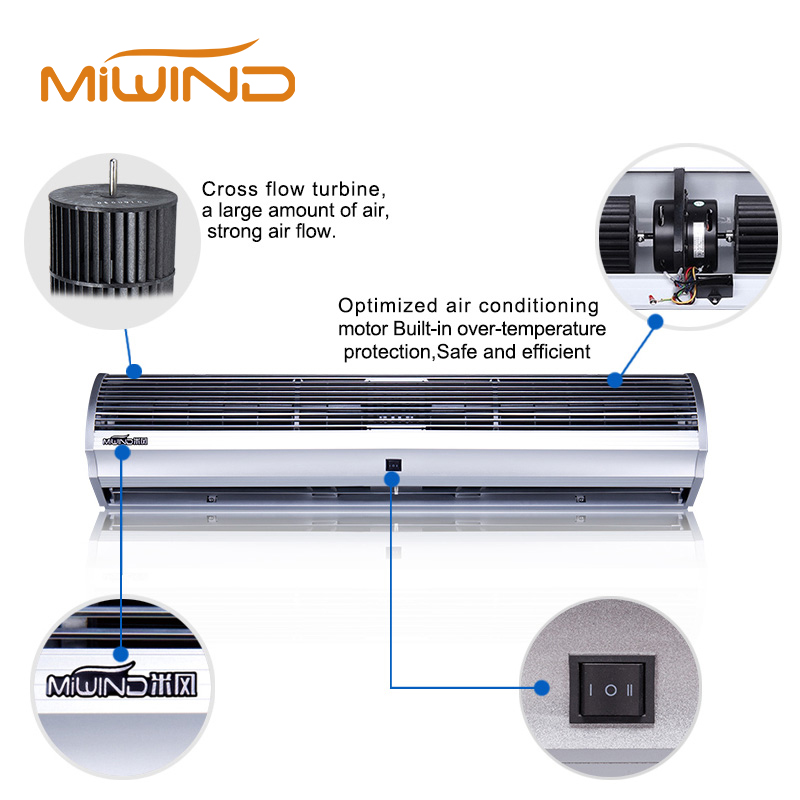

100% copper-wire motor engineered for long-life, low-vibration, stable day-to-day operation

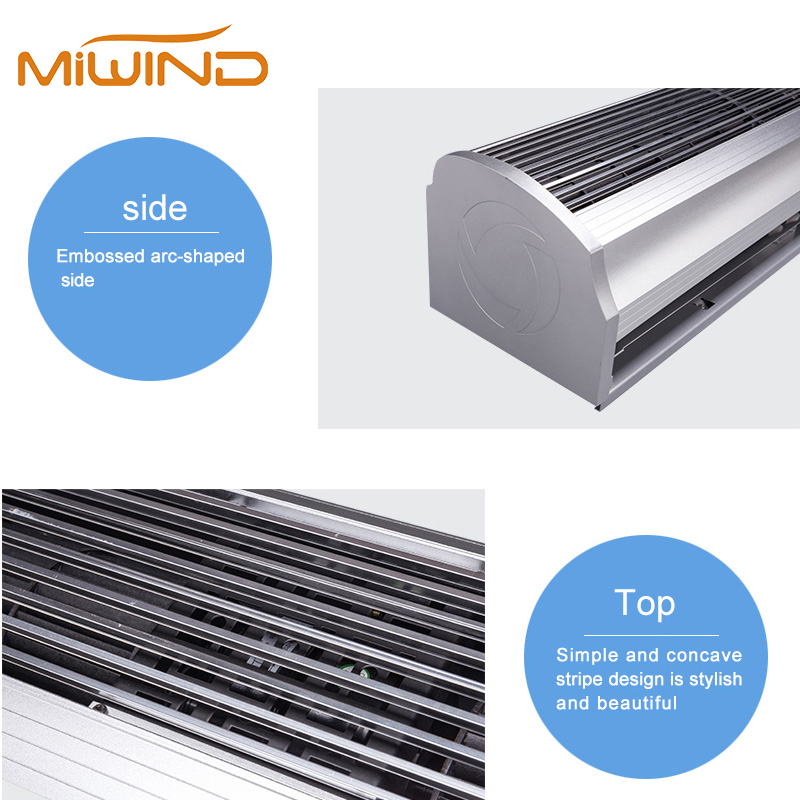

All-metal housing with corrosion-resistant powder-coated finish for durability in busy entrances
Optimized impeller & airflow path deliver strong, even air curtain coverage across full door width
Request a Quote
Applications
Restaurants
Hotels

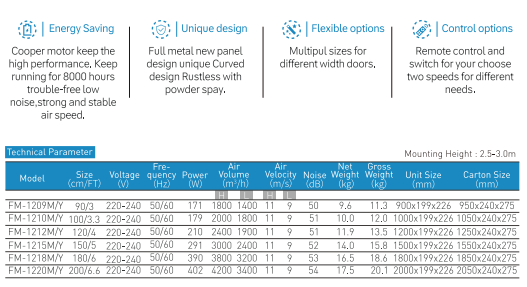

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-1209M | 220-240 | 50/60 | 171 | 1800 | 1400 | 11 | 9 | 50 | 9.6 | 11.3 | 900x199x226 | 950x240x275 | 2.5-3.0 |
| FM-1210M | 220-240 | 50/60 | 179 | 2000 | 1800 | 11 | 9 | 51 | 10.0 | 12.0 | 1000x199x226 | 1050x240x275 | 2.5-3.0 |
| FM-1212M | 220-240 | 50/60 | 210 | 2400 | 1900 | 11 | 9 | 51 | 11.9 | 13.5 | 1200x199x226 | 1250x240x275 | 2.5-3.0 |
| FM-1215M | 220-240 | 50/60 | 291 | 3000 | 2400 | 11 | 9 | 52 | 14.0 | 15.8 | 1500x199x226 | 1550x240x275 | 2.5-3.0 |
| FM-1218M | 220-240 | 50/60 | 390 | 3600 | 2900 | 11 | 9 | 53 | 16.5 | 18.6 | 1800x199x226 | 1850x240x275 | 2.5-3.0 |
| FM-1220M | 220-240 | 50/60 | 402 | 4000 | 3200 | 11 | 9 | 54 | 17.5 | 20.1 | 2000x199x226 | 2050x240x275 | 2.5-3.0 |
