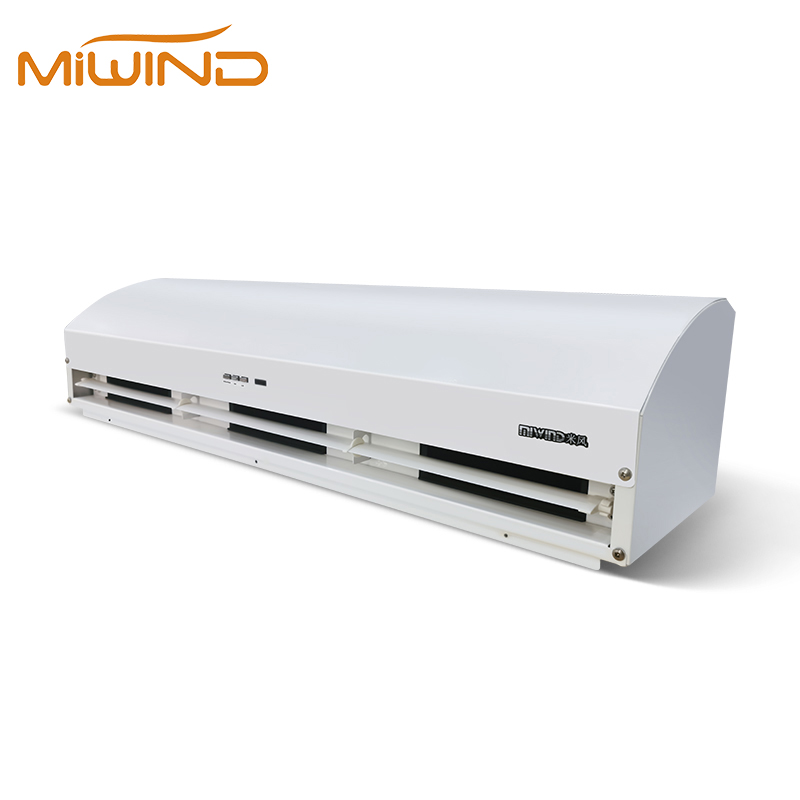

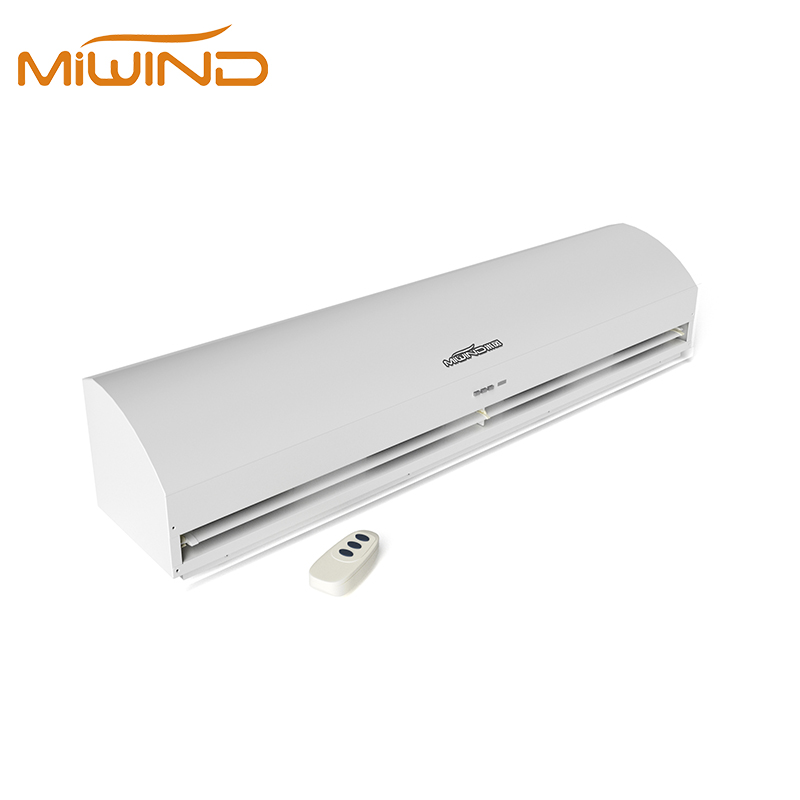

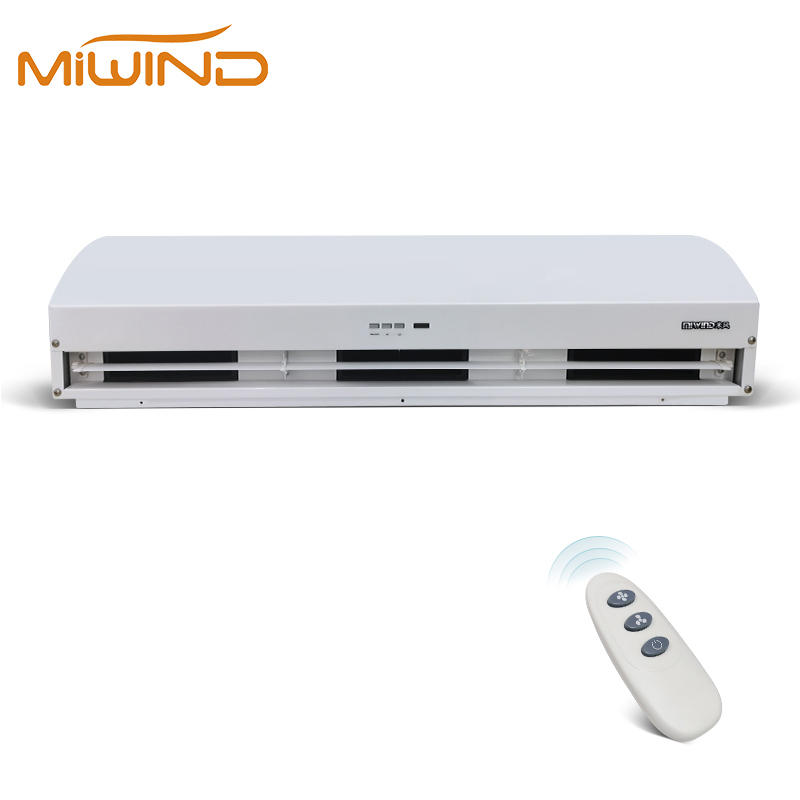

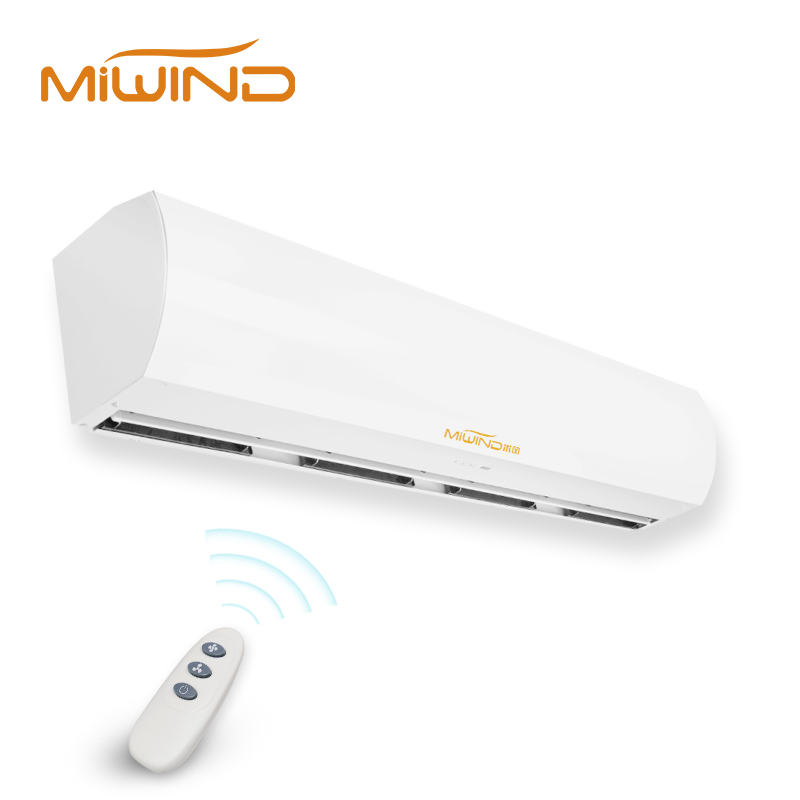

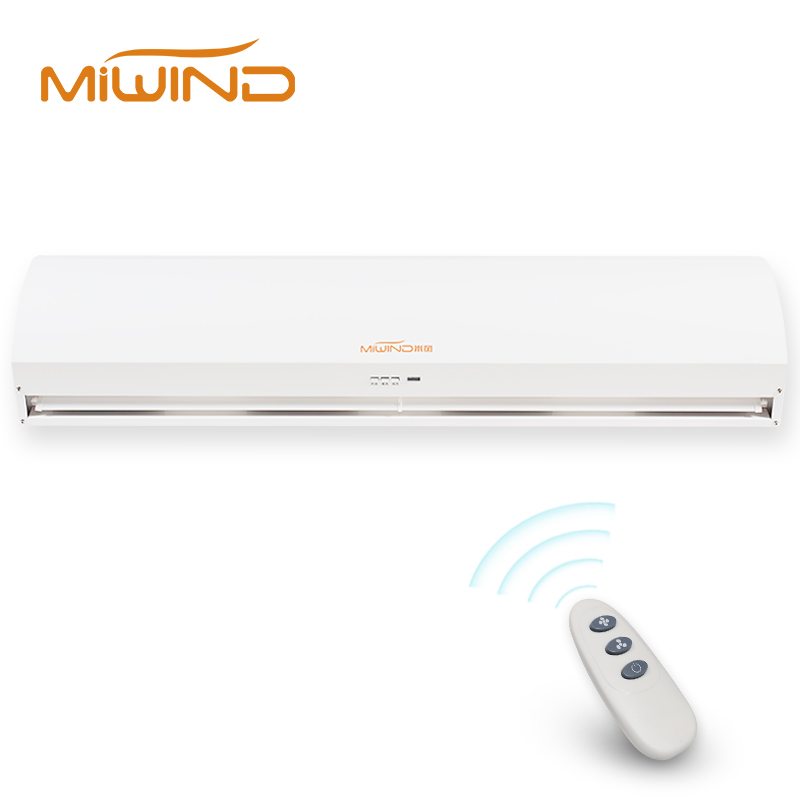

X5 Centrifugal Air Curtain Upper Intake

Name: X5 Centrifugal Air Curtain Upper Intake
SKU: MIWIND-X5-CENTRIFUGAL-AIR-CURTAIN-UPPER-INTAKE

Upper intake design with air inlet on top, ideal for concealed ceiling installation or where ductwork needs to be hidden – cleaner aesthetic

Model X5 Upper Intake

Core Parameters

Air Velocity17 / 14 m/s (High/Low) or 21 / 18 m/s (depending on model) Installation Height3.5 – 4.0 m or 4.0 – 5.0 m (depending on model) Motor Power345 – 1036 W (depending on length and model) Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm

Key Features

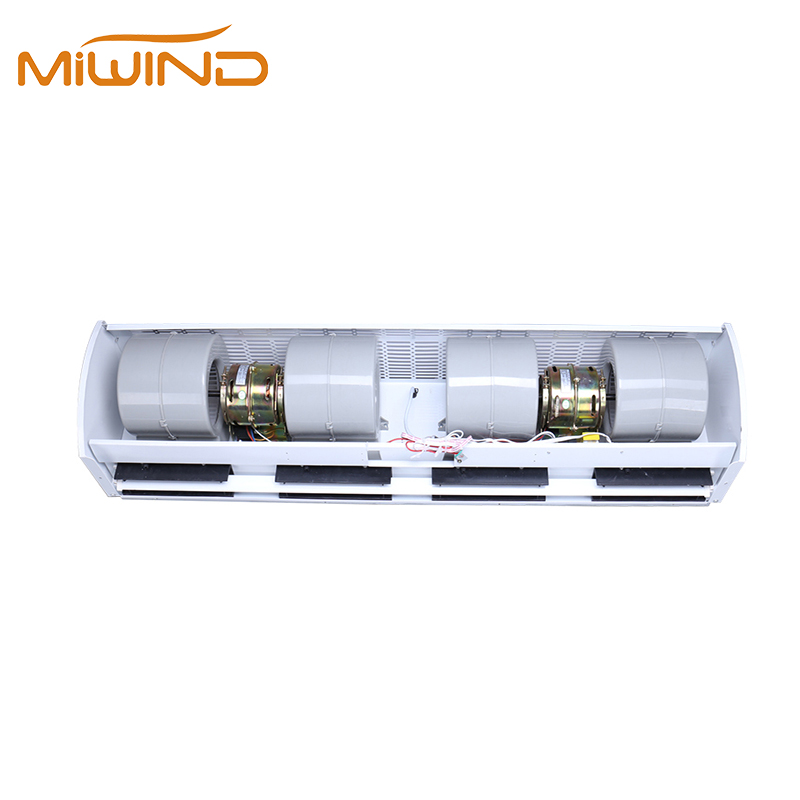

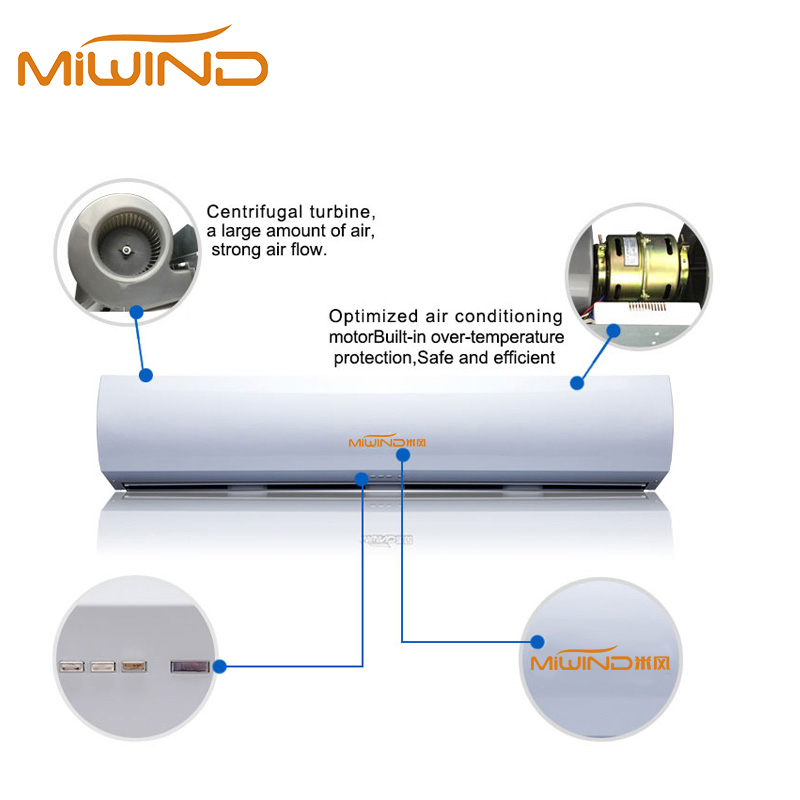

Upper intake design with air inlet on top, ideal for concealed ceiling installation or where ductwork needs to be hidden – cleaner aesthetic Same performance as horizontal intake model: dual centrifugal motors with pure copper ball-bearing system deliver identical high velocity and static pressure Galvanized steel housing resists rust; optional filter for intake air purification; suitable for malls, offices, hospitals where appearance matters 3-year motor warranty, 1-year comprehensive warranty; supplied with installation video, manual and all fasteners – no extra parts needed

Applications

HVAC public areas

Office entrances

Commercial entrances

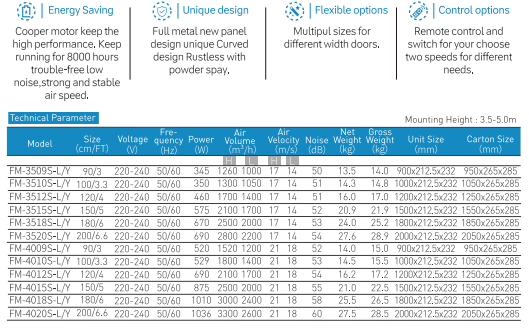

Technical Parameters

Model	Voltage (V)	Frequency (Hz)	Power (W)	Air Volume H (m³/h)	Air Volume L (m³/h)	Air Velocity H (m/s)	Air Velocity L (m/s)	Noise (dB)	Net Weight (kg)	Gross Weight (kg)	Unit Size (mm)	Carton Size (mm)	Mounting Height (m)
FM-3509S-L/Y(X5)	220-240	50/60	345	1260	1000	17	14	50	13.5	14.0	900x214x233	950x265x285	3.5-4.0
FM-3510S-L/Y(X5)	220-240	50/60	350	1300	1050	17	14	51	14.3	14.8	1000x214x233	1050x265x285	3.5-4.0
FM-3512S-L/Y(X5)	220-240	50/60	460	1700	1400	17	14	51	16.0	17.0	1200x214x233	1250x265x285	3.5-4.0
FM-3515S-L/Y(X5)	220-240	50/60	575	2100	1700	17	14	52	20.9	21.9	1500x214x233	1550x265x285	3.5-4.0
FM-3518S-L/Y(X5)	220-240	50/60	670	2500	2000	17	14	53	24.0	25.2	1800x214x233	1850x265x285	3.5-4.0
FM-3520S-L/Y(X5)	220-240	50/60	690	2800	2200	17	14	54	27.6	28.9	2000x214x233	2050x265x285	3.5-4.0
FM-4009S-L/Y(X5)	220-240	50/60	520	1520	1200	21	18	52	14.0	15.0	900x214x233	950x265x285	4.0-5.0
FM-4010S-L/Y(X5)	220-240	50/60	529	1800	1400	21	18	53	14.5	15.5	1000x214x233	1050x265x285	4.0-5.0
FM-4012S-L/Y(X5)	220-240	50/60	690	2100	1700	21	18	54	16.2	17.2	1200x214x233	1250x265x285	4.0-5.0
FM-4015S-L/Y(X5)	220-240	50/60	875	2500	2000	21	18	55	21.0	22.5	1500x214x233	1550x265x285	4.0-5.0
FM-4018S-L/Y(X5)	220-240	50/60	1010	3000	2400	21	18	58	25.5	26.5	1800x214x233	1850x265x285	4.0-5.0
FM-4020S-L/Y(X5)	220-240	50/60	1036	3300	2600	21	18	60	27.5	28.5	2000x214x233	2050x265x285	4.0-5.0
