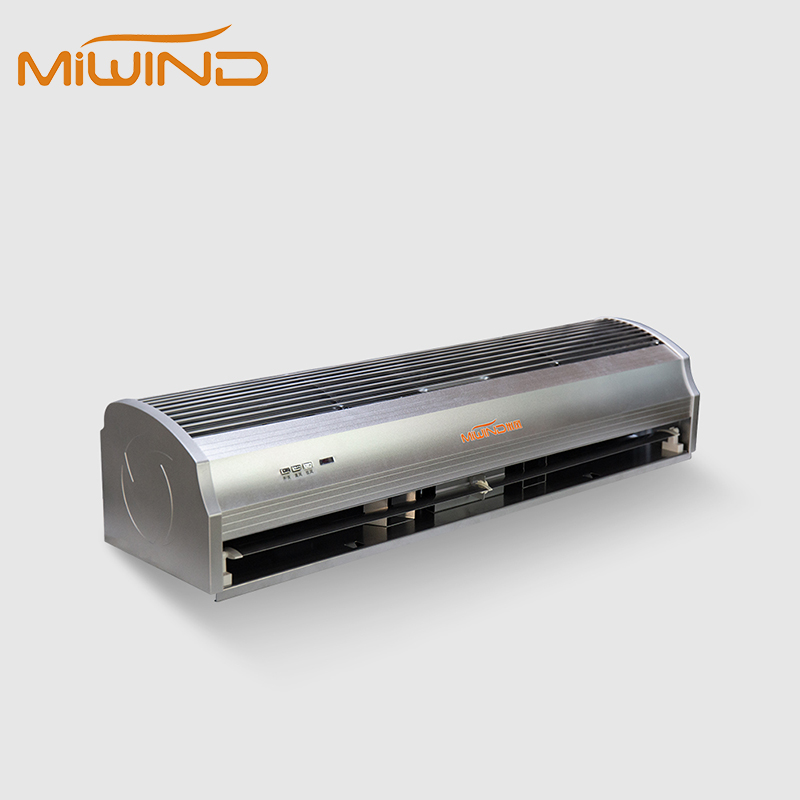

A5 Series Air Curtain
Higher heating capacity (up to 20000W) compared to A3 series, suitable for larger entrances or colder regions requiring stronger warmth
Model A5
Core Parameters
Air Velocity7.5 / 6.5 m/s (High / Low)
Installation Height2.5 – 3.5 m
Motor Power150 – 250 W (depending on length); PTC Heating Power: 10000 – 20000 W
Available Lengths900 / 1200 / 1500 / 1800 mm
Key Features
Higher heating capacity (up to 20000W) compared to A3 series, suitable for larger entrances or colder regions requiring stronger warmth

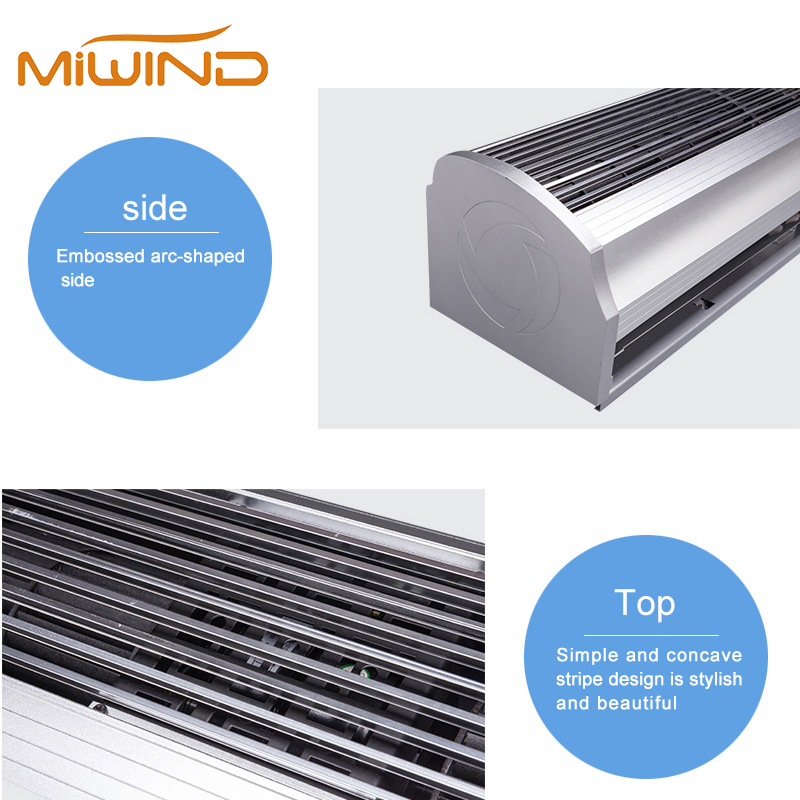

All-metal housing with electrostatic painting – rust-proof and corrosion-resistant, maintains professional appearance over years of use

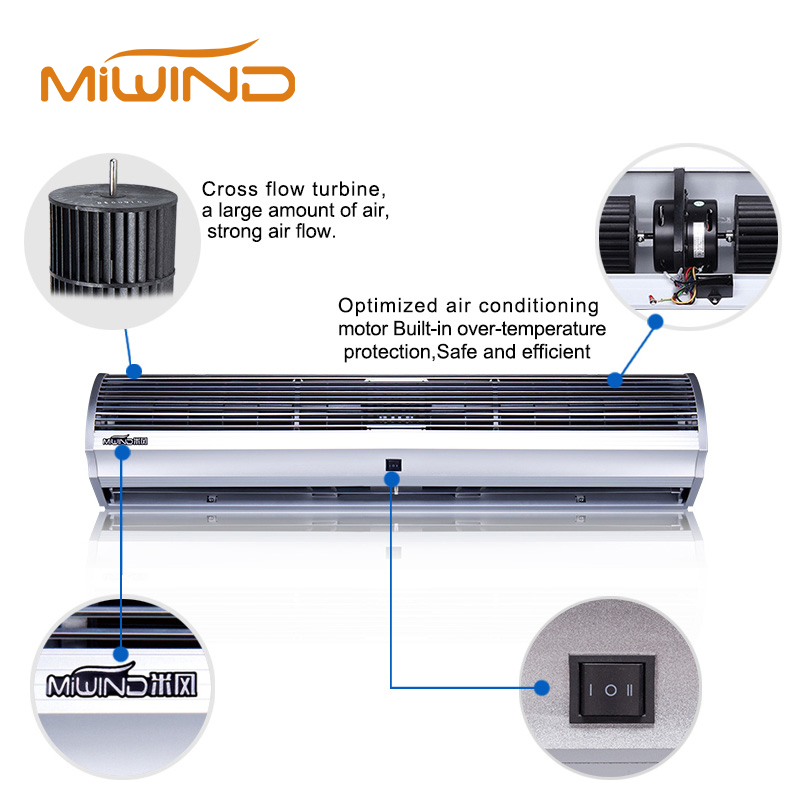

Pure copper motor with ball bearings, combined with PTC self-regulating heating technology for safe, energy-efficient operation

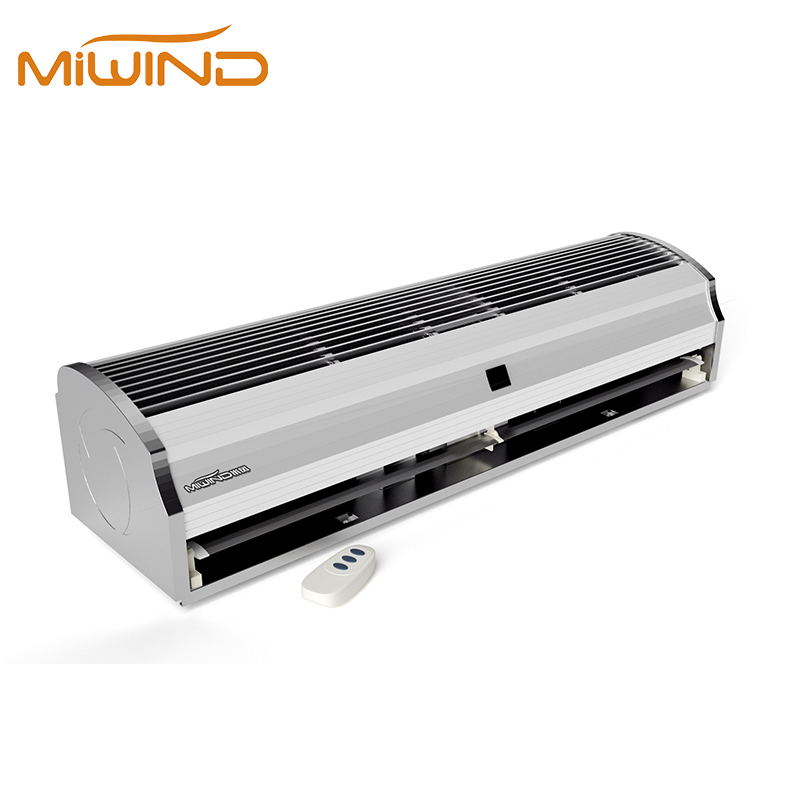

3-year motor warranty, 1-year comprehensive warranty; supplied with remote control, installation video and full accessory kit for quick setup
Request a Quote
Applications
Hotel entrance heating support
Shopping malls

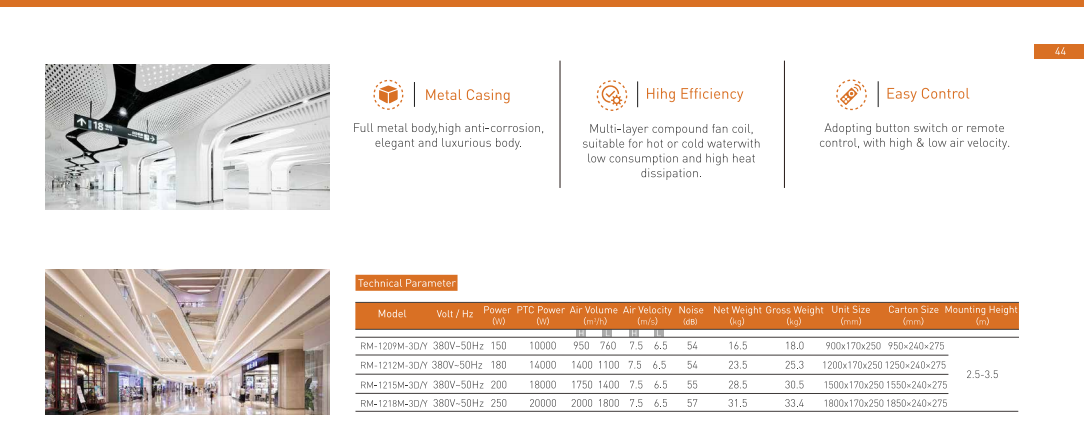

Technical Parameters
| Model | Volt / Hz | Power (W) | PTC Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RM-1209M-3D/Y | 380V-50Hz | 150 | 10000 | 950 | 760 | 7.5 | 6.5 | 54 | 16.5 | 18.0 | 900x170x250 | 950x240x275 | 2.5-3.5 |
| RM-1212M-3D/Y | 380V-50Hz | 180 | 14000 | 1400 | 1100 | 7.5 | 6.5 | 54 | 23.5 | 25.3 | 1200x170x250 | 1250x240x275 | 2.5-3.5 |
| RM-1215M-3D/Y | 380V-50Hz | 200 | 18000 | 1750 | 1400 | 7.5 | 6.5 | 55 | 28.5 | 30.5 | 1500x170x250 | 1550x240x275 | 2.5-3.5 |
| RM-1218M-3D/Y | 380V-50Hz | 250 | 20000 | 2000 | 1800 | 7.5 | 6.5 | 57 | 31.5 | 33.4 | 1800x170x250 | 1850x240x275 | 2.5-3.5 |
