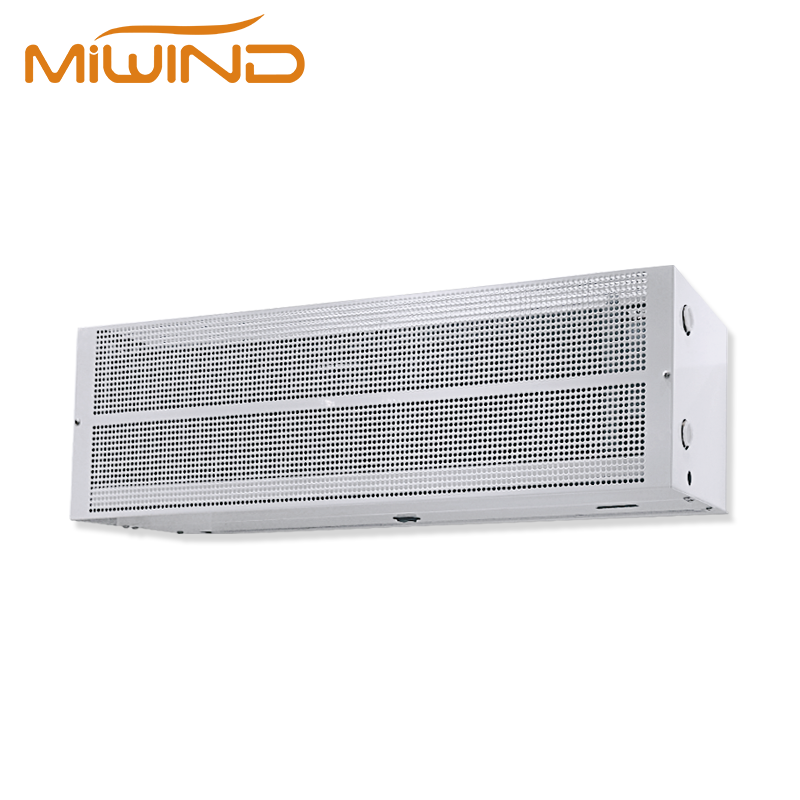

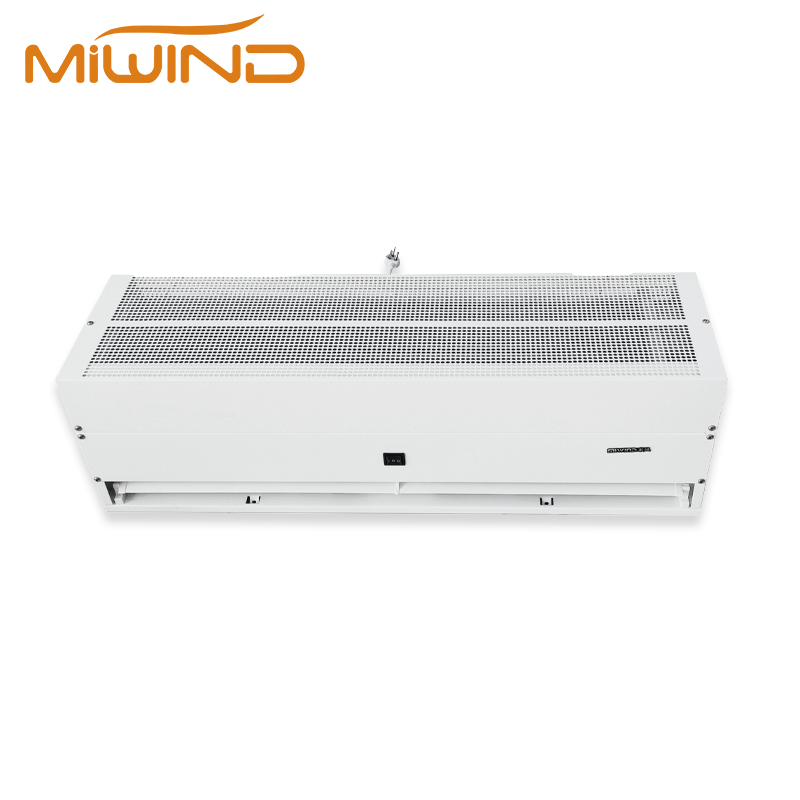

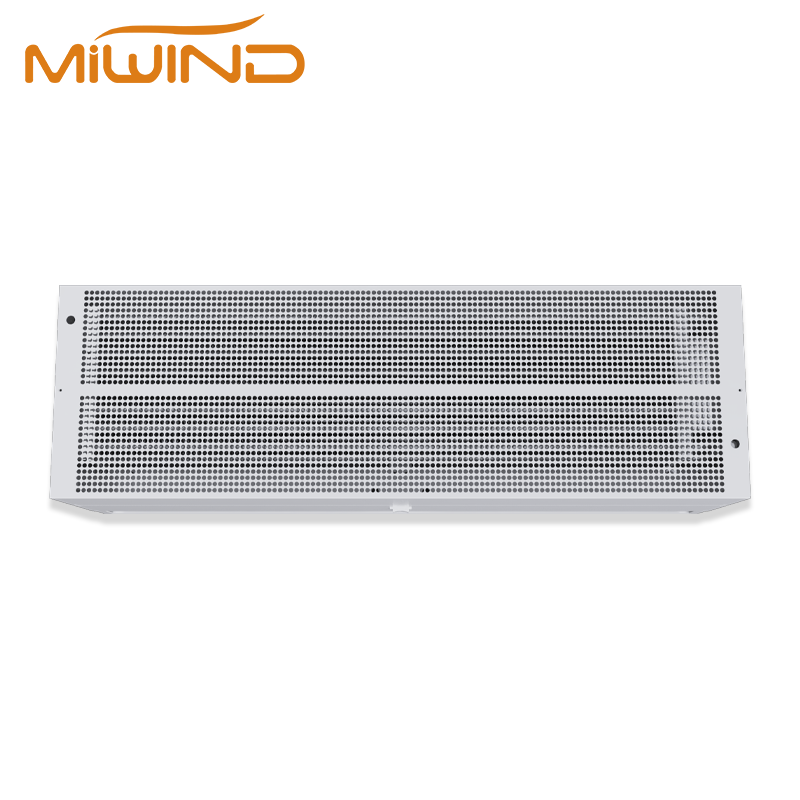

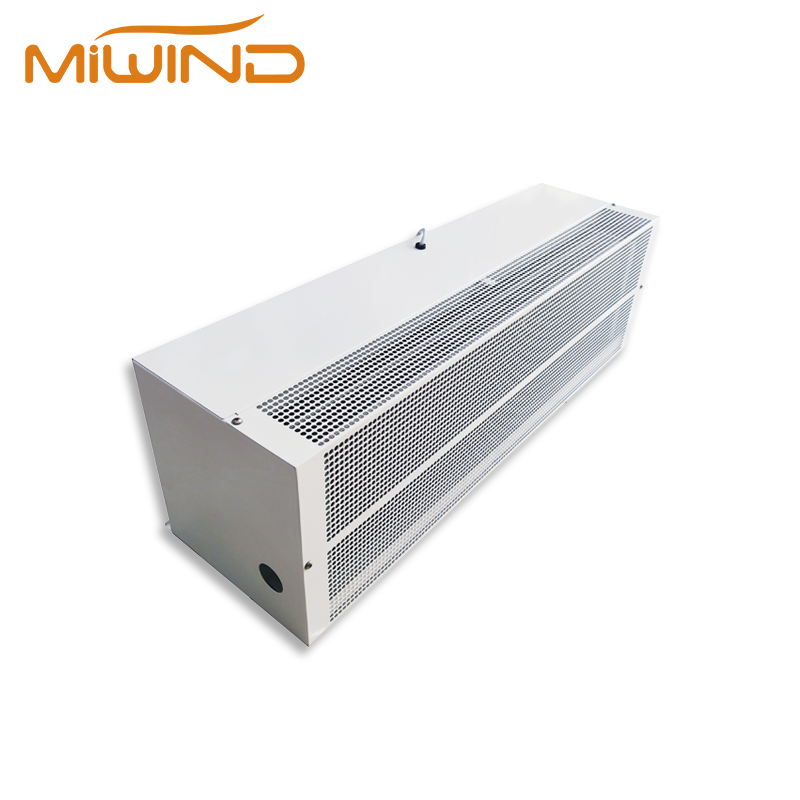

Plumbing Heating Air Curtain
Uses hot water or steam as heat source – more economical than electric heating for facilities with existing boiler systems (hotels, factories, hospitals)
Core Parameters
Water Temperature Range55°C – 100°C (depending on system configuration)
Installation Height2.5 – 3.0 m
Heat Output15.0 – 61.0 kW (depending on model and water temperature)
Available Lengths900 / 1200 / 1500 / 1800 mm
Key Features
Uses hot water or steam as heat source – more economical than electric heating for facilities with existing boiler systems (hotels, factories, hospitals)
Multi-layer compound fan coil design ensures high heat dissipation efficiency with low energy consumption
Full metal galvanized steel housing with powder coating – anti-corrosion and long-lasting; preset left/right water inlet ports for flexible installation
3-year motor warranty, 1-year comprehensive warranty; includes mounting brackets, connection fittings and installation instructions – compatible with standard HVAC piping
Request a Quote
Applications
Factory workshops
Commercial doorways in cold areas

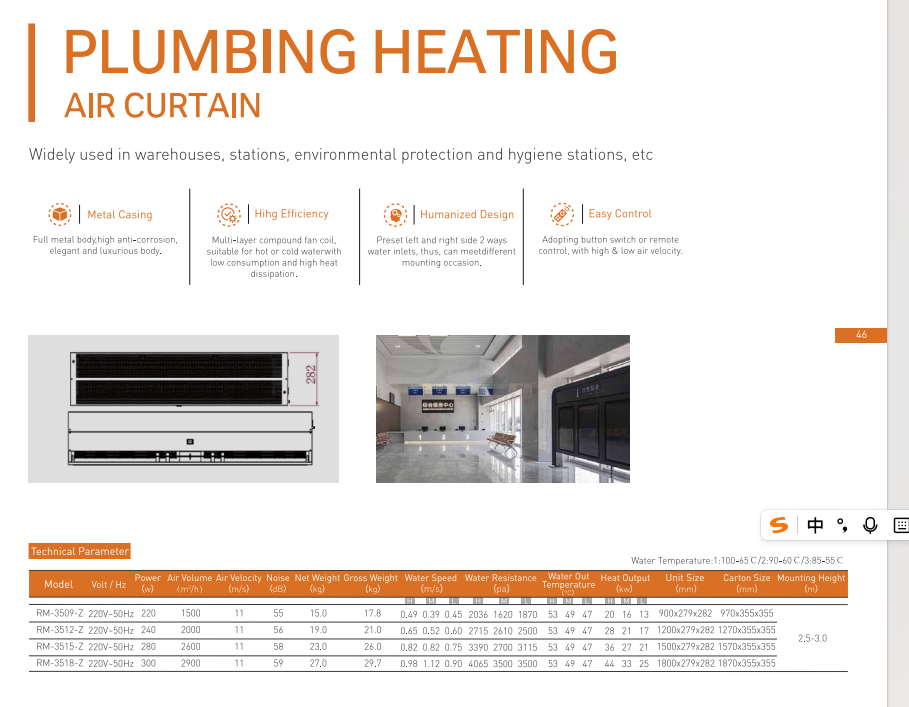

Technical Parameters
| Model | Volt / Hz | Power (W) | Air Volume (m³/h) | Air Velocity (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Water Speed H (m/s) | Water Speed M (m/s) | Water Speed L (m/s) | Water Resistance H (Pa) | Water Resistance M (Pa) | Water Resistance L (Pa) | Water Out Temperature H (°C) | Water Out Temperature M (°C) | Water Out Temperature L (°C) | Heat Output H (kW) | Heat Output M (kW) | Heat Output L (kW) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RM-3509-Z | 220V-50Hz | 220 | 1500 | 11 | 55 | 15.0 | 17.8 | 0.49 | 0.39 | 0.45 | 2036 | 1620 | 1870 | 53 | 49 | 47 | 20 | 16 | 13 | 900x279x282 | 970x355x355 | 2.5-3.0 |
| RM-3512-Z | 220V-50Hz | 240 | 2000 | 11 | 56 | 19.0 | 21.0 | 0.65 | 0.52 | 0.60 | 2715 | 2610 | 2500 | 53 | 49 | 47 | 28 | 21 | 17 | 1200x279x282 | 1270x355x355 | 2.5-3.0 |
| RM-3515-Z | 220V-50Hz | 280 | 2600 | 11 | 58 | 23.0 | 26.0 | 0.82 | 0.82 | 0.75 | 3390 | 2700 | 3115 | 53 | 49 | 47 | 36 | 27 | 21 | 1500x279x282 | 1570x355x355 | 2.5-3.0 |
| RM-3518-Z | 220V-50Hz | 300 | 2900 | 11 | 59 | 27.0 | 29.7 | 0.98 | 1.12 | 0.90 | 4065 | 3500 | 3500 | 53 | 49 | 47 | 44 | 33 | 25 | 1800x279x282 | 1870x355x355 | 2.5-3.0 |
