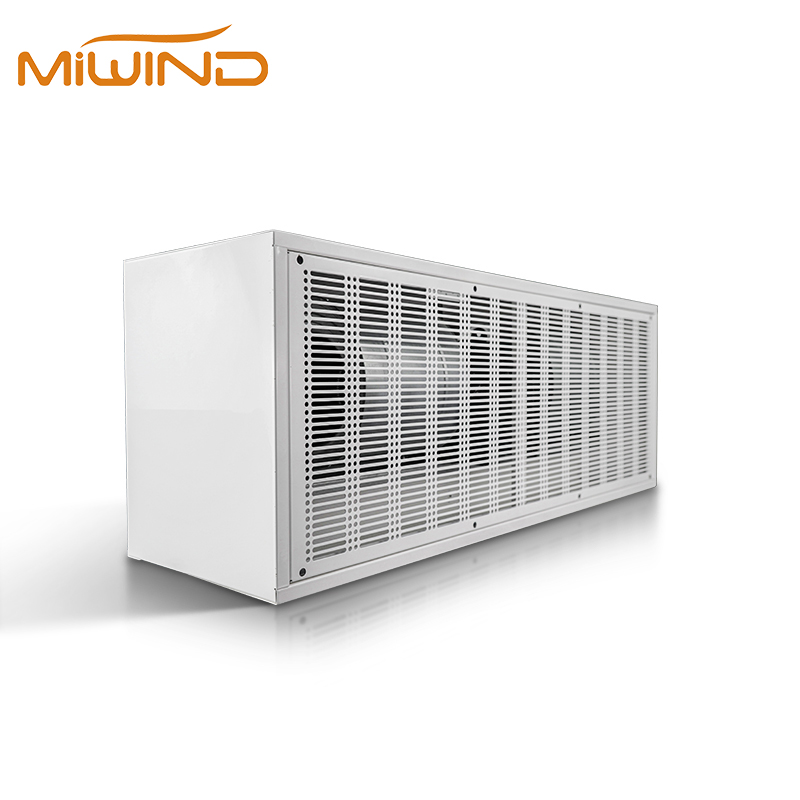

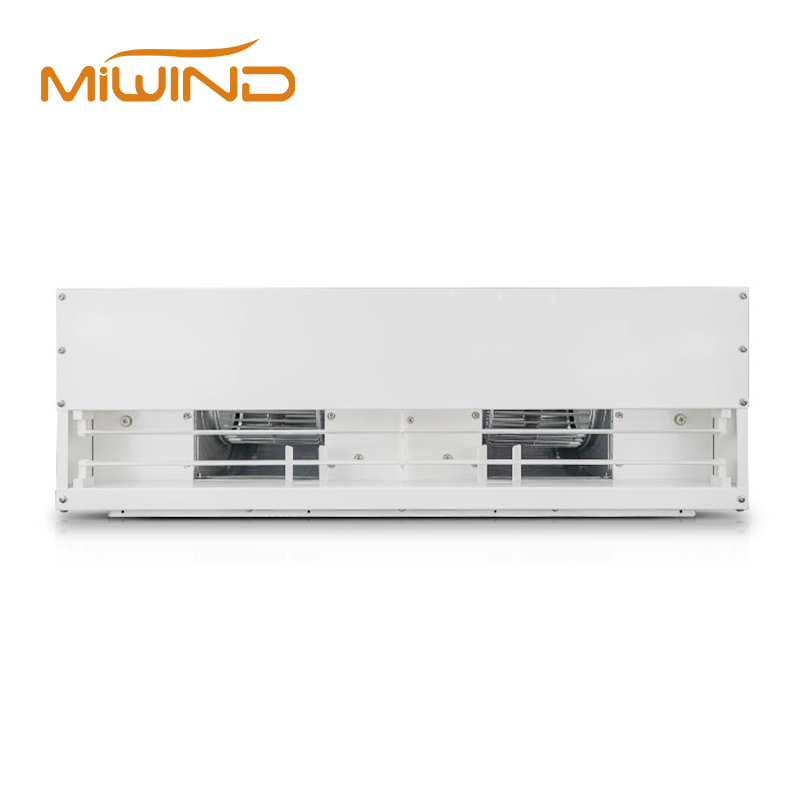

Industrial Series Air Curtain
Ultra-high velocity of 28 m/s designed for industrial door openings of 6-8 meters, effectively blocking air exchange caused by large vehicle passage
Model Industrial Series
Core Parameters
Air Velocity28 m/s
Installation Height6.0 – 8.0 m
Motor Power1350 – 3300 W (depending on length)
Available Lengths900 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Ultra-high velocity of 28 m/s designed for industrial door openings of 6-8 meters, effectively blocking air exchange caused by large vehicle passage

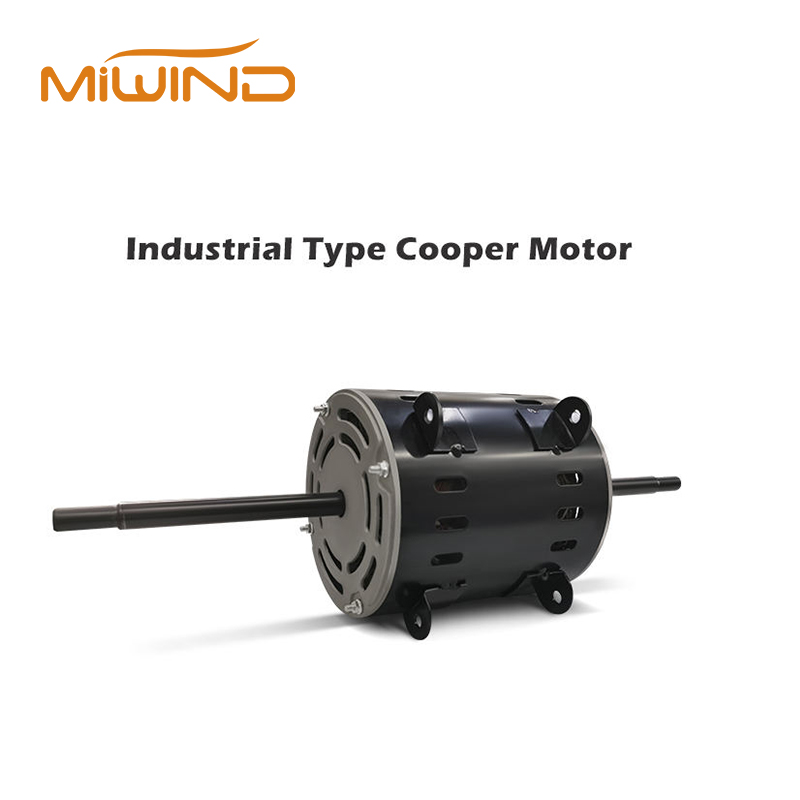

380V three-phase motor with power up to 3300W delivers ample force for continuous operation in factories, warehouses and heavy-duty workshops

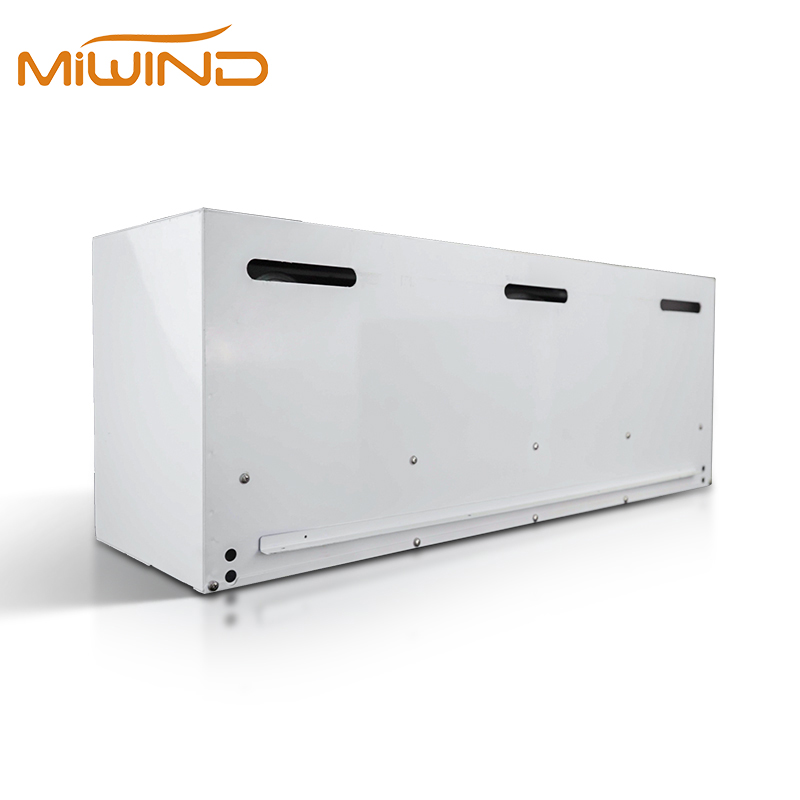

Heavy-duty all-metal galvanized steel housing resists impacts and corrosion, suitable for dusty, oily and harsh industrial environments
3-year motor warranty, 1-year comprehensive warranty; includes installation guide video and heavy-duty mounting kit for easy setup
Request a Quote
Applications
Warehouse doors
Loading areas

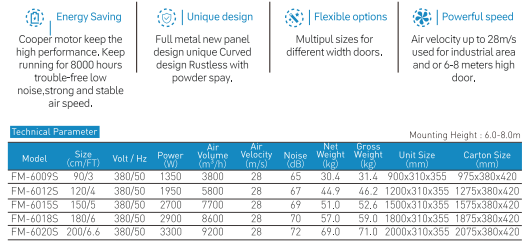

Technical Parameters
| Model | Volt / Hz | Power (W) | Air Volume (m³/h) | Air Velocity (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| FM-6009S | 380V-50Hz | 1350 | 3800 | 28 | 65 | 30.4 | 31.4 | 900x305.5x350 | 975x380x420 | 6.0-8.0 |
| FM-6012S | 380V-50Hz | 1950 | 5800 | 28 | 67 | 44.9 | 46.2 | 1200x305.5x350 | 1275x380x420 | 6.0-8.0 |
| FM-6015S | 380V-50Hz | 2700 | 7700 | 28 | 69 | 51.0 | 52.6 | 1500x305.5x350 | 1575x380x420 | 6.0-8.0 |
| FM-6018S | 380V-50Hz | 2900 | 8600 | 28 | 70 | 57.0 | 59.0 | 1800x305.5x350 | 1875x380x420 | 6.0-8.0 |
| FM-6020S | 380V-50Hz | 3300 | 9200 | 28 | 72 | 69.0 | 71.0 | 2000x305.5x350 | 2075x380x420 | 6.0-8.0 |
