Wall-Mounted Exhaust Fan Series

Name: Wall-Mounted Exhaust Fan Series
SKU: MIWIND-WALL-MOUNTED-EXHAUST-FAN-SERIES

Copper motor with high-quality ball bearings for low noise and stable air volume

Model Wall-Mounted Exhaust Fan Series

Core Parameters

Installation Hole Size198×198 / 248×248 / 298×298 / 348×348 mm Air Volume Range270 – 1100 m³/h (depending on model) Motor Power25 – 45 W (depending on model) Noise Level36 – 45 dB(A)

Key Features

Copper motor with high-quality ball bearings for low noise and stable air volume High-quality ABS housing that never rusts and resists deformation Automatic shut-off louver checks when power is off to help prevent backflow, rain and pests Easy wall-mounted structure with simple cleaning and maintenance

Applications

Workshop exhaust

Kitchen exhaust

Commercial exhaust systems

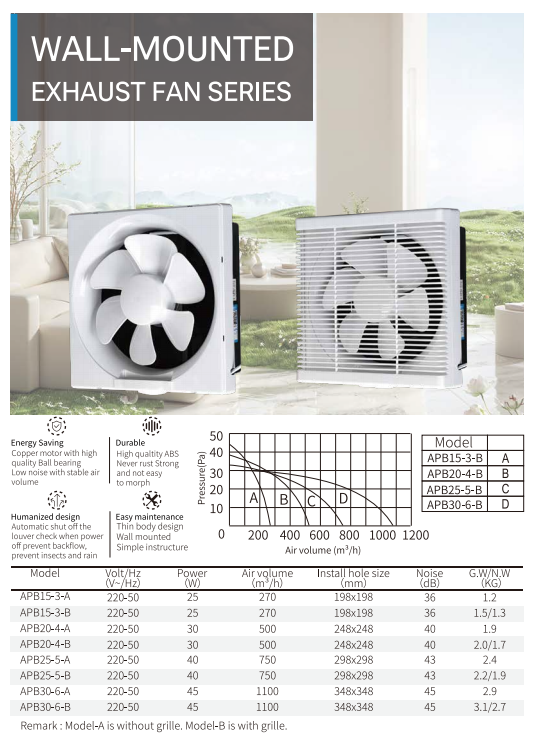

Technical Parameters

Model	Volt / Hz (V~/Hz)	Power (W)	Air Volume (m³/h)	Install Hole Size (mm)	Noise (dB)	G.W / N.W (kg)
APB15-3-A	220-50	25	270	198x198	36	1.2
APB15-3-B	220-50	25	270	198x198	36	1.5/1.3
APB20-4-A	220-50	30	500	248x248	40	1.9
APB20-4-B	220-50	30	500	248x248	40	2.0/1.7
APB25-5-A	220-50	40	750	298x298	43	2.4
APB25-5-B	220-50	40	750	298x298	43	2.2/1.9
APB30-6-A	220-50	45	1100	348x348	45	2.9
APB30-6-B	220-50	45	1100	348x348	45	3.1/2.7
