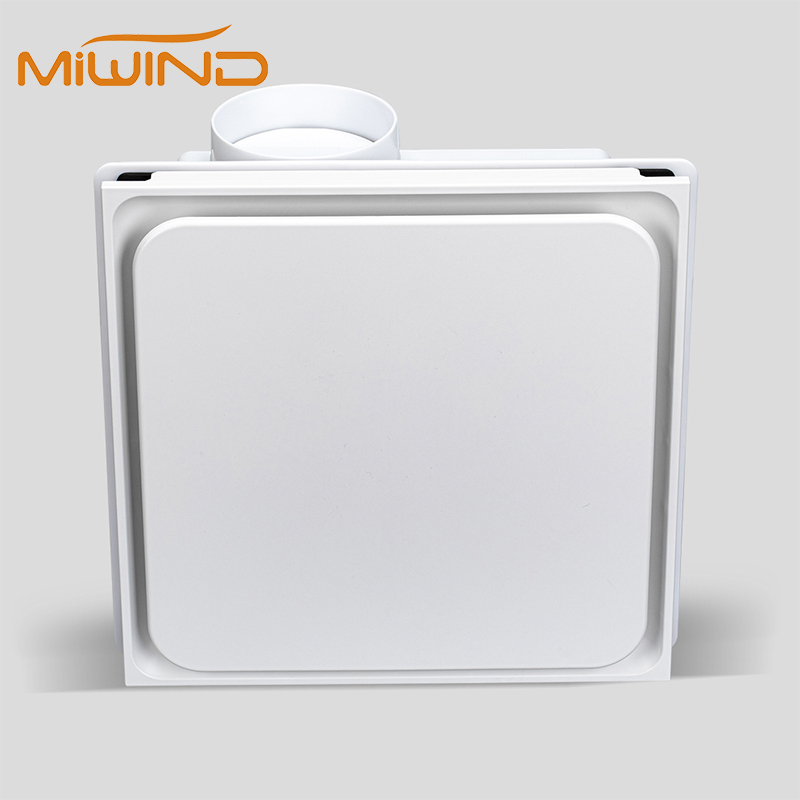

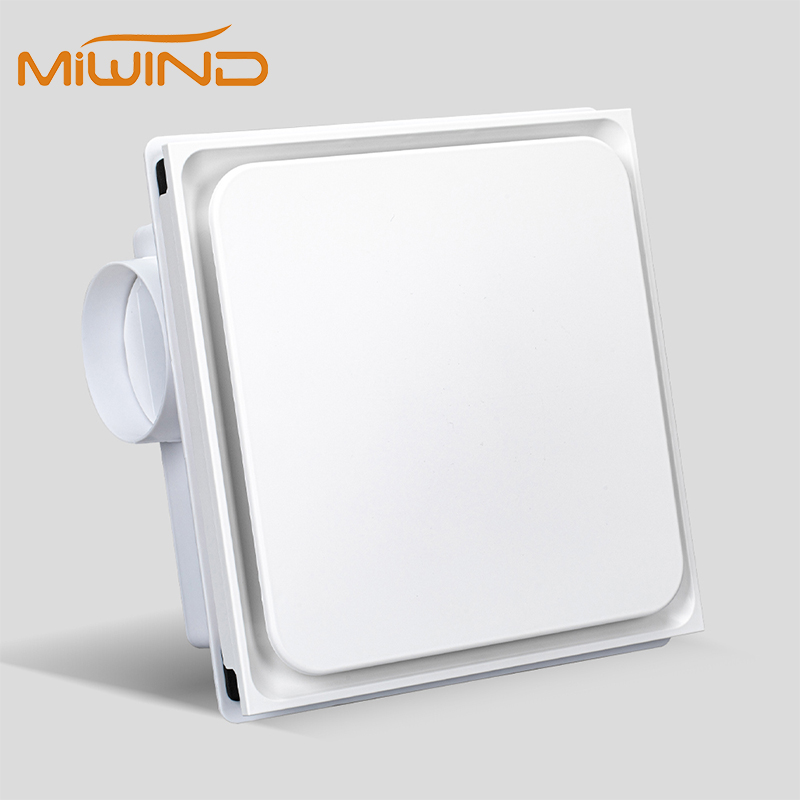

Integrated Exhaust Ceiling Mounted Fan Series
High-quality aluminum alloy panel, compression-resistant, wear-resistant, never rusts
Model Integrated Exhaust Ceiling Mounted Fan Series
Core Parameters
Installation Hole Size300 × 300 mm
Air Volume Range180 – 250 m³/h (depending on model)
Motor Power30 W
Noise Level41 – 42 dB(A)
Key Features
High-quality aluminum alloy panel, compression-resistant, wear-resistant, never rusts
Pure copper motor with high-quality ball bearings for low noise and stable airflow
Ultra-thin body design for ceiling installation, saving space
Simple installation, straightforward structure, easy to maintain
Request a Quote
Applications
Restaurant kitchens
HVAC public areas

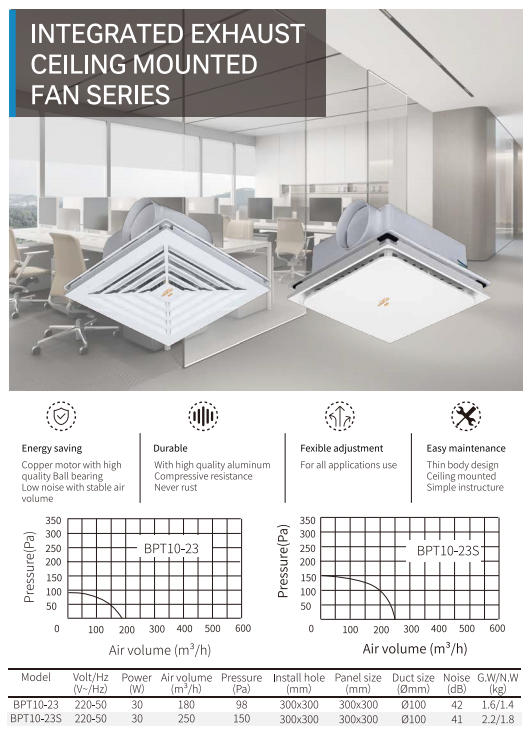

Technical Parameters
| Model | Volt / Hz (V~/Hz) | Power (W) | Air Volume (m³/h) | Pressure (Pa) | Install Hole (mm) | Panel Size (mm) | Duct Size (mm) | Noise (dB) | G.W / N.W (kg) |
|---|---|---|---|---|---|---|---|---|---|
| BPT10-23 | 220-50 | 30 | 180 | 98 | 300x300 | 300x300 | Φ100 | 42 | 1.6/1.4 |
| BPT10-23S | 220-50 | 30 | 250 | 150 | 300x300 | 300x300 | Φ100 | 41 | 2.2/1.8 |
