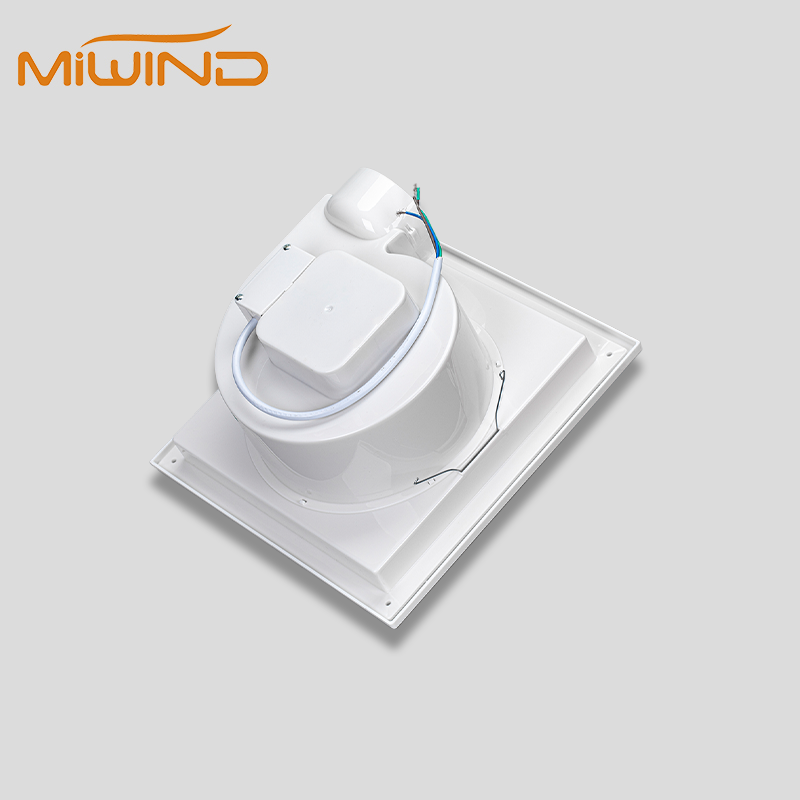

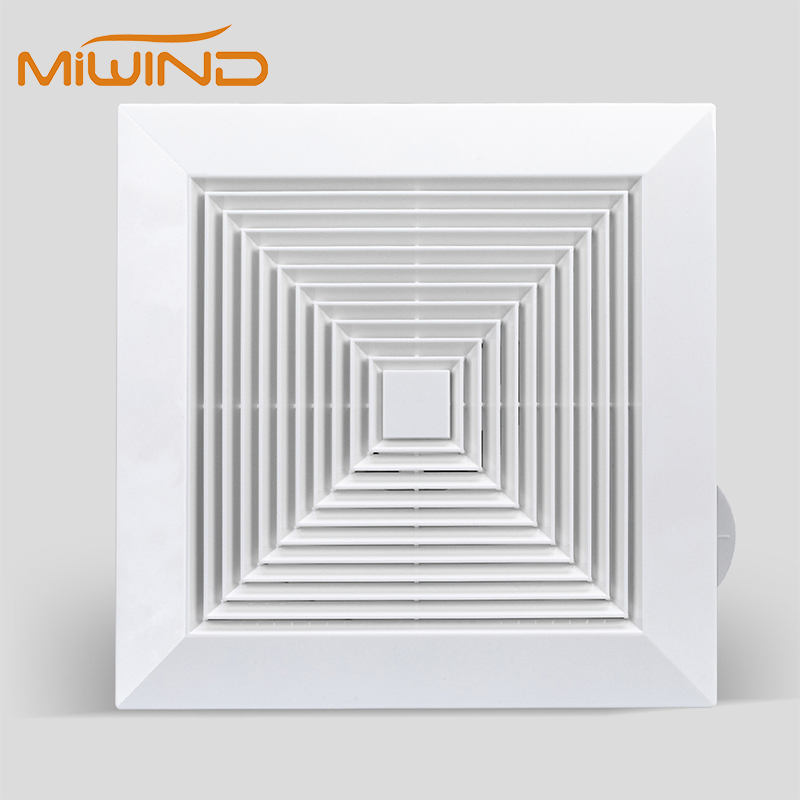

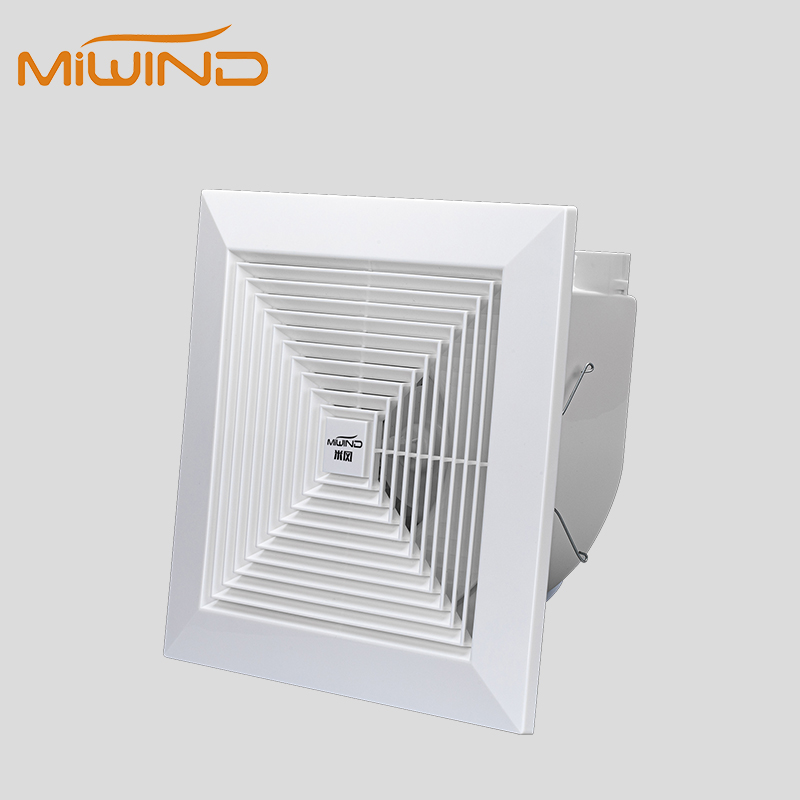

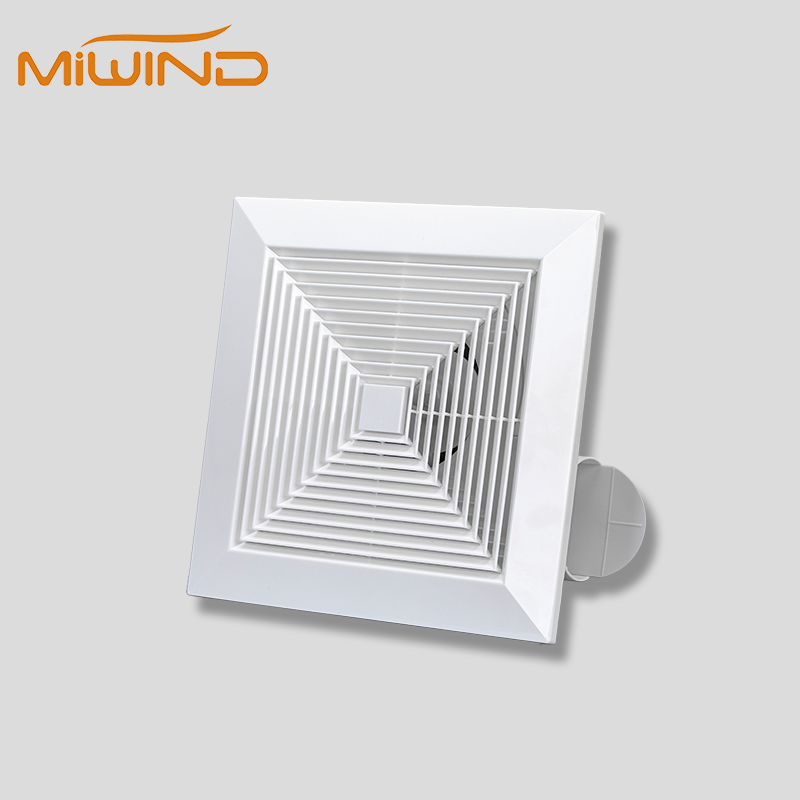

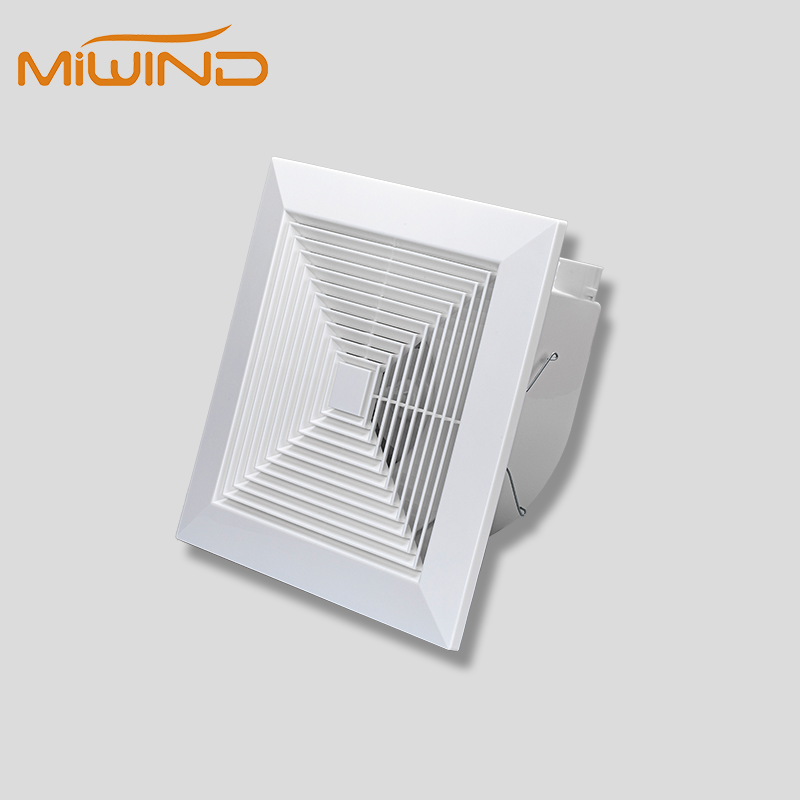

Plastic Exhaust Ceiling Mounted Fan Series
High-quality ABS plastic housing, never rusts, strong and resistant to deformation
Model Plastic Exhaust Ceiling Mounted Fan Series
Core Parameters
Installation Hole SizeΦ95 / Φ148 mm
Air Volume Range120 – 480 m³/h (depending on model)
Motor Power24 – 51 W (depending on model)
Noise Level41 – 47 dB(A)
Key Features
High-quality ABS plastic housing, never rusts, strong and resistant to deformation
Pure copper motor with high-quality ball bearings for low noise and stable airflow
Ultra-thin body design for ceiling installation, saving space
Simple installation, easy to clean and maintain
Request a Quote
Applications
Commercial common zones
Restaurant kitchens
Technical Parameters

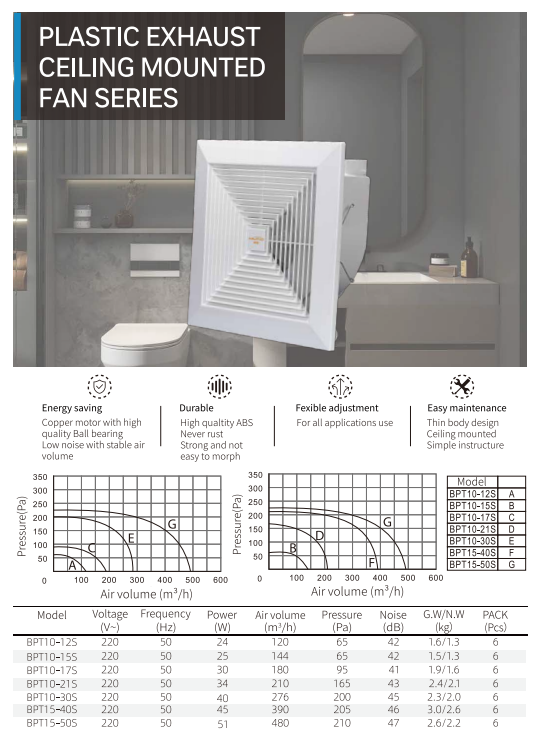

| Model | Voltage (V~) | Frequency (Hz) | Power (W) | Air Volume (m³/h) | Pressure (Pa) | Noise (dB) | G.W / N.W (kg) | Pack (pcs) |
|---|---|---|---|---|---|---|---|---|
| BPT10-12S | 220 | 50 | 24 | 120 | 65 | 42 | 1.6/1.3 | 6 |
| BPT10-15S | 220 | 50 | 25 | 144 | 65 | 42 | 1.5/1.3 | 6 |
| BPT10-17S | 220 | 50 | 30 | 180 | 95 | 41 | 1.9/1.6 | 6 |
| BPT10-21S | 220 | 50 | 34 | 210 | 165 | 43 | 2.4/2.1 | 6 |
| BPT10-30S | 220 | 50 | 40 | 276 | 200 | 45 | 2.3/2.0 | 6 |
| BPT15-40S | 220 | 50 | 45 | 390 | 205 | 46 | 3.0/2.6 | 6 |
| BPT15-50S | 220 | 50 | 51 | 480 | 210 | 47 | 2.6/2.2 | 6 |
