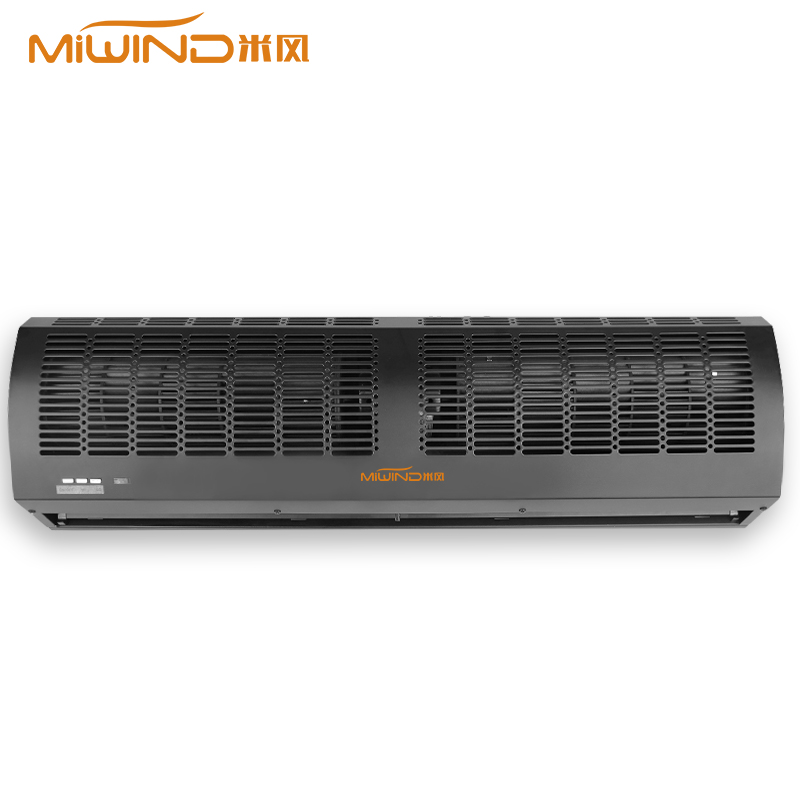

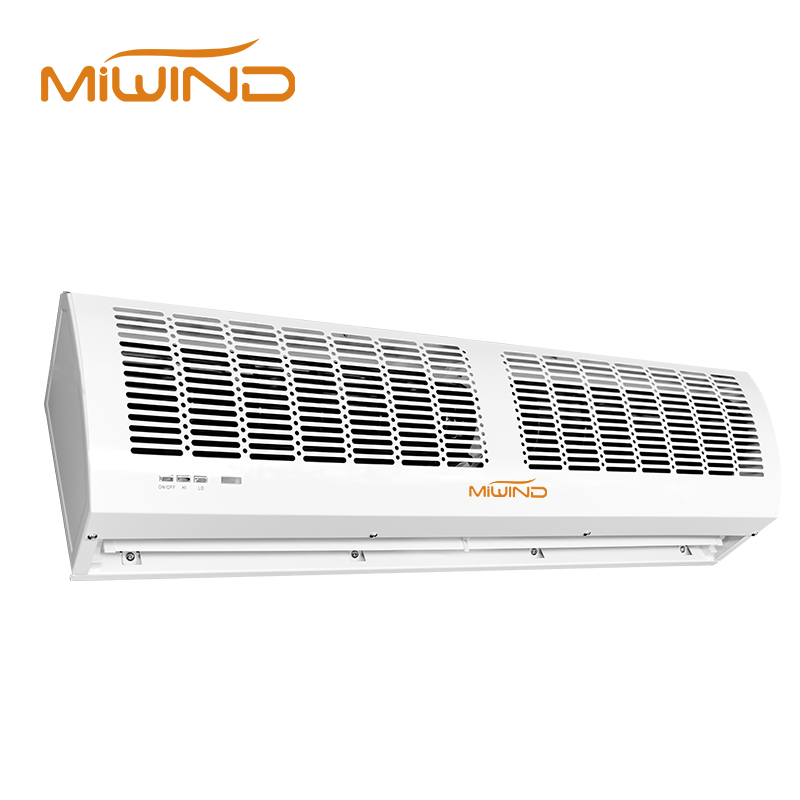

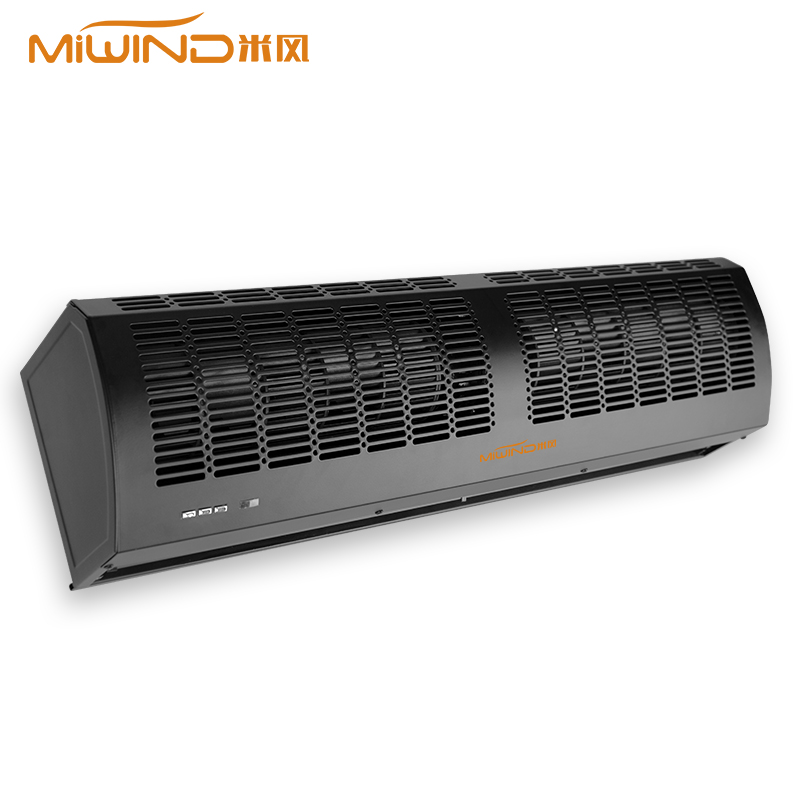

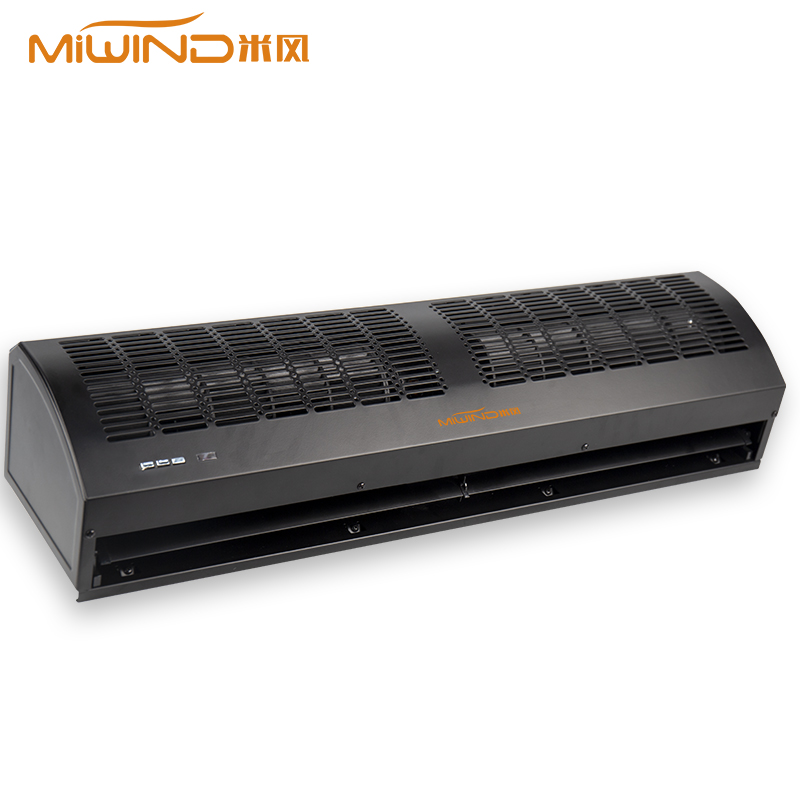

C Series Air Curtain
Higher discharge velocity and stronger barrier effect designed for taller commercial openings and high-traffic entries
Model C Series
Core Parameters
Air Velocity13 / 11 m/s (High / Low)
Installation Height3.0 – 3.5 m
Motor Power228 – 568 W (by model length)
Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Higher discharge velocity and stronger barrier effect designed for taller commercial openings and high-traffic entries
All-metal housing with electrostatic/powder-coated surface for improved corrosion resistance and professional appearance
Powerful copper-wire motor & optimized fan wheel maintain stable curtain even under challenging cross-drafts
Clean, curved-front metal profile fits retail main doors, mall entrances and public building lobbies where aesthetics matter
Request a Quote
Applications
Supermarkets
Atrium entrances

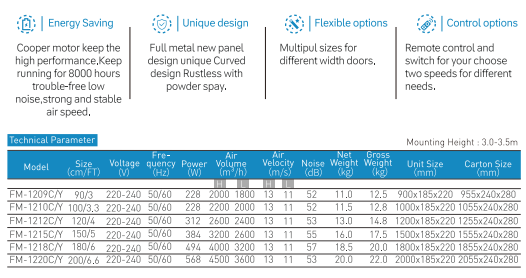

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-1209C | 220-240 | 50/60 | 228 | 2000 | 1800 | 13 | 11 | 52 | 11.0 | 12.5 | 900x185x220 | 950x240x280 | 3.0-3.5 |
| FM-1210C | 220-240 | 50/60 | 228 | 2200 | 2000 | 13 | 11 | 52 | 11.5 | 12.8 | 1000x185x220 | 1050x240x280 | 3.0-3.5 |
| FM-1212C | 220-240 | 50/60 | 312 | 2600 | 2400 | 13 | 11 | 53 | 13.0 | 14.8 | 1200x185x220 | 1250x240x280 | 3.0-3.5 |
| FM-1215C | 220-240 | 50/60 | 384 | 3200 | 2600 | 13 | 11 | 55 | 16.0 | 17.5 | 1500x185x220 | 1550x240x280 | 3.0-3.5 |
| FM-1218C | 220-240 | 50/60 | 494 | 4000 | 3200 | 13 | 11 | 57 | 18.5 | 20.0 | 1800x185x220 | 1850x240x280 | 3.0-3.5 |
| FM-1220C | 220-240 | 50/60 | 568 | 4500 | 3600 | 13 | 11 | 53 | 20.0 | 22.0 | 2000x185x220 | 2050x240x280 | 3.0-3.5 |
