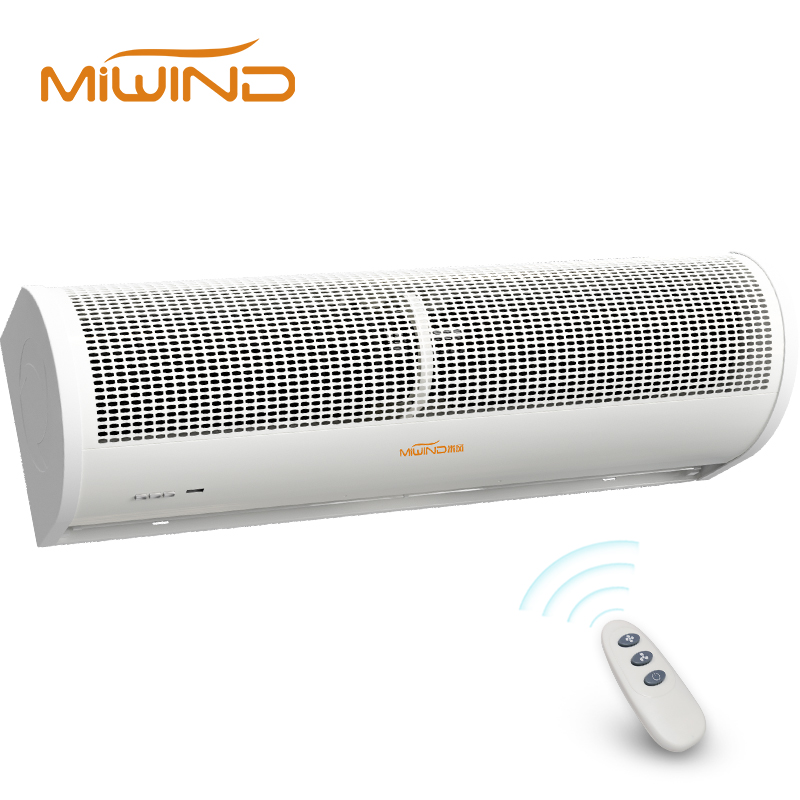

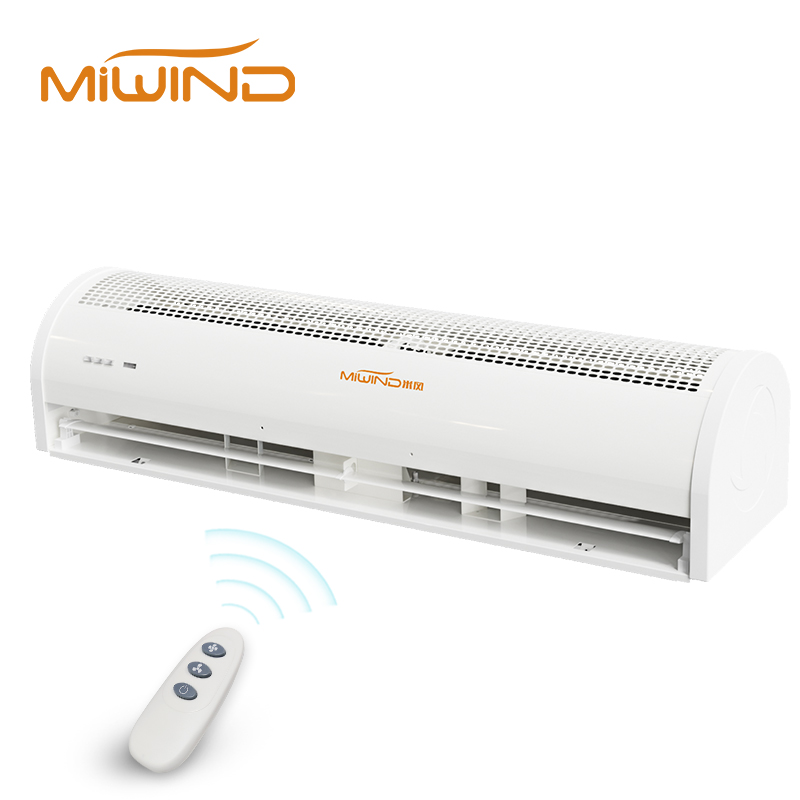

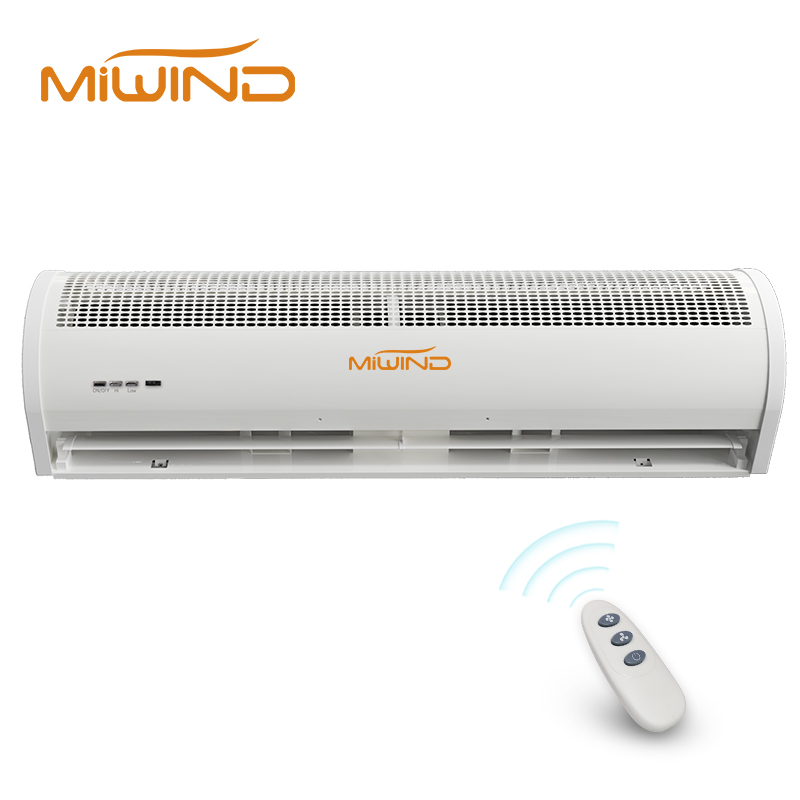

Pro D Series Air Curtain
Upgraded, professionally positioned variant for projects that need higher mounting heights without jumping to full centrifugal spec
Model Pro D Series
Core Parameters
Air Velocity13 / 11 m/s (High / Low)
Installation Height3.0 – 3.5 m
Motor Power140 – 260 W (by model length)
Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Upgraded, professionally positioned variant for projects that need higher mounting heights without jumping to full centrifugal spec
Electrostatically painted metal housing for superior corrosion protection and consistent visual quality on public-facing entrances
High-efficiency copper motor platform with proven run-time reliability for continuous operation schedules
Full width coverage with stable air sheet helps maintain HVAC setpoint and reduce dust/insect ingress at busy main doors
Request a Quote
Applications
Industrial doors
Shopping malls

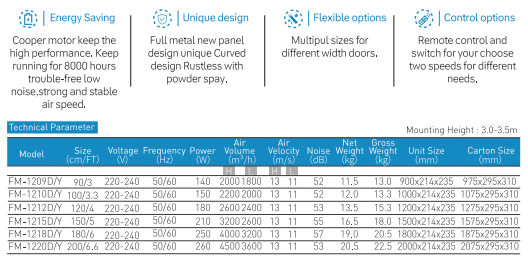

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-1209D | 220-240 | 50/60 | 140 | 2000 | 1800 | 13 | 11 | 52 | 11.5 | 13.0 | 900x214x235 | 975x295x310 | 3.0-3.5 |
| FM-1210D | 220-240 | 50/60 | 150 | 2200 | 2000 | 13 | 11 | 52 | 12.0 | 13.3 | 1000x214x235 | 1075x295x310 | 3.0-3.5 |
| FM-1212D | 220-240 | 50/60 | 180 | 2600 | 2400 | 13 | 11 | 53 | 13.5 | 15.3 | 1200x214x235 | 1275x295x310 | 3.0-3.5 |
| FM-1215D | 220-240 | 50/60 | 210 | 3200 | 2600 | 13 | 11 | 55 | 16.5 | 18.0 | 1500x214x235 | 1575x295x310 | 3.0-3.5 |
| FM-1218D | 220-240 | 50/60 | 250 | 4000 | 3200 | 13 | 11 | 57 | 19.0 | 20.5 | 1800x214x235 | 1875x295x310 | 3.0-3.5 |
| FM-1220D | 220-240 | 50/60 | 260 | 4500 | 3600 | 13 | 11 | 53 | 20.5 | 22.5 | 2000x214x235 | 2075x295x310 | 3.0-3.5 |
