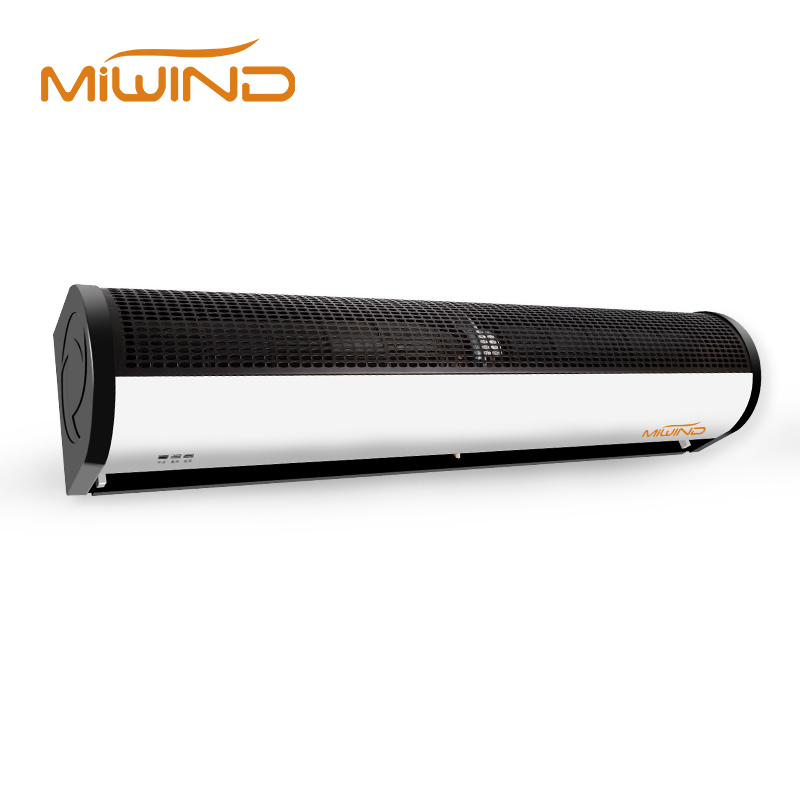

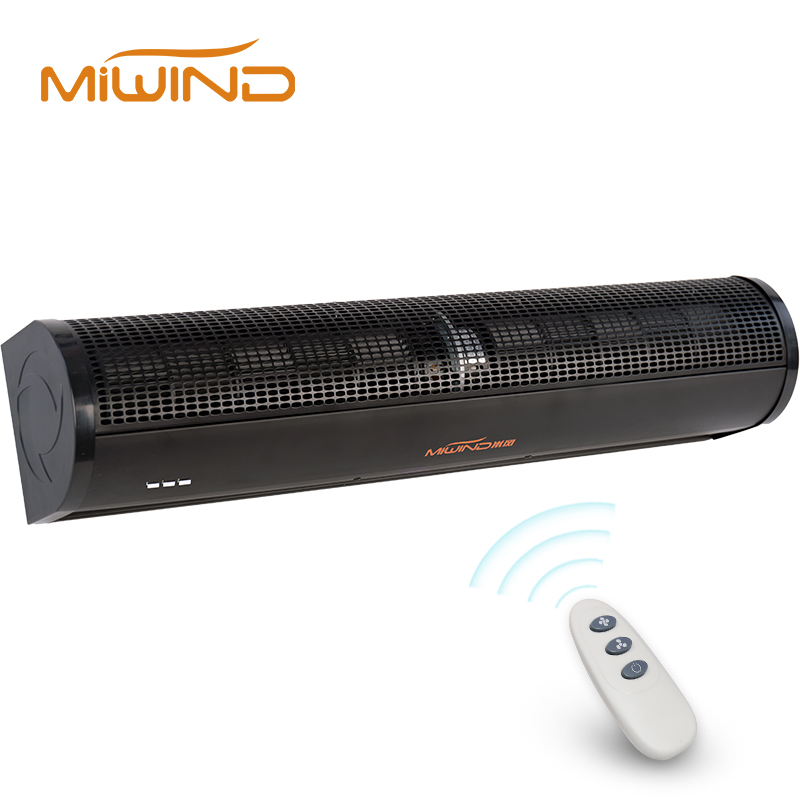

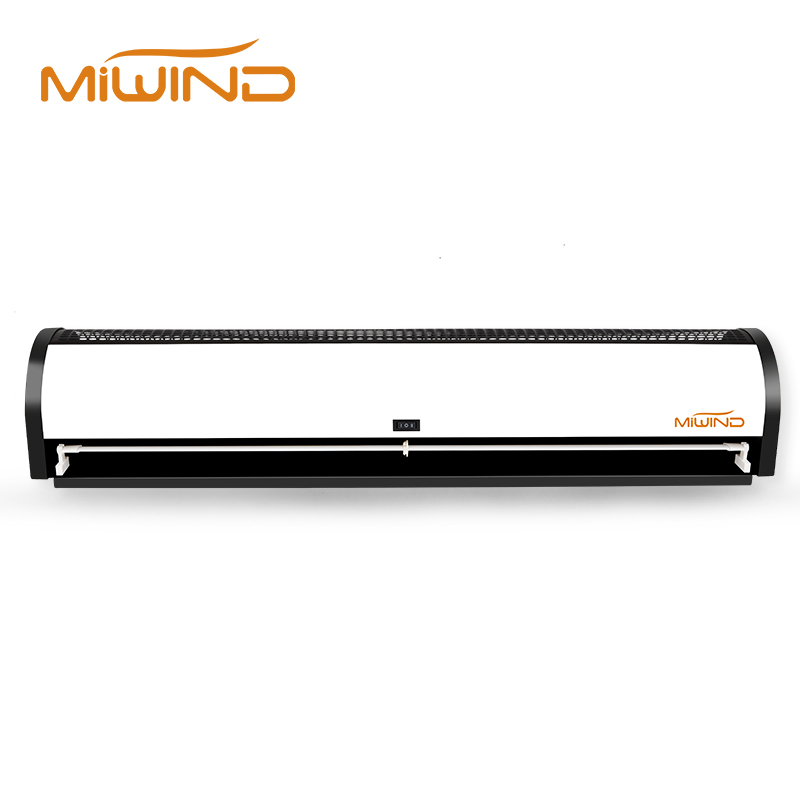

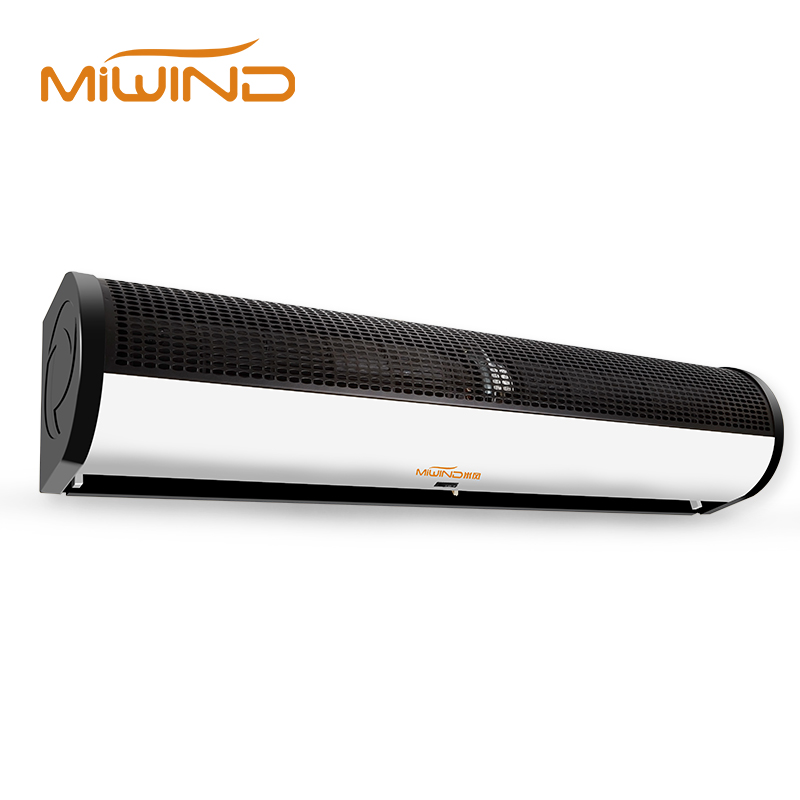

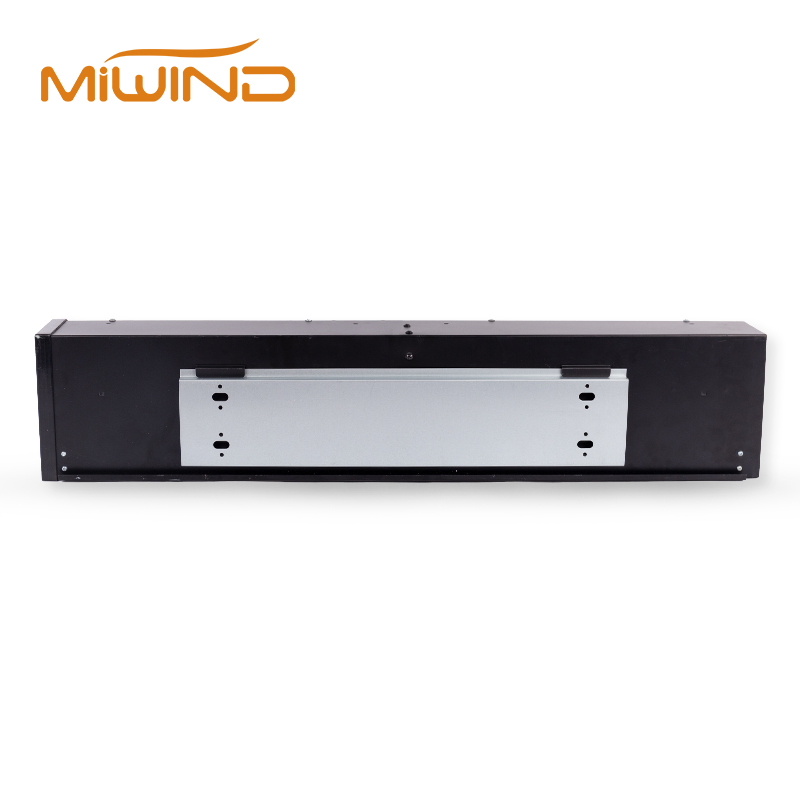

D Series Air Curtain
Covers both standard commercial heights and taller industrial doorways with one series family—easier specification for contractors and projects
Model D Series
Core Parameters
Air Velocity13 / 11 m/s (High / Low) for 1200-class models; up to 17/14 m/s or 21/18 m/s on centrifugal 3500/4000-class variants
Installation Height3.0 – 5.0 m (model dependent)
Motor Power140 – 1036 W (by model/sub-series)
Available Lengths900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Key Features
Covers both standard commercial heights and taller industrial doorways with one series family—easier specification for contractors and projects
Centrifugal-derived high-pressure airflow keeps the curtain effective even with strong outdoor wind or negative pressure
100% copper motor with ball-bearing system for long operating life and lower maintenance risk
Robust curved metal panel with powder-spray coating built for tough job sites, loading docks and cold-chain interfaces
Request a Quote
Applications
Industrial doors
Warehouse doors

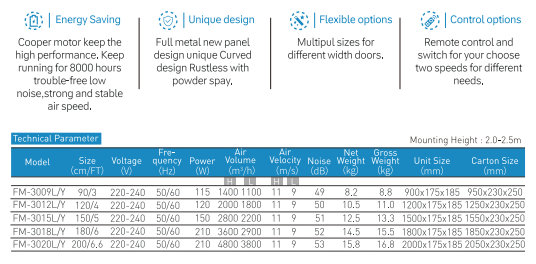

Technical Parameters
| Model | Voltage (V) | Frequency (Hz) | Power (W) | Air Volume H (m³/h) | Air Volume L (m³/h) | Air Velocity H (m/s) | Air Velocity L (m/s) | Noise (dB) | Net Weight (kg) | Gross Weight (kg) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-3009L/Y | 220-240 | 50/60 | 115 | 1400 | 1100 | 11 | 9 | 49 | 8.2 | 8.8 | 900x175x185 | 950x230x250 | 2.5-3.0 |
| FM-3012L/Y | 220-240 | 50/60 | 120 | 2000 | 1800 | 11 | 9 | 50 | 10.5 | 11.0 | 1200x175x185 | 1250x230x250 | 2.5-3.0 |
| FM-3015L/Y | 220-240 | 50/60 | 150 | 2800 | 2200 | 11 | 9 | 51 | 12.5 | 13.3 | 1500x175x185 | 1550x230x250 | 2.5-3.0 |
| FM-3018L/Y | 220-240 | 50/60 | 210 | 3600 | 2900 | 11 | 9 | 52 | 14.5 | 15.5 | 1800x175x185 | 1850x230x250 | 2.5-3.0 |
| FM-3020L/Y | 220-240 | 50/60 | 210 | 4800 | 3800 | 11 | 9 | 53 | 15.8 | 16.8 | 2000x175x185 | 2050x230x250 | 2.5-3.0 |
